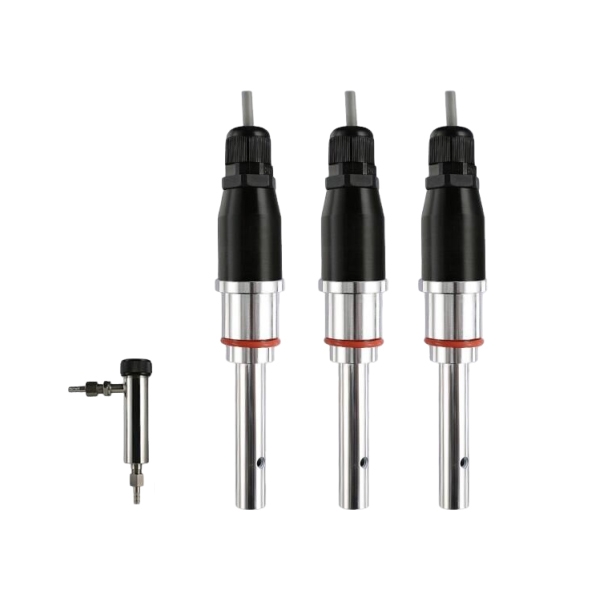

Conductivity Probe, 0~2000μS/cm

Conductivity probe is built with a titanium alloy dual cylindrical design and offers reliable conductivity measurement with strong anti-interference, high precision, and stable performance. It has an electrode constant of K=1.0, supports a measuring range of 02000μS/cm, and includes NTC10K temperature compensation. The ec probe operates with an AC 90V260V power supply and provides resistance to fouling and corrosion, suitable for all liquids except hydrofluoric acid. With customizable electrode threads (NPT 3/4 or NPT 1/2) and cable options, it is widely applied in power plants, water treatment, and other industrial monitoring fields.

Feature

• Anti-interference: SUCH water probe resists signal interference to ensure reliable conductivity measurement.
• High Precision: Provides accurate readings within the 0~2000μS/cm range.
• Good Stability: Ensures consistent performance in continuous monitoring applications.
• Customizable: Supports customized options such as cable length and specifications.
• Withstand Voltage: Designed to handle pressure and voltage conditions in practical environments.
• Anti-pollution: Resistant to fouling, suitable for long-term use in water quality monitoring.
• Structure: Uses a dual cylindrical design with titanium alloy material.
• Thread Options: Electrode threads can be customized (NPT 3/4 or NPT 1/2).
• Corrosion Resistance: The conductive surface resists all liquids except hydrofluoric acid.

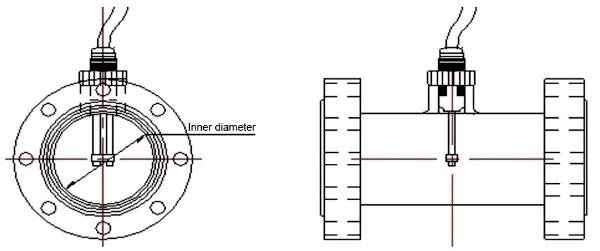

Installation
