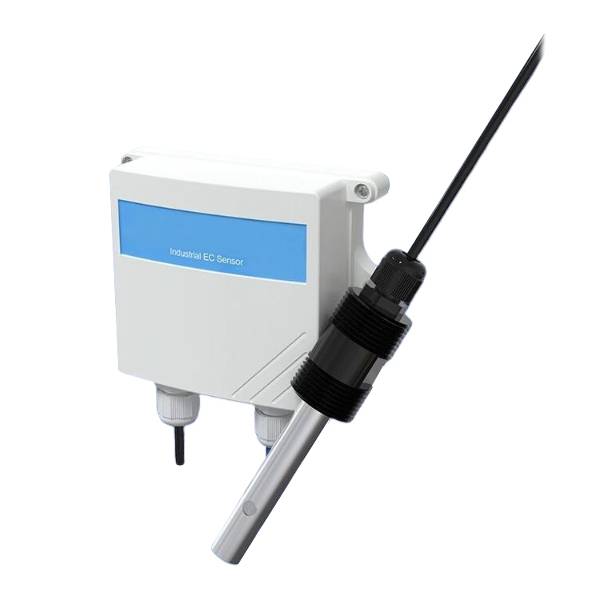

Analog Electrical Conductivity Sensor, 4-20mA/0-5V/0-10V

SKU: SUCH-EC-ANA

$199.97

● Electrode constant K=0.01/0.1/1/10 ● Output signal 4-20mA/0-5V/0-10V ● Power supply DC 10~30V ● Power consumption 0.4W

Output Signal *
Electrode Constant *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Analog electrical conductivity sensor enables continuous water quality monitoring with stable and accurate performance. It has electrode constants of K=0.01/0.1/1/10, supports analog output options of 4-20mA, 0-5V, and 0-10V, and operates with a DC 10~30V power supply at 0.4W consumption. With IP65 housing for dustproof and waterproof protection, SUCH conductivity sensor is suitable for outdoor use in rain or snow and is widely applied in surface water, aquaculture, sewage treatment, environmental protection, food, pharmaceuticals, and tap water monitoring.

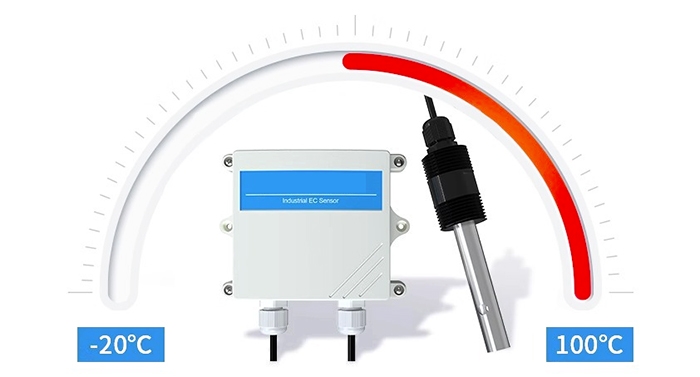

Feature

Analog electrical conductivity sensor feature

IP65 Protection: The housing is rated IP65, suitable for outdoor rain and snow environments with dustproof and waterproof performance.
Stable Signal: Provides strong anti-interference ability, good repeatability, and high measurement accuracy.
Multiple Applications: Widely used for continuous monitoring of conductivity in surface water, aquaculture, sewage treatment, environmental protection, pharmaceuticals, food, and tap water.
Analog Output Options: Supports 4-20mA, 0-5V, and 0-10V output signals for flexible integration with different systems.

Dimension

Stainless steel electrode with top and bottom 3/4 threads for easy installation.

Analog electrical conductivity sensor size

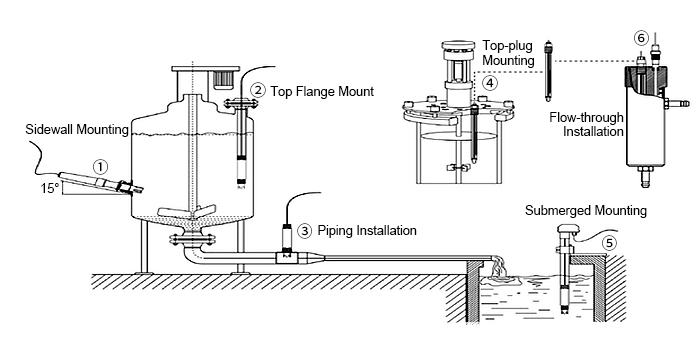

Electrode Installation

Analog electrical conductivity sensor installation

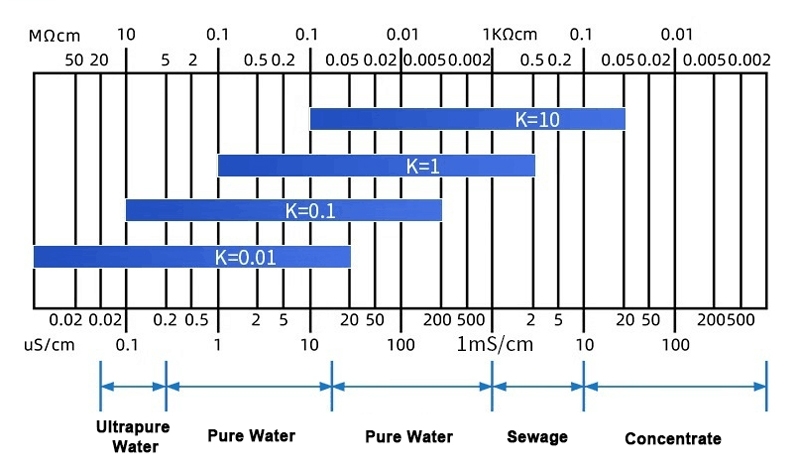

Conductivity Electrode Selection Reference Table

Analog electrical conductivity sensor selection reference table

Specs

Output Signal	4-20mA/0-5V/0-10V (optional)
Conductivity Measuring Range	K=0.01: 0.01~20 μS/cm; Resolution: 0.001 μS/cm
	K=0.1: 0.1~200 μS/cm; Resolution: 0.01 μS/cm
	K=1: 1~2000 μS/cm; Resolution: 0.1 μS/cm
	K=10: 10~20000 μS/cm; Resolution: 1 μS/cm
Power Supply	DC 10~30V
Electrode Material	Stainless Steel
Power Consumption	0.4W
Conductivity Accuracy	±1%FS
Temperature Measuring Range	-20~100℃; Resolution: 0.1℃
Temperature Accuracy	±0.5℃
Temperature Compensation Range	-20~100℃ (default 25℃)
Temperature Compensation Coefficient	Default 0.02
Salinity Measuring Range	K=0.01: 0~10 ppm
	K=0.1: 0~100 ppm
	K=1: 0~1000 ppm
	K=10: 0~11476 ppm
TDS Measuring Range	K=0.01: 0~10 ppm
	K=0.1: 0~100 ppm
	K=1: 0~1100 ppm
	K=10: 0~13400 ppm
Transmitter Operating Temperature & Humidity	-20℃~+80℃, 0%RH~95%RH (non-condensing)
Electrode Cable Length	Default 5m (customizable 10m, 15m, 20m)

Application

Aquaculture

Sewage Monitoring

Environment Protection

FAQ

Q1: How should the analog electrical conductivity sensor be maintained? ❯

Clean the electrode regularly to prevent fouling or scaling, especially when used in sewage or wastewater environments.

Q2: Can the conductivity sensor be submerged directly in liquid? ❯

Yes, it can be immersed as long as installation guidelines are followed and the housing/IP rating is respected.

Q3: Can the sensor detect very low conductivity? ❯

Yes, depending on the electrode constant, it can measure a wide range from low-conductivity pure water to higher-conductivity industrial solutions.
