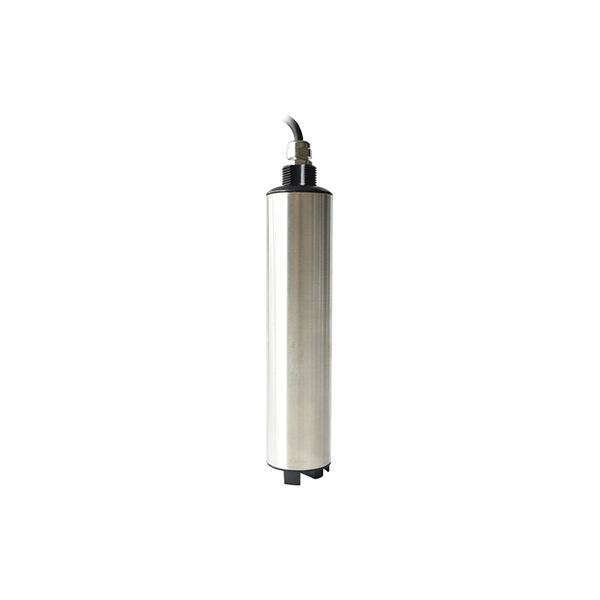

Industrial Water Turbidity Sensor, 0~4000 NTU

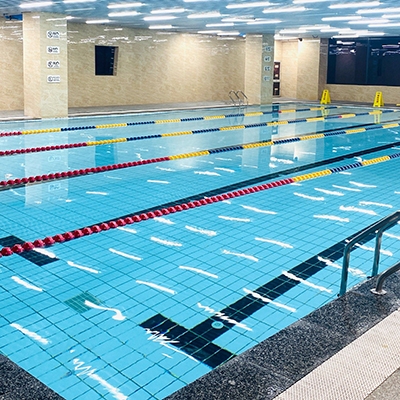

Water turbidity sensor is suitable for various water quality monitoring scenarios, including wastewater treatment, swimming pools, water plant laboratories, and aquaculture, enabling stable turbidity detection. SUCH turbidity sensor features a submersible installation method and an automatic cleaning function, effectively reducing contaminant buildup and lowering maintenance frequency. The sensor has a measurement range of 0~4000 NTU (customizable), an accuracy of ±2%FS, and repeatability better than ±1.0%. It supports an RS485 communication interface, has an IP68 waterproof rating, and is easy to integrate into various water quality monitoring and automation systems.

Feature

• It boasts a high degree of intelligence, good stability, and strong anti-interference capabilities.
• It incorporates a built-in microprocessor chip for integrated measurement and debugging.

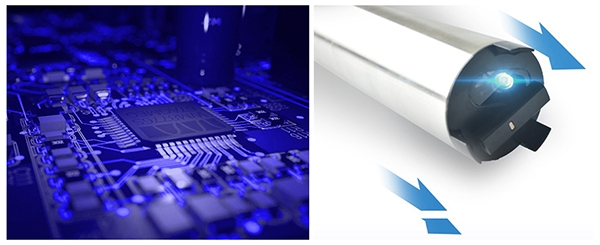

• Automatic cleaning function: Utilizing a high-precision optical glass window, it ensures accurate measurement and allows setting cleaning cycles from 1 to 30,000 minutes, with the brush making four round trips per cleaning cycle.
• No additional instruments are required; it can be directly connected to PLCs and other devices with RS485 interfaces.

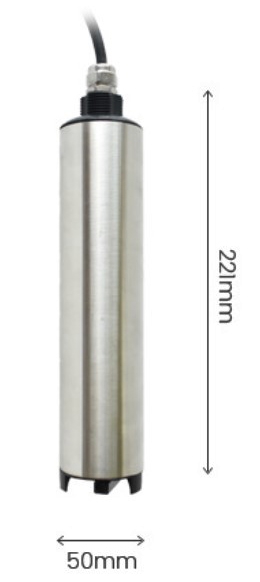

Dimension (Unit: mm)
