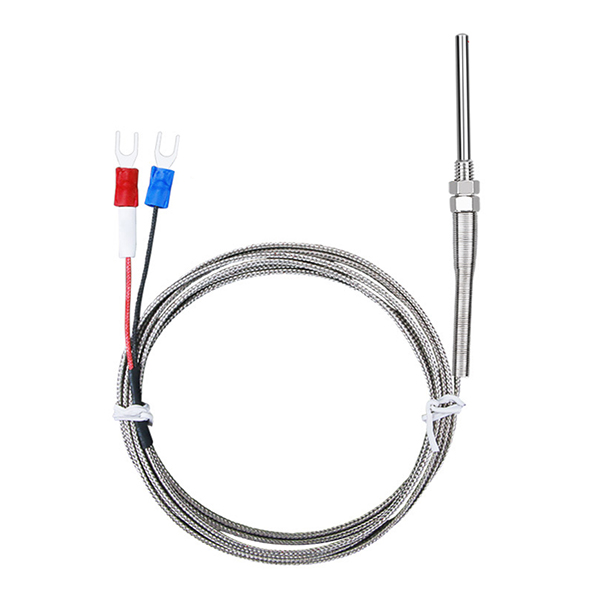

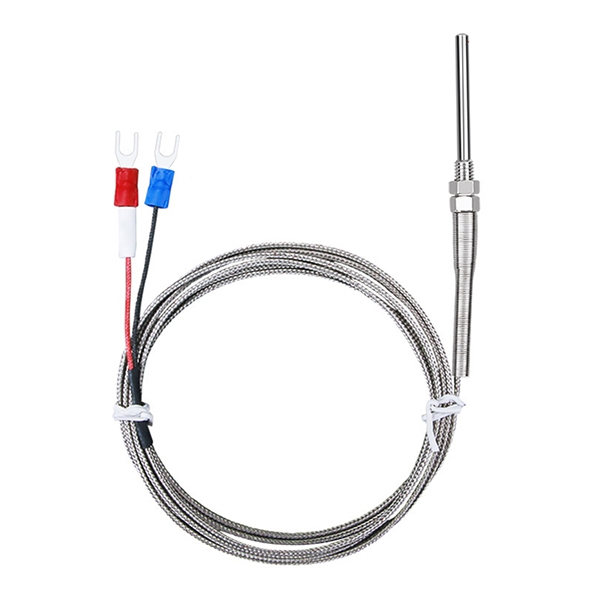

K Type Thermocouple Probe, 0~400℃

The SUCH K type thermocouple probe offers exceptional performance with a wide temperature measurement range, fast dynamic response, and stable operation. It is equipped with a dual-core wire, ensuring excellent high-temperature resistance, oxidation resistance, and superior signal transmission. The probe features a high-quality sensing head, which guarantees durability in harsh environments. Its exquisite craftsmanship not only ensures functionality but also gives the probe an aesthetically pleasing design. This thermocouple probe is perfect for a variety of demanding applications that require precision and reliability.

Feature

• The SUCH thermocouple has a wide temperature measurement range, fast dynamic response, and stable performance.
• It is equipped with a dual-core high-temperature resistant wire made of selected high-quality materials, offering excellent high-temperature resistance, oxidation resistance, and strong signal transmission performance.

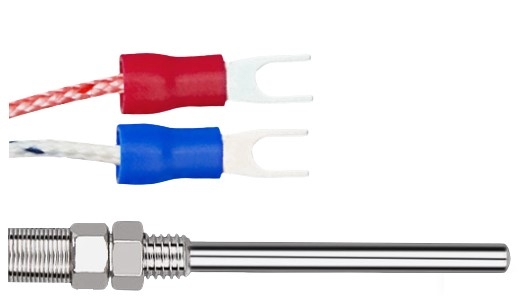

• The probe is equipped with a high-quality sensing head, precision welding, and is waterproof, oil-resistant, and corrosion-resistant.
• The craftsmanship is exquisite and aesthetically pleasing.
• The terminal is high-temperature resistant, oxidation-resistant, and securely crimped to prevent detachment.

Note: In practical applications, the sensor must be compatible with the temperature instrument. If the input type of the temperature instrument is K, the temperature sensor must also be type K; otherwise, the temperature will not be displayed correctly.

Dimension (Unit:mm)

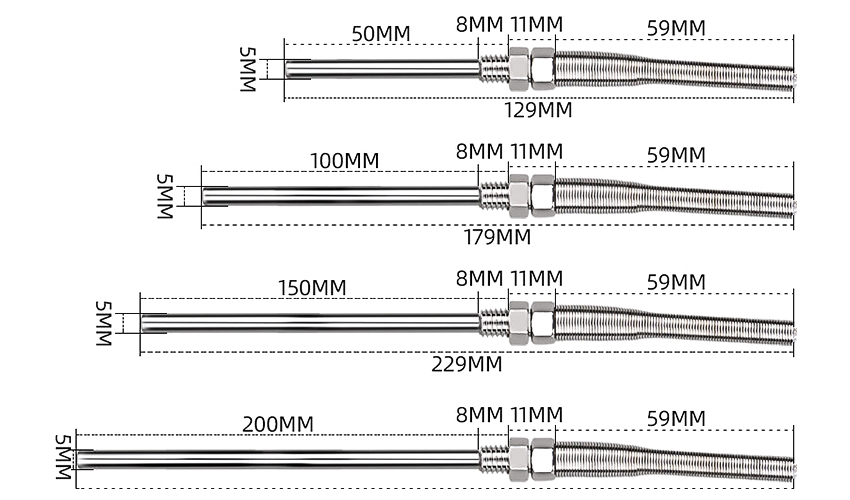

Probe Dimension

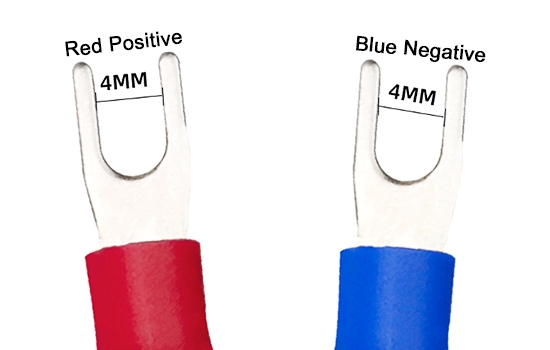

Terminal Dimension

Note: The above data is manually measured and may have some errors. Please refer to the actual product for accuracy.
