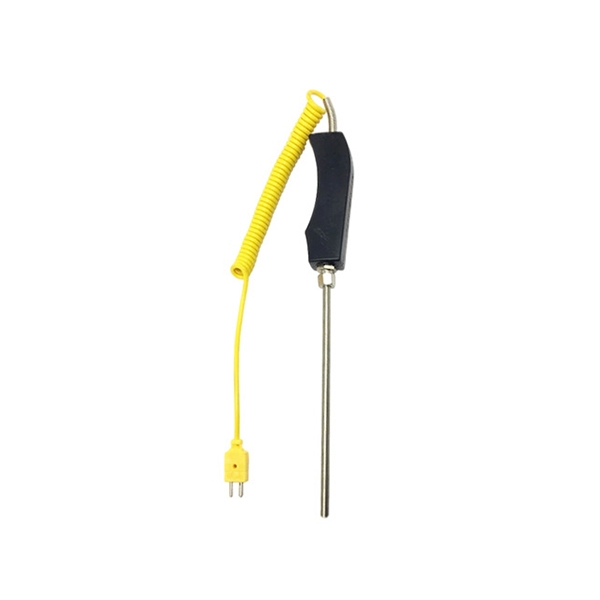

Handheld High Temperature Thermocouple, 0~1100℃

SUCH handheld K type thermocouple is suitable for high-temperature measurement, with a measurement range of 0~1100℃ (0~800℃ recommended for long-term use). The probe diameter is available in 6mm or 8mm and can be customized to customer requirements. Insertion depths are available in 500mm, 1000mm, and 1500mm, and can also be customized. The sheath is made of 321 stainless steel, which is resistant to high temperatures and corrosion. The handle is made of bakelite, providing a safe and reliable grip, suitable for various industrial temperature measurement applications.

Note: Due to the special nature of the product, please contact customer service to discuss relevant specifications before placing an order. Diameter and insertion depth can be customized according to customer requirements. Please contact us for customization.

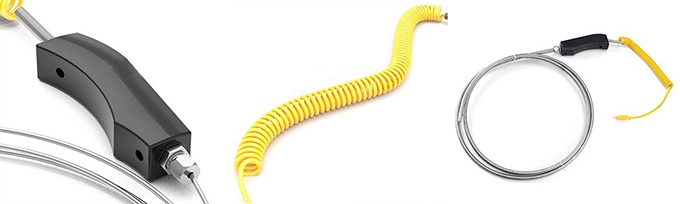

Feature

• Large Bakelite Handle: Made of high-quality, heat-resistant bakelite, withstanding temperatures up to 250°C. The spring strain-relief sleeve protects the cable from damage and prevents wire breakage.
• High-Temperature Insulated Structure: Constructed with premium heat-resistant and insulating plastic, precisely fitted to better protect internal wires and ensure stable and efficient signal transmission.
• High-Strength Flexible Probe: The probe is bendable with excellent mechanical strength, high pressure resistance, and enhanced stability, making it suitable for demanding measurement environments.

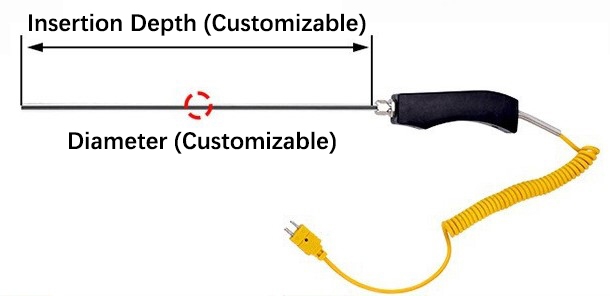

Dimension (Unit: mm)

Note: Diameter and insertion depth can be customized according to customer requirements. The above are only partial dimensions, please contact us for customization.

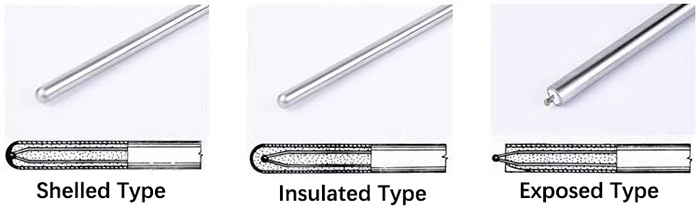

Connection Method

• Shelled type: Fast thermal response, but poor anti-interference ability, unsuitable for hazardous or highly interference environments.
• Insulated type (Default): Strong anti-interference ability, suitable for hazardous environments, but with a slower thermal response.
• Exposed type: Fast and sensitive thermal response, but poor anti-interference ability, unsuitable for corrosive, high-pressure, or high-temperature environments.

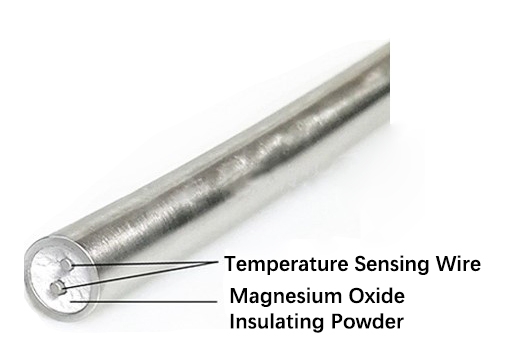

Detail
