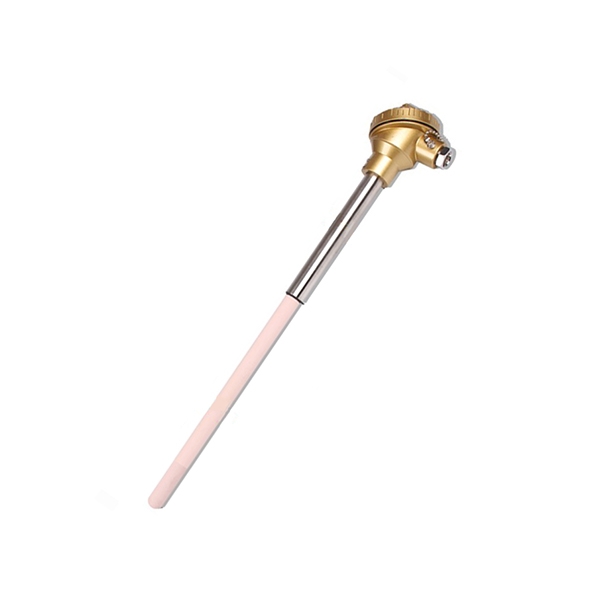

B Type Thermocouple, Corundum, 0~1800℃

B type thermocouple consists of a protective head and a corundum thermocouple sheath. It has the advantages of high measurement accuracy, good stability and long service life. The conventional temperature measurement range is 0 to 1600℃, and it can reach 1800℃ for short periods. SUCH thermocouple uses a 0.3mm thermoelectric wire and a corundum protective tube, which has excellent high temperature resistance, corrosion resistance and thermal shock resistance. The installation method is flexible and can be customized according to needs. It is widely used in high-temperature industrial fields such as powder metallurgy, sintering bright furnace, vacuum furnace, smelting furnace, glass, steelmaking, ceramics and industrial salt bath furnace.

Note: Due to the special nature of the product, please contact customer service to discuss relevant specifications before placing an order. Tube diameter, total length, and insertion depth can be customized according to customer requirements. Please contact us for customization.

Feature

• High-Precision Thermocouple Wire: Ensures accurate temperature measurement with safe, stable, and reliable performance.
• Waterproof Junction Box: Provides stable electrical performance with a robust and durable structure for long-term use.
• Corundum Protection Tube: Offers high measurement accuracy, stable performance, and excellent high-temperature resistance; the vibration-resistant protective tube ensures the product remains intact during transportation.

Dimension (Unit: mm)

Note: Tube diameter, total length, and insertion depth can be customized according to customer requirements. The above are only partial dimensions, please contact us for customization.

Installation
