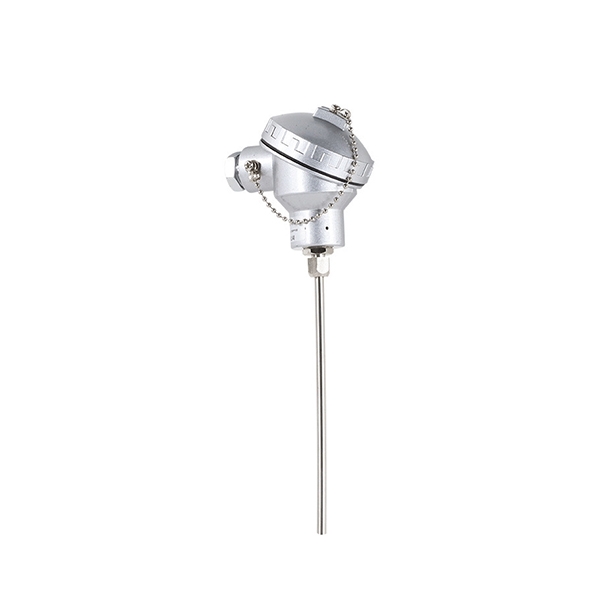

K Type Thermocouple, Stainless Steel, 0~800℃

K type sheathed thermocouple is a reliable temperature measurement sensor widely used in industrial applications. SUCH thermocouple is typically used in combination with temperature transmitters, controllers, and display instruments to form a complete process control system for direct temperature measurement and control. It supports long-term operation within a measuring range of 0~800℃, with probe diameters of 3 mm~8 mm, probe lengths of 500 mm~1500 mm, and a SUS304 stainless steel sheath.

Note: Due to the special nature of the product, please contact customer service to discuss relevant specifications before placing an order. Probe diameter, probe length, installation method and other specifications can be customized according to customer requirements. Please contact us for customization.

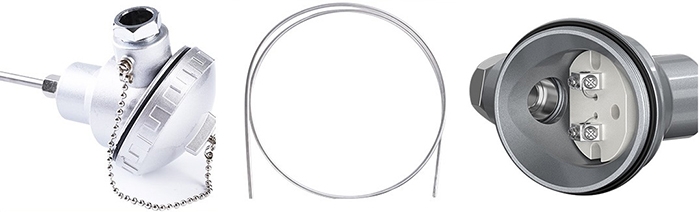

Feature

• Reinforced Junction Box: Thickened and durable junction box, corrosion-resistant, acid- and alkali-proof, and waterproof/dustproof.
• Flexible and High Sensitivity: Can be bent for installation while maintaining high sensitivity and measurement accuracy.
• Magnesium Oxide Insulation: Filled with MgO powder for excellent thermal conductivity, vibration resistance, and extended service life.

Dimension (Unit: mm)

Note: The probe diameter and length can be customized. The above are only partial dimensions, please contact us for customization.

Detail
