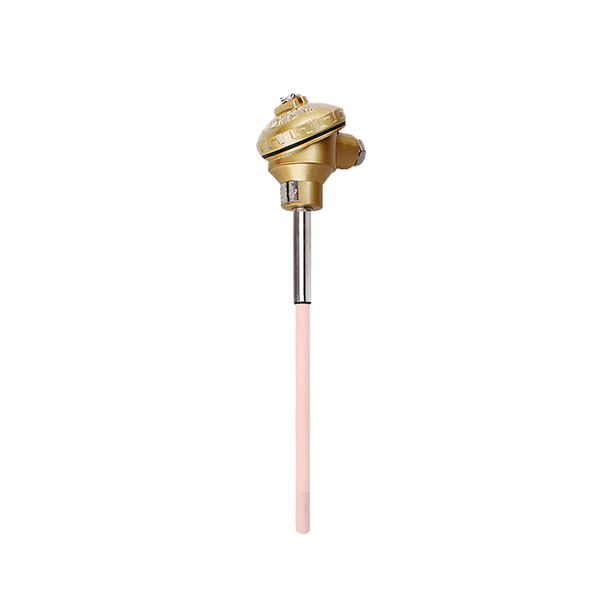

S Type Thermocouple, Corundum, 0~1600℃

S type thermocouple consists of a protective head and a corundum thermocouple tube, and is widely used in high-temperature applications such as powder metallurgy, bright sintering furnaces, vacuum furnaces, smelting furnaces, glass production, steelmaking furnaces, ceramic processing, and industrial salt bath furnaces. With a measuring range of 0~1600℃ and a default thermocouple wire diameter of 0.3 mm, it offers high accuracy and excellent long-term stability.

Note: Due to the special nature of the product, please contact customer service to discuss relevant specifications before placing an order. Tube diameter, total length, and insertion depth can be customized according to customer requirements. Please contact us for customization.

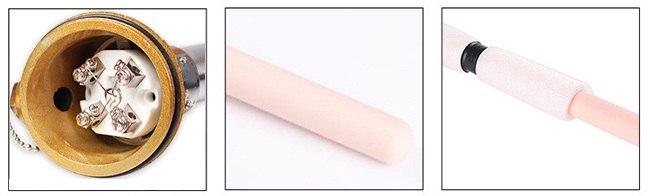

Feature

• High-Precision Thermocouple Wire: Ensures accurate temperature measurement with safe, stable, and reliable performance.
• Waterproof Junction Box: Provides stable electrical performance with a robust and durable structure for long-term use.
• Corundum Protection Tube: Offers high measurement accuracy, stable performance, and excellent high-temperature resistance; the vibration-resistant protective tube ensures the product remains intact during transportation.

Dimension (Unit: mm)

Note: Tube diameter, total length, and insertion depth can be customized according to customer requirements. The above are only partial dimensions, please contact us for customization.

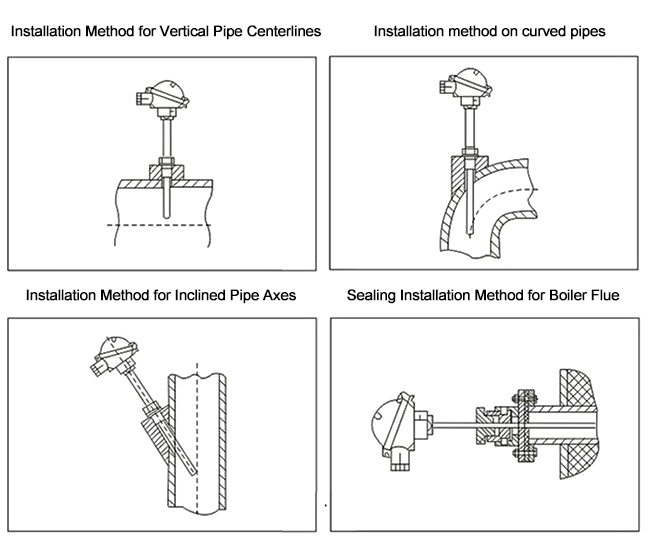

Installation
