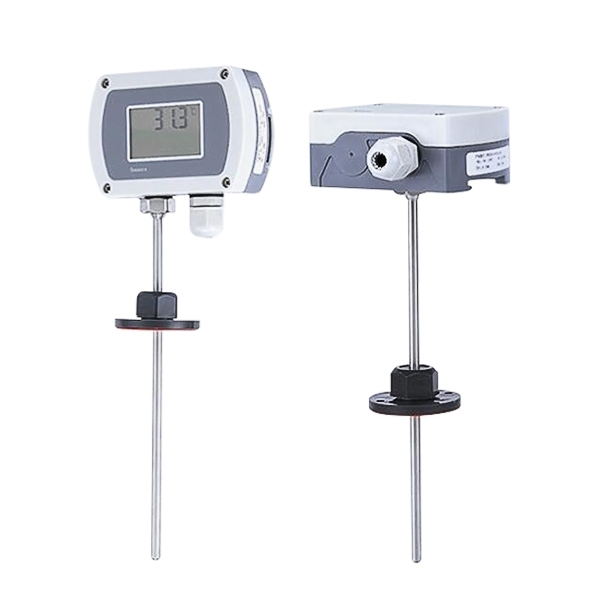

    Picture of Pipe Thermocouple with Display, -50~100℃ Picture of Pipe Thermocouple with Display, -50~100℃ Picture of Pipe Thermocouple with Display, -50~100℃

    Pipe Thermocouple with Display, -50~100℃

    0 review(s) | Add your review
    SKU: SUCH-TC-CWDZ20
    $85.00
    ● Measuring Range: -50~100℃ ● Measuring Medium: Air ● Output Signal: 4-20mA / RS485 ● Accuracy Level: 0.5%FS / 0.25%FS
    *
    *
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    The pipe thermocouple with display combines innovative design and durability, featuring a unique appearance with strong design elements that resist wear and ensure long-lasting performance. The thermocouple is equipped with an adjustable sliding flange, and a high-quality 304 stainless steel probe, extending the service life of the thermocouple, making it ideal for long-term use in various environments.

    Feature

    • The pipe thermocouple features a unique and innovative appearance with strong design elements, making it resistant to wear and ensuring long-term durability.
    • It comes equipped with an adjustable sliding flange, allowing for easy and flexible installation, providing convenience for different pipe sizes and installation scenarios.
    • The probe is made from high-quality 304 stainless steel, which is highly resistant to corrosion, extending the service life of the thermocouple and making it ideal for long-term use in various environments.
    • The built-in LCD display offers a clear and rich presentation of information, with low power consumption to ensure long-lasting performance, making it easy to monitor and read temperature data.

    Dimension (Unit:mm)

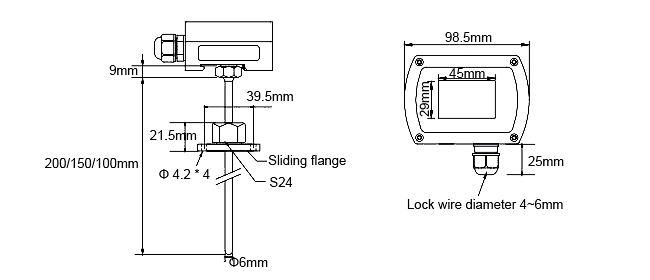

    Bottom Mounting Dimension

    Pipe thermocouple bottom mounting dimension

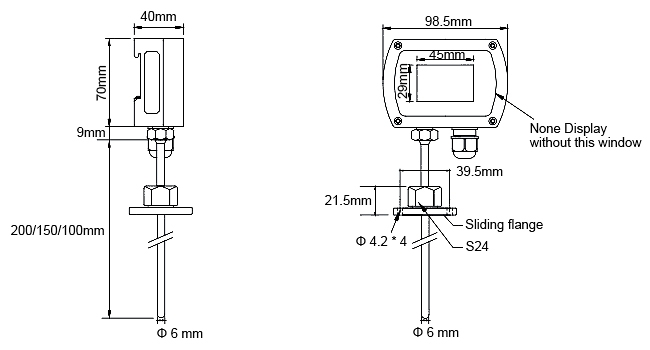

    Side Mounting Dimension

    Pipe thermocouple side mounting dimension

    Detail

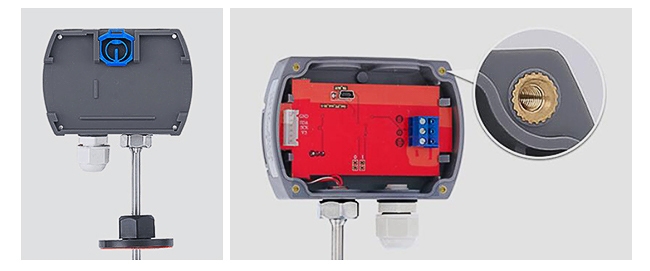

    Pipe thermocouple feature

    The thermocouple features durable metal screws that enhance its durability, provide abrasion resistance, and ensure secure connections even under demanding conditions.

    Specs
    Measuring Medium Air
    Measurement Range -50-100℃
    Insertion Depth 100mm / 150mm / 200mm (Optional)
    Output Signal 4-20mA / RS485 (Optional)
    Response Time 18s
    Stability ±0.1% FS/year
    Connection Time 400ms
    Accuracy Level 0.5%FS (Default), 0.25%FS (Optional)
    Resolution Analog Output 0.02%FS
    Environmental Temperature -40-85℃
    Ambient Humidity 0%-95%RH (No Condensation or Condensation)
    Overall Weight With Display ≈190g, Without Display ≈170g
    Protection Level IP65 (Note: Protection level applies after electrical connection is completed)
    Application
    HVAC system

    HVAC System

    Industrial equipment

    Industrial Equipment

    Refrigeration equipment

    Refrigeration Equipment

    FAQ
     ❯

    A pipe thermocouple with display is a temperature sensing device that measures the temperature of a pipe or surface and displays the results directly on an integrated LCD or digital screen. It uses thermocouple technology to provide accurate temperature readings, depending on the model.

    ❯

    The built-in LCD display allows users to easily view temperature readings directly on the device, eliminating the need for an external measuring instrument. This provides convenience and ensures real-time monitoring without additional equipment. It also reduces the chances of errors and improves the overall user experience.

    ❯

    Yes, many models of pipe thermocouple with display are designed with low power consumption, making them energy-efficient. This is especially important in remote or battery-powered applications, as it extends battery life and reduces the need for frequent power sources.
