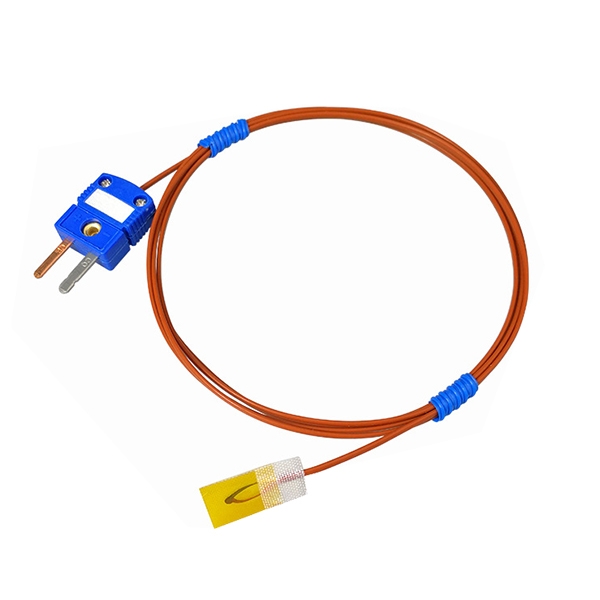

T Type Surface Thermocouple, -200~200℃

SKU: SUCH-TC-F2F

$69.57

● Measuring Range: -200~200℃ ● Thermocouple Type: T ● Terminal Type: Plug ● Patch Material: Polyimide Composite Fiberglass

Length *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The T type surface thermocouple is a user-friendly, surface-mount temperature sensor that offers ease of installation with its peel-and-stick design, providing both convenience and efficiency. It utilizes primary-grade measuring thermocouple wire, ensuring precise and accurate temperature readings. Additionally, it comes equipped with a plug for easy and secure connection to temperature measurement systems, making it a versatile solution for a wide range of applications.

Feature

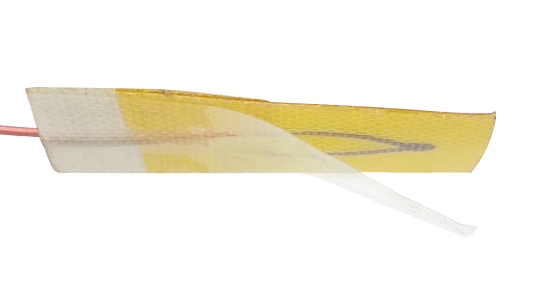

T type thermocouple detail

The SUCH thermocouple is a surface-mount type, which is easy to use with a simple peel-and-stick design, providing convenience and efficiency.
It uses primary-grade measuring thermocouple wire, ensuring more accurate temperature measurements.
The thermocouple is suitable for situations where drilling holes is not feasible, allowing temperature measurement on the surface of objects with various environmental constraints.
It comes with a plug, making it easy to connect to temperature measurement systems.

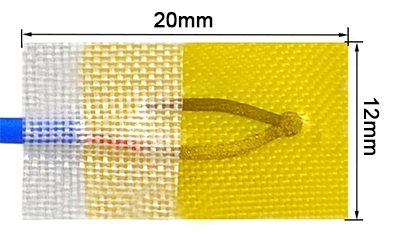

Dimension (Unit:mm)

T type thermocouple dimension

Note: The adhesive sheet has a thickness of only 0.23mm, making it ultra-thin and ideal for precise surface temperature measurements.

Specs

Thermocouple Type	T
Temperature Range	-200℃-200℃
Patch Material	Polyimide Composite Fiberglass
Lead Length	0.5m / 1m / 1.5m / 2m / 3m / 4m / 5m / 6m / 7m / 8m / 9m / 10m
Wire Material	2*0.3mm Primary-grade Teflon Wire
Patch Size	12*20mm
Terminal Type	Plug (Default)
Protection Rating	IP55

Application

Chemical Industry

Laboratory

Food Production

FAQ

Q1: What is a T Type thermocouple? ❯

A T Type thermocouple is made from two different metals: copper (Cu) and constantan (CuNi). It is commonly used for temperature measurements in low-temperature ranges, typically from -200°C to 200°C. It generates a voltage that correlates with temperature, making it suitable for various precision measurement applications.

Q2: What are the advantages of using a T Type thermocouple? ❯

The T Type thermocouple is known for its excellent accuracy and stability at low temperatures. It is particularly favored in applications that involve sub-zero temperatures or delicate temperature measurements. Its copper-constantan construction makes it reliable for precise measurements in environments where other thermocouples may not perform well.

Q3: How long will a T Type thermocouple last? ❯

The lifespan of a T Type thermocouple depends on environmental factors such as temperature stability, mechanical stress, and exposure to chemicals. Under normal conditions, a well-maintained T Type thermocouple can last for several years. However, regular calibration and proper handling are recommended to extend its lifespan and maintain measurement accuracy.
