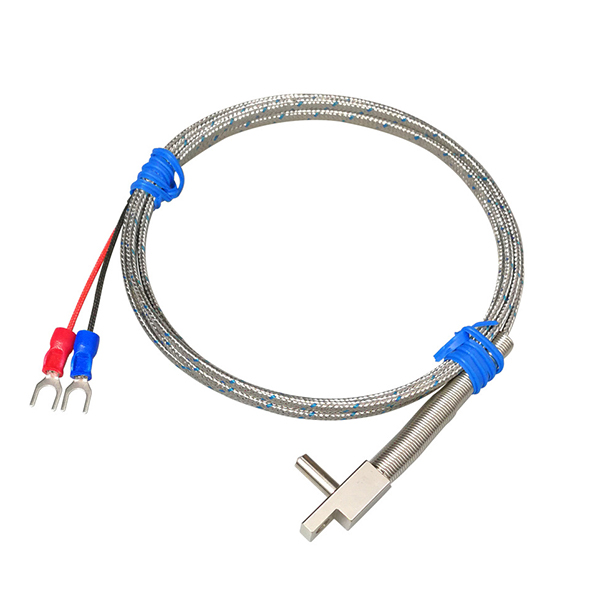

J Type Thermocouple, 0~600℃

The J type thermocouple features a copper protection tube that allows for rapid and sensitive temperature response. The temperature measurement point is precisely welded with a smooth, polished finish. For added protection, the thermocouple includes a multi-strand primary-grade measuring wire and a precision-braided stainless steel shielding layer, offering both superior signal stability and extended service life. With a wide temperature range of 0-600°C, it is an ideal solution for environments requiring reliable and durable temperature sensing.

Feature

• The SUCH thermocouple is equipped with a spring sheath, which provides enhanced resistance to bending.
• It features a copper protection tube, which allows for faster and more sensitive temperature response.

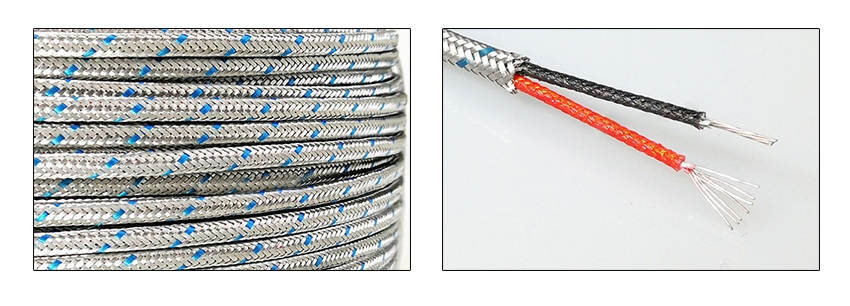

• The thermocouple is protected by a precision-braided stainless steel shielding layer, which enhances its durability and extends its lifespan.
• It uses multi-strand primary-grade measuring thermocouple wire for improved accuracy and reliability in temperature measurement.

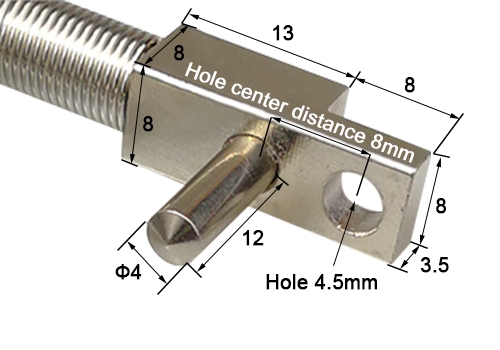

Dimension (Unit:mm)

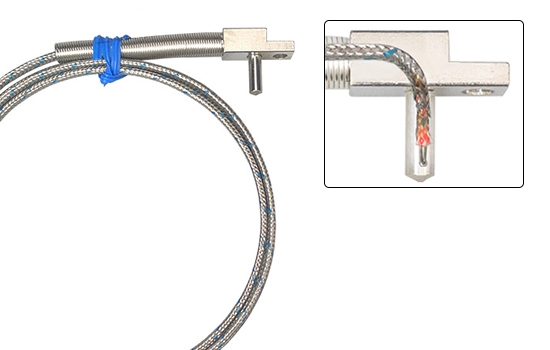

Detail

Note: This temperature measurement point is smoothly welded with a polished surface, ensuring more accurate temperature readings.
