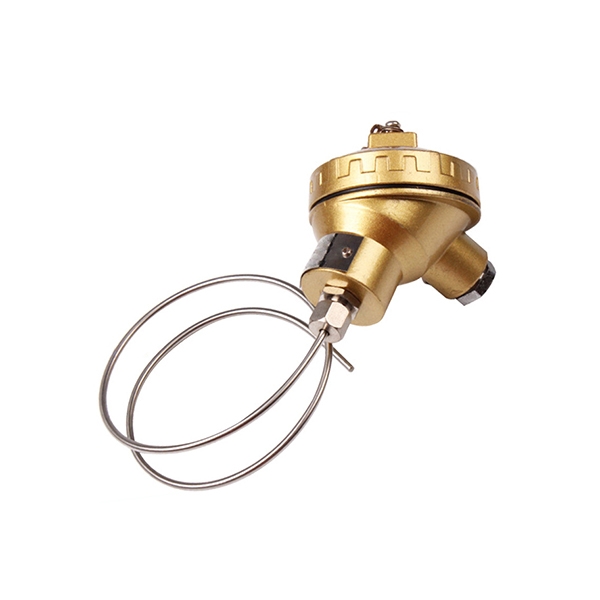

R Type Thermocouple, Sheathed, 0~1600℃

SUCH R type sheathed thermocouple is a flexible, fast-responding high-temperature temperature measuring element. The protective tube diameter ranges from 0.5 to 8mm. It is small, lightweight, and easy to install and use. The thermocouple can provide long-term stable measurement within a temperature range of 0~1600℃, with a thermal response time of <2 seconds. R-type thermocouple is widely used in industrial and scientific research fields, such as steam pipeline temperature measurement, boiler internal water temperature monitoring, and various high-temperature experiments and tests.

Note: Due to the special nature of the product, please contact customer service to discuss relevant specifications before placing an order. Sheath diameter and tail end material and length can be customized, please contact us for customization.

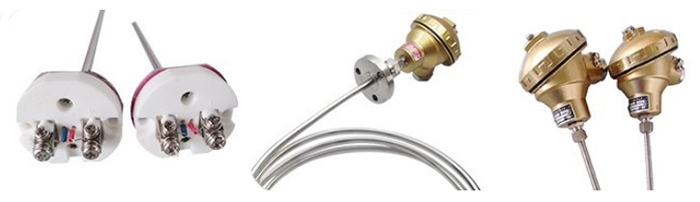

Feature

• High Precision and Fast Response: Utilizes high-quality platinum-rhodium wire for accurate temperature measurement and a thermal response time of up to 2 seconds.
• Durable and Stable: Waterproof and rustproof, with a robust structure and long service life, capable of reliable operation in various environments.
• Flexibility and Easy Installation: Made of stainless steel, it can be bent freely and supports high-frequency welding, adapting to various installation needs and complex working conditions.

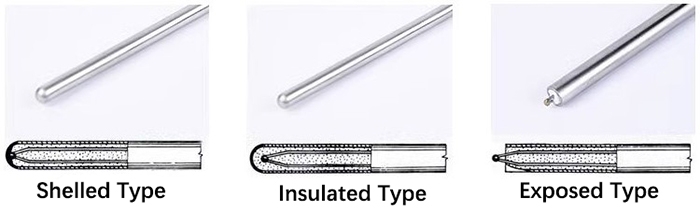

Connection Method

• Shelled type: Fast thermal response, but poor anti-interference ability, unsuitable for hazardous or highly interference environments.
• Insulated type (Default): Strong anti-interference ability, suitable for hazardous environments, but with a slower thermal response.
• Exposed type: Fast and sensitive thermal response, but poor anti-interference ability, unsuitable for corrosive, high-pressure, or high-temperature environments.

Wiring Method
