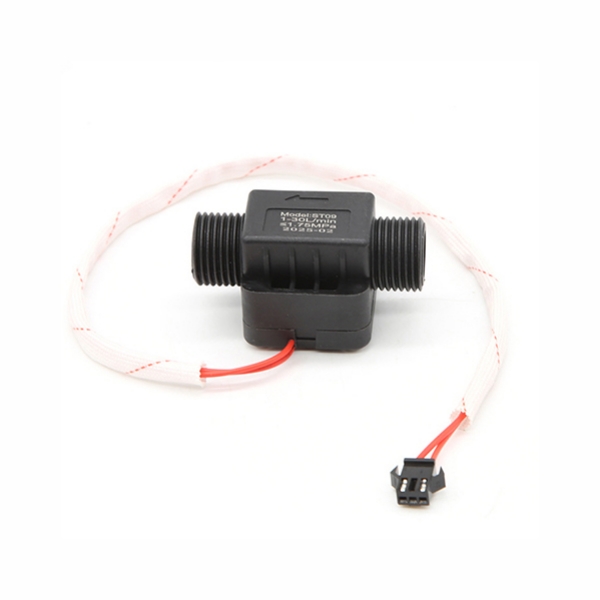

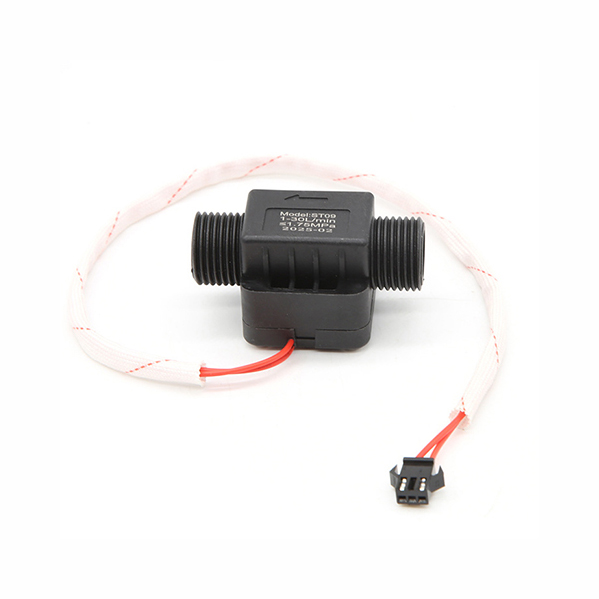

Liquid Flow Switch, G1/2'', 1-30 L/min

The high-performance liquid flow switch operates within a flow range of 1-30 L/min, with a stable activation flow of 1.2-2 L/min and a deactivation flow of 1-1.8 L/min. Its response time is a mere 0.2 seconds, enabling rapid and precise water flow detection. The flow switch features a G1/2'' standard connection and withstands water pressure up to 1.75MPa. For stable performance, install vertically following the arrow direction and maintain a minimum 2cm distance from magnetic sources to ensure consistent sensitivity.

Feature

• Wide Flow Range: The liquid flow switch operates within a flow range of 1–30 L/min, with an activation flow controlled at 1.2–2 L/min and a deactivation flow of 1–1.8 L/min. It features high sensitivity and excellent repeatability, enabling precise detection of water flow state changes.
• Rapid Response Performance: With a response time of just 0.2 seconds, the flow switch instantly switches actions upon flow changes. This enables effective interlock control and dry-run protection, enhancing system safety and stability.
• Pressure-Resistant Reliable Structure: Withstands maximum water pressure ≤1.75 MPa. Its robust structural design and excellent sealing ensure long-term stable operation under high-pressure conditions.
• Stable Electrical Performance: Supports DC≤100V and AC≤110V≤0.5A. Rated power: 10W. Switch life: up to 10⁸ cycles. Durable and reliable electrical contacts make it suitable for frequent start-stop applications.
• Convenient and Standardized Installation: The SUCH liquid flow switch features a G1/2'' interface design and comes with an SI-3Y2×350 dual red cable. Install vertically following the arrow direction and maintain a minimum distance of 2cm from magnetic sources to ensure detection accuracy and service life.

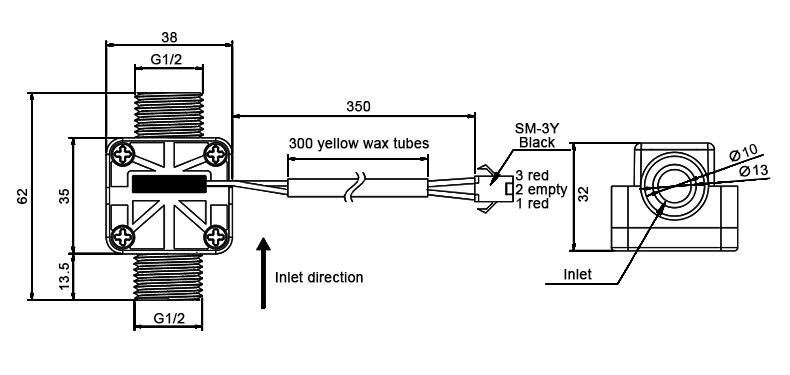

Dimension (unit: mm)
