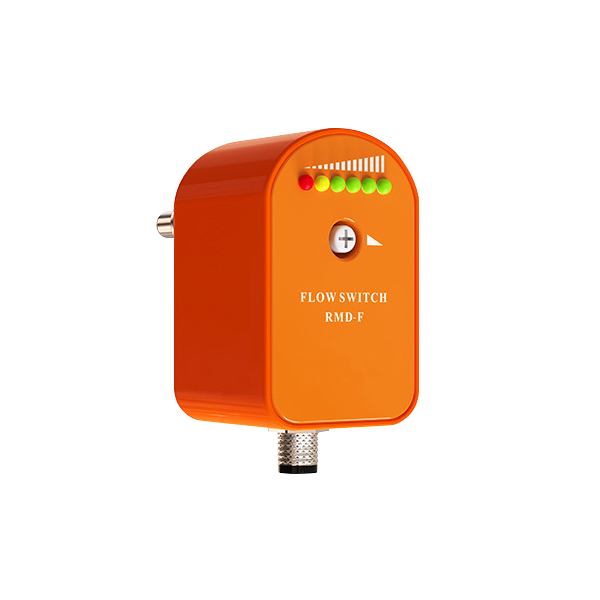

Thermal Flow Switch, 110VAC/ 220VAC, PNP/ NPN

SKU: SUCH-FLS-RMDF5
$168.95
● 24VDC, 110VAC, 220VAC ● G1/2, G1/4, M18 ● PNP/ NPN/ Relay ● Water/Oil: 3-300cm/s
*
*
*
🚚 Free shipping
🕒 Delivery date: 6-12 days
🔁 30-day Returns
Overview

SUCH thermal flow switch supports multiple interface types including G1/2, G1/4 external threads, and M18 internal threads. Sensor lengths are available in 15mm, 20mm, 30mm, 40mm, and 60mm to accommodate various pipe diameters and installation spaces. The flow switch utilizes a potentiometer for setting adjustment, with a controllable response time of 2–10 seconds. It supports multiple power inputs including 24VDC, 110VAC, and 220VAC. Output signals can be selected as PNP, NPN, or relay formats, ensuring strong compatibility. IP67 protection rating combined with reverse polarity, short circuit, and overload protection design ensures long-term safe operation.

Feature

Thermal flow switch feature

  • This thermal flow switch is designed for liquid media and can be used in various fluid environments, such as water and oil. Its measurement range covers 3–300 cm/s, meeting the needs of different flow rate conditions.
  • The flow switch sensor probe is constructed from ANSI 316L stainless steel, offering excellent corrosion resistance and oxidation resistance. The housing is made of ABS engineering plastic, ensuring robust durability.
  • Featuring an IP67 protection rating, it provides effective dust and water resistance, ensuring long-term stable operation in humid or dusty environments.
  • The switch supports multiple mounting interface specifications, including G1/2, G1/4 external threads, and M18 internal threads, accommodating diverse piping system requirements.
  • SUCH electronic flow switches incorporate reverse polarity protection, short-circuit protection, and overload protection, effectively preventing damage from incorrect wiring or sudden current surges.

Dimension (unit: mm)

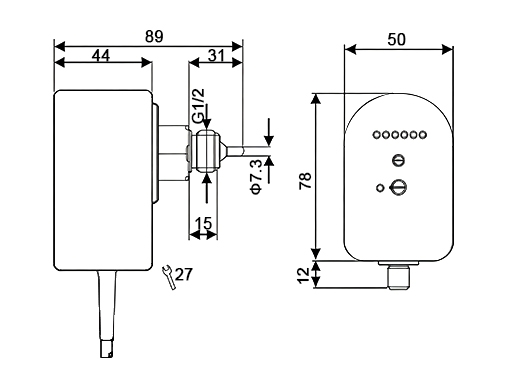

Thermal flow switch dimension

Type Select

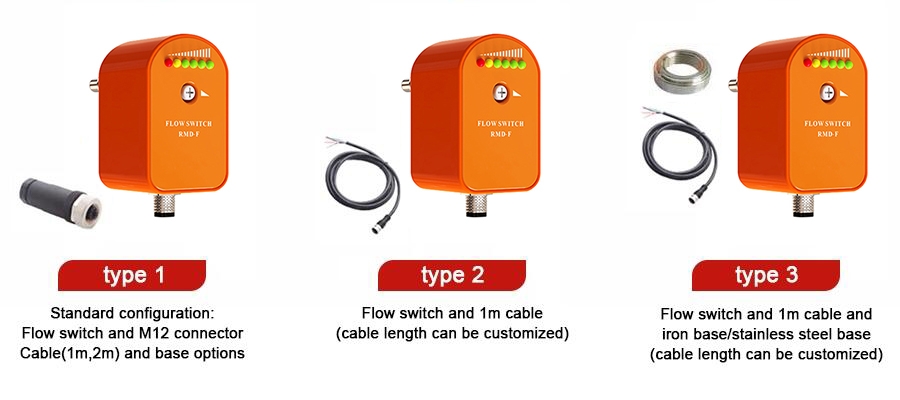

Thermal flow switch types select

Detail

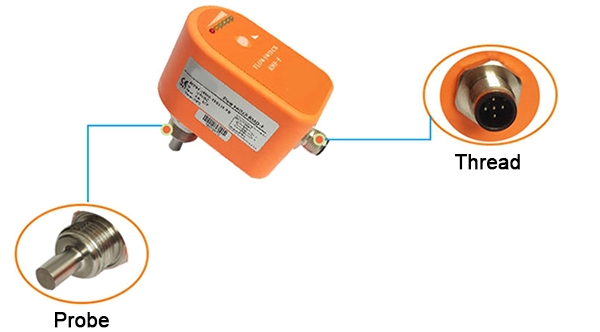

Thermal flow switch detail

Wiring Diagram

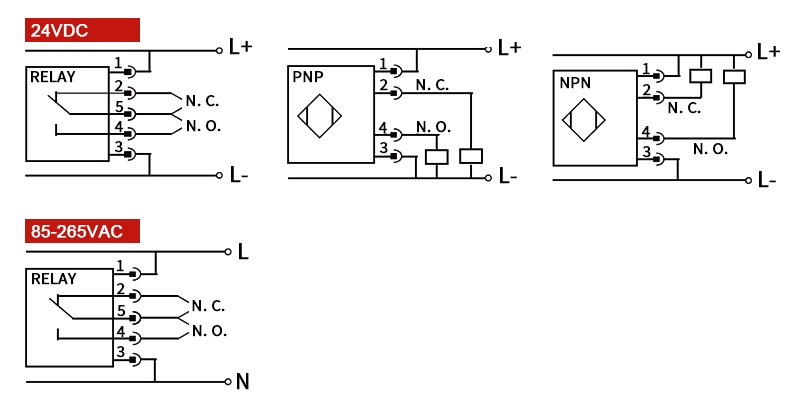

Thermal flow switch wiring diagram

Note

  • When powered by 85~265VAC, both high and low point actions cannot be activated simultaneously. Please pay special attention to this specification during selection.
  • When powered by 24VDC, connect brown to positive and blue to negative. The flow switch's internal transistor or relay output defaults to conducting or activating when above the set point. Conversely, connect blue to positive and brown to negative for the output to conduct or activate when below the set point.
Specs
Media Type Liquid
Measuring Range Water (3-300cm/s), Oil (3-300cm/s)
Accuracy ±1 to ±10cm/s
Settling Time 3 minutes
Working Pressure 100bar
Medium Temperature -20℃ to 80℃
Thread G1/2, G1/4 Male Thread/ M18 Female Thread
Power 24VDC, 110VAC, 220VAC
Output Signal PNP/ NPN/ Relay
Sensor Length 15mm, 20mm, 30mm, 40mm, 60mm
Setting Potentiometer
Consumption Current <60mA
Response Time 2 (2-10)s
Max. Temperature Gradient of Medium 300K/ min
Protect Reverse/ Short/ Overload
Protection Grade IP67
Power Connector M12 connector with 1m cable
Material Sensor: ANSI316L
Body: ABS
Load Current: 250mA
Relay: 30VDC/5A, 110VAC/5A, 220VAC/5A
Net Weight 1kg
Package Type Carton box, each flow switch is individually packaged
Application

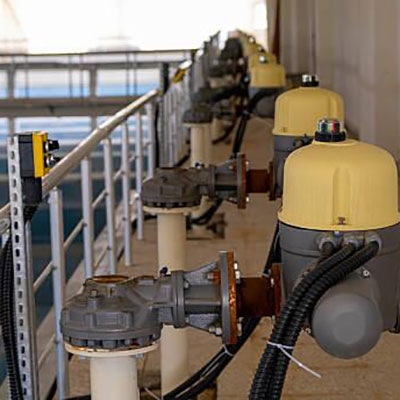

Flow switch for water treatment system

Water Treatment System

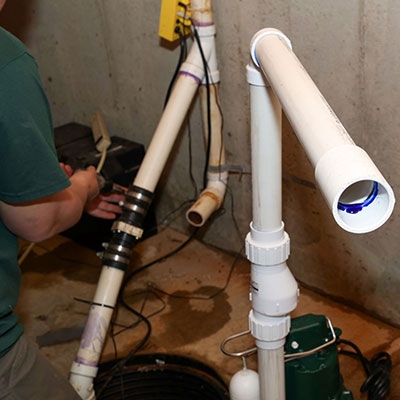

Flow switch for piping

Piping

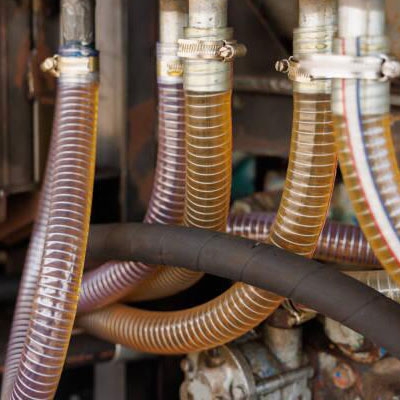

Flow switch for lubricating oil circulation system

Lubricating Oil Circulation System

FAQ

Thermal flow switches operate based on the principle of thermal dispersion. An internal heating element and temperature sensor detect fluid flow status. When the medium flows, it dissipates the heat generated by the heating element. The sensor detects this temperature change and converts it into an electrical signal, thereby determining whether the set flow rate has been reached.

Thermal flow switches are suitable for water, coolants, air, and certain clean liquids or gases. However, they are not recommended for high-viscosity fluids or those containing significant particulate impurities. Measurement accuracy is influenced by the medium's thermal conductivity, so fluid type and temperature range must be confirmed during selection.

When installing a thermal flow switch, ensure the probe is fully immersed in the fluid and oriented correctly with the flow direction. Avoid installation in areas with strong turbulence or bubble accumulation. Sufficient straight pipe sections should be provided to ensure measurement stability. For maintenance, regularly inspect the probe surface for dirt or scale buildup to prevent impaired heat transfer.
