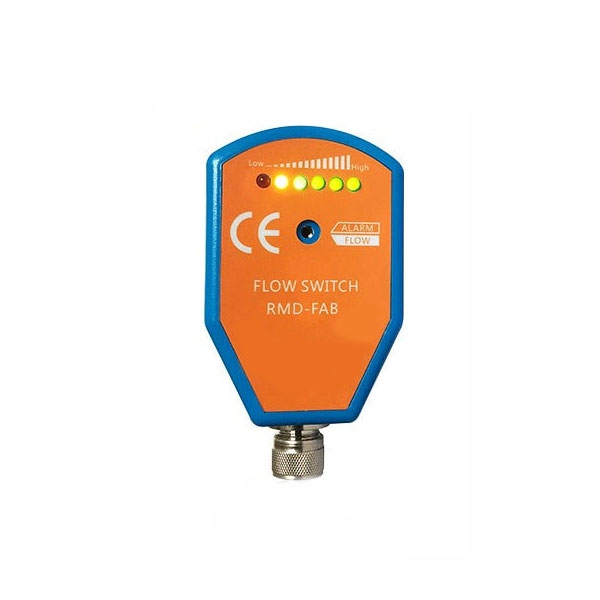

    Electronic Flow Switch, PNP/ NPN/ Relay

    SKU: SUCH-FLS-RMDFAB
    $153.38
    ● 24VDC, 110VAC, 220VAC ● G1/2, G1/4, M18 ● PNP/ NPN/ Relay ● 6 LED lamps
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    High-precision industrial-grade electronic flow switch available for sale. Flow measurement ranges cover water, air, and oil with accuracy up to ±1–±10 cm/s. Supports multiple power supply options including 24VDC, 110VAC, and 220VAC. Flow switch output formats include PNP, NPN, or relay outputs, ensuring strong compatibility for seamless integration with PLCs and automation systems. 6-segment LED flow indicator provides clear, intuitive visualization. Potentiometer enables quick threshold setting with adjustable response time (2–10 seconds).

    Feature

    Electronic flow switch feature

    • This electronic flow switch is suitable for detecting both liquids and gases, meeting diverse application needs such as industrial circulating water systems, compressed air systems, and lubricating oil pipelines.
    • Equipped with 6 LED flow indicator lights, the SUCH flow switch provides real-time operational status display, enabling users to quickly identify flow changes and ensuring more precise and stable equipment interlock control.
    • Utilizing a 316L stainless steel sensor probe and PC housing structure, it is designed for high-pressure, high-temperature, and complex industrial environments.
    • The flow switch comes with an M12 aviation connector and a 1-meter cable for easy wiring, making it suitable for automated control systems, pump station protection, and equipment flow interlock control.

    Dimension (unit: mm)

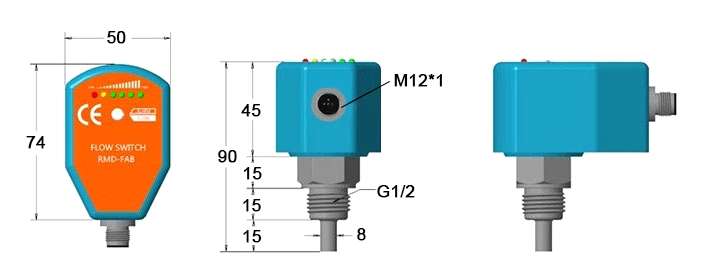

    Electronic flow switch dimension

    Type Select

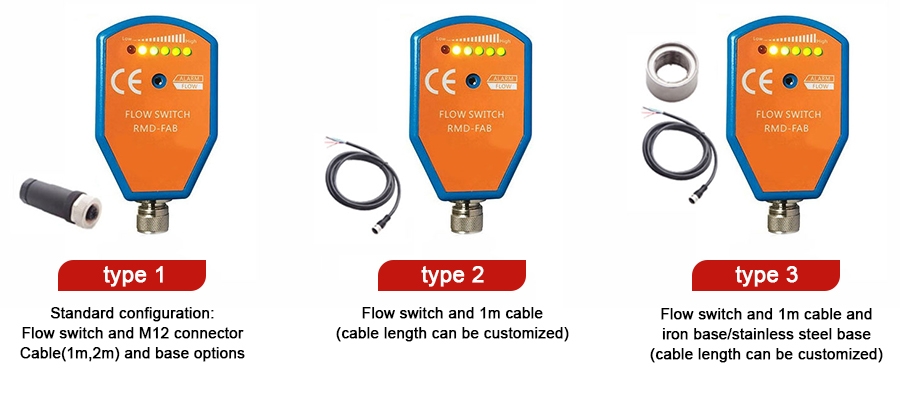

    Electronic flow switch types

    Wiring Diagram

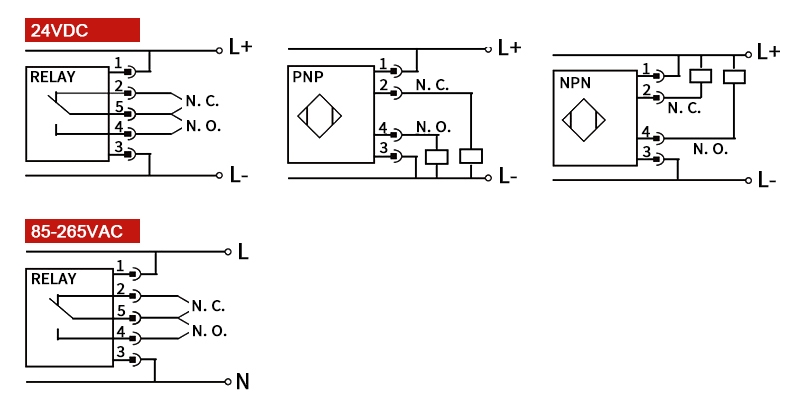

    Electronic flow switch wiring diagram

    Specs
    Media Type Liquid
    Measuring Range Water 3-300cm/s, Air 200-3000cm/s, Oil 3-300cm/s
    Accuracy ±1-±10cm/s
    Settling Time 3 minutes
    Working Pressure 100bar
    Medium Temperature -20℃ to 80℃
    Thread G1/2, G1/4 Male Thread, M18 Female Thread
    Power 24VDC, 110VAC, 220VAC
    Output Signal PNP/ NPN/ Relay
    Sensor Length 15mm, 20mm, 30mm, 40mm, 60mm
    Setting Potentiometer
    Flow Indicator 6 LED lamps
    Consumption Current <60mA
    Response Time 2 (2-10)s
    Max. Temperature Gradient of Medium 300K/ min
    Protect Reverse/ Short/ Overload
    Protection Grade Ip67
    Power Connector M12 connector with 1m cable
    Material

    Sensor: ANSI316L

    Body: PC

    Load

    Current: 250mA

    Relay: 30VDC/5A, 110VAC/5A, 220VAC/5A

    Net Weight 1kg
    Package Type Carton box, each flow switch is individually packaged
    Application

    Flow switch for water treatment system

    Water Treatment System

    Flow switch for compressed air system

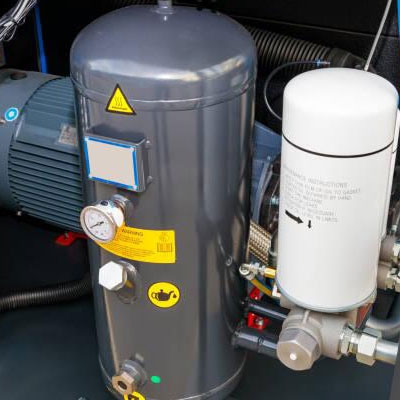

    Compressed Air System

    Flow switch for lubricating oil circulation system

    Lubricating Oil Circulation System

    FAQ

    Electronic flow switches primarily detect fluid flow status through sensing elements, converting the signal into an electrical output. Compared to traditional mechanical water flow switches, they offer faster response times, higher repeatability accuracy, and longer contact lifespans. Mechanical switches rely on spring or reed switch mechanisms, which may experience wear or sticking over extended use. Electronic designs provide greater stability and are well-suited for automated control systems. Translated with DeepL.com (free version)

    • When installing electronic flow switches, ensure the flow direction aligns with the product's arrow indicator. Avoid installation in areas with strong magnetic fields or high vibration to prevent sensitivity issues.
    • Certain models require vertical or horizontal installation; follow the instructions accordingly.
    • Keep the pipe interior clean to prevent debris from jamming internal components. When wiring, verify voltage and current parameters match to avoid exceeding the rated load.
    • After installation, conduct a water flow test to check for leaks or signal abnormalities, ensuring stable system operation.

    When an electronic flow switch experiences frequent false triggering or fails to activate, follow these steps: First, verify that water pressure and flow rate meet the activation thresholds. Next, check for a stable power supply voltage. Then, inspect wiring for loose connections or moisture exposure. In high-humidity environments, test whether insulation resistance has decreased.
