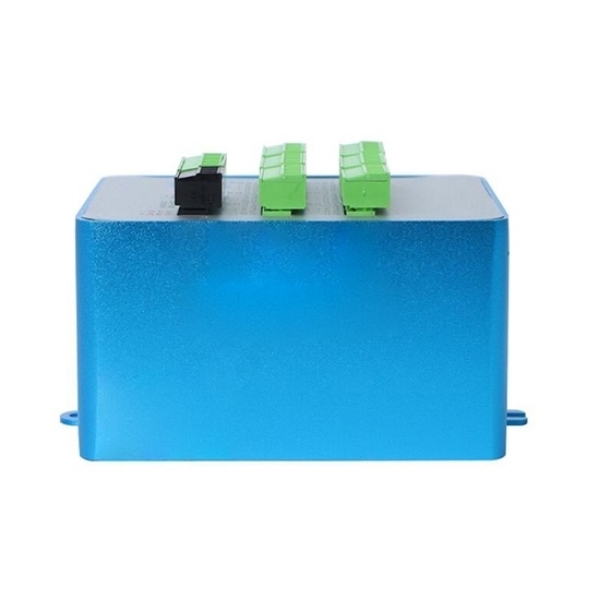

Load Cell Transmitter with TEDS, 3/6/9 Channel

Load cell transmitters with TEDS function for sale are available in 3 or 6 or 9 channels, operate at 24V DC and consume less than 3W.The digital transmitters support input sensitivities from 0.4mV/N to 6mV/N, and work reliably at -30℃~60℃ and 35%-85% humidity. SUCH load cell transmitters feature TEDS automatic load cell calibration, have dual RS232 and RS485 communication interfaces, provide 5V DC ±2%, 100mA excitation, and ensure 1/10,000 accuracy.

TEDS function: The sensor parameters are recorded by the chip, and the instrument reads the parameters and calibrates automatically. Automatic calibration is only possible when both the instrument and the sensor have the "TEDS" function.

Feature

• An internal resolution of 20 bits guarantees precise signal processing.
• The digital transmitter enables simultaneous data acquisition across up to 9 channels.
• The load cell transmitter provides selectable data acquisition rates: 10, 20, 80, or 320 times per second.
• The load cell transmitter with TEDS accepts signal inputs within the ±20mV range, facilitating high-sensitivity measurements.
• Equipped with both RS485 and RS232 interfaces, it enables flexible communication and seamless system integration.
• It can acquire data from all 9 channels at the same time, ensuring efficient monitoring.
• It supports TEDS (Transducer Electronic Data Sheet) technology, allowing for automatic transducer identification.

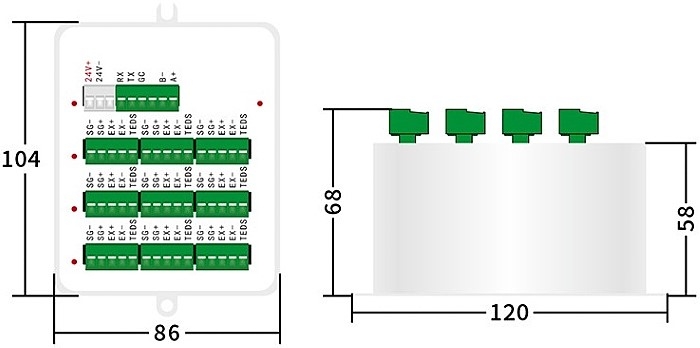

Dimension (Unit:mm)

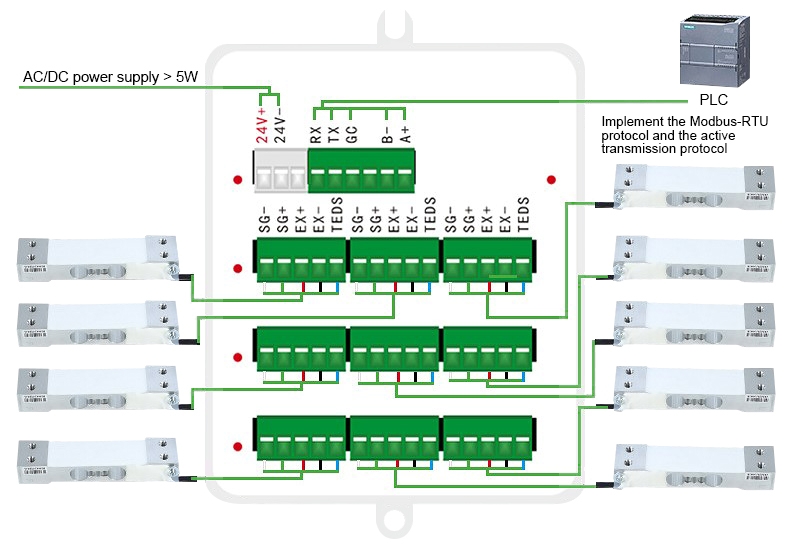

Wiring Definition

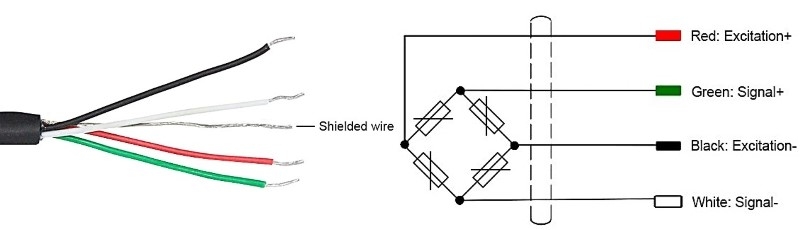

Wiring
