    Picture of Load Cell Junction Box, 2/3/4/6/8/10 Inlets to 1 Outlet Picture of Load Cell Junction Box, 2/3/4/6/8/10 Inlets to 1 Outlet

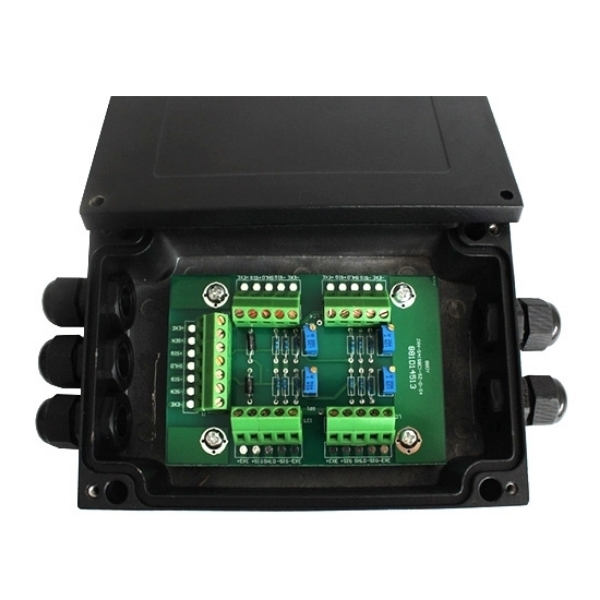

    Load Cell Junction Box, 2/3/4/6/8/10 Inlets to 1 Outlet

    0 review(s) | Add your review
    SKU: SUCH-LCBOX-10I
    $66.67
    ● With 2/3/4/6/8/10 inlets and 1 outlet ● Input signal 0-20mV ● Accuracy ≤±0.1% F.S ● Protection class IP67
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Buy a load cell junction box for electronic vehicle scales, hopper scales and other weighing instruments. Multi-channel load cell junction box has 2/3/4/6/8/10 inlets and 1 outlet, accuracy ≤±0.1% F.S, input signal 0-20mV. SUCH load cell junction box has an aluminum alloy shell, IP67 protection level, good anti-interference, waterproof and dust-proof rubber gaskets on the cover plate, easy to install and debug.

    Feature

    • IP67 Protection Level: The housing of the load cell junction box is made of aluminum alloy with good anti-interference performance.
    • Waterproof Sealed Joint: The cover plate is made of a waterproof rubber gasket, waterproof and dustproof.
    • High Precision Strain Gauge: Good heat resistance, small creep, small thermal hysteresis, good long-term stability.
    • Safe and Reliable: Each channel can be adjusted and balanced to prevent damage to the weight sensor junction box caused by induced lightning strikes and surge signals.

    Dimension

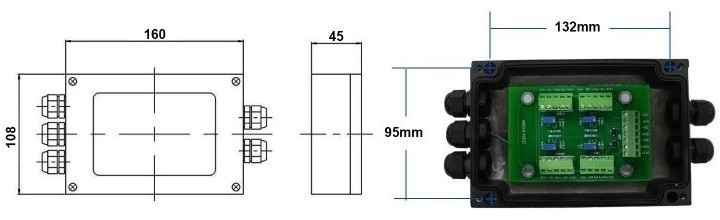

    Size of load cell junction box

    Wiring

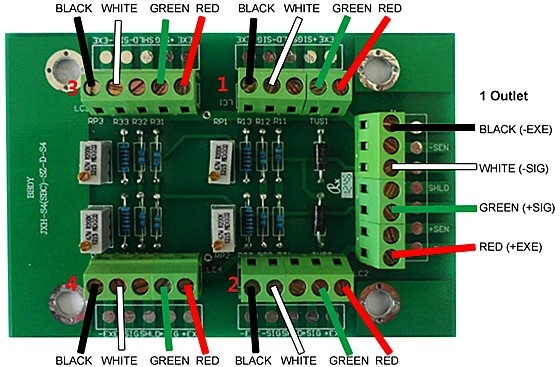

    Load cell junction box wiring

    Specs
    Accuracy ±0.1%FS
    Number of channels * 2 inlets to 1 outlet, 3 inlets to 1 outlet, 4 inlets to 1 outlet, 6 inlets to 1 outlet, 8 inlets to 1 outlet, 10 inlets to 1 outlet
    Multi-channel input signal 0-20mV (including 2mV load cell output signal)
    Output signal 0-20mV
    Power supply DC 12V/24V
    Working temperature -20~+85℃ (-4~+185℉)
    Protection class IP67
    Weight 3 kg
    Application

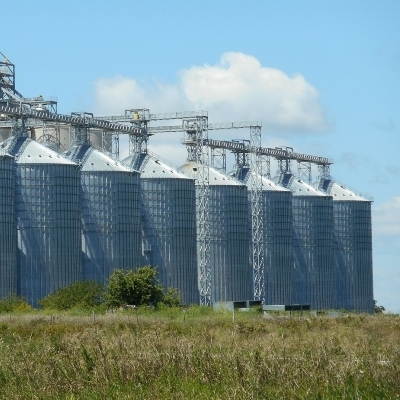

    Weighing of silo

    Weighing of Silo

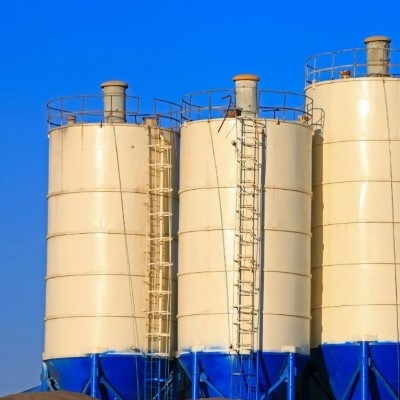

    Weighing of cement tank

    Weighing of Cement Tank

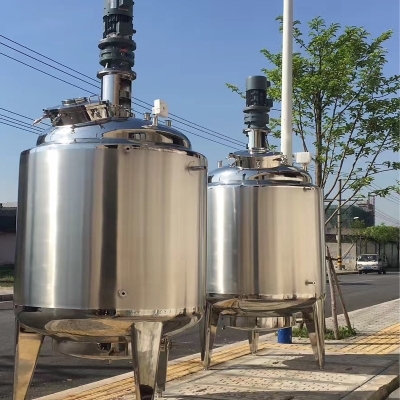

    Weighing of reactor

    Weighing of Reactor

    FAQ
     ❯

    The load cell junction box can synthesize the signals of multiple load cells into one output, balance the adjustment, shield the external electromagnetic interference, ensure the balance of the weighing system, and ensure the stability and accuracy of the signals.

     ❯

    Make sure the power line and signal line don't contact with each other, so as not to burn the sensor. When the weighbridge is unloaded, use a multimeter to measure the output of each load cell, and adjust the potentiometer of the junction box to keep the voltage consistent.

     ❯

    According to the number of load cell, select the appropriate multi-channel junction box with the right number of inlets, generally the number of inlets of the junction box is larger than the total number of load cells.
