Tension Load Cell for Crane, Plate-ring Type, 2 ton~70 ton

SKU: SUCH-LC-T01
$154.76
● Capacity range 2 ton~100 ton ● Accuracy 0.03~0.05%F.S, sensitivity 2.0±0.1mV/V ● Operating temperature -20℃~+65℃ ● Protection class IP67, alloy steel
*
*
*
*
*
*
*
*
*
*
*
*
*
*
🚚 Free shipping
🕒 Delivery date: 6-12 days
🔁 30-day Returns
Overview

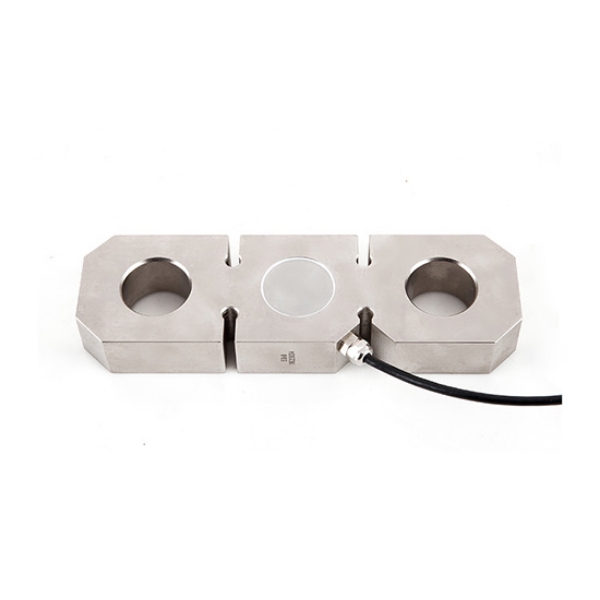

SUCH plate-ring type tension and compression load cell is manufactured from high-strength alloy steel. Its compact and robust structure offers high precision, strong overload capacity, and excellent protection (IP67). With a measuring range of 2 to 100 tons, it can withstand both tension and compression, making it suitable for measuring and controlling hook scales, cranes, and lifting equipment in ports and terminals. Mounting holes are provided at both ends of the cell for direct wire rope lashing, ensuring easy installation and safe and reliable operation. The operating temperature range is -20℃ to +65℃, and custom ranges can be customized according to customer needs.

After purchasing one SUCH load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal of load cell transmitter is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Feature

  • The excellent sealing structure facilitates installation and offers excellent corrosion and pressure resistance.
  • A wide range of measuring ranges is available, ranging from 2 tons to 70 tons, tailored to your needs.
  • Its high accuracy ensures accurate measurement even in extreme environments, such as high and low temperatures or high pressure.
  • Made of 42CrMo alloy steel, the material's high strength and toughness ensure long-term stability
  • The stable signal output, with excellent anti-interference and anti-tension properties, allows it to withstand complex working conditions.
  • The overall workmanship is fine, and it adopts advanced drilling technology and double-plate hole design, which makes the installation easy, safe and reliable.

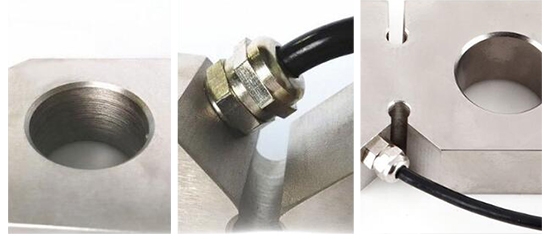

Tension load cell for crane feature

Dimension (Unit: mm)

Capacity Dimension (mm)
A B C D Ф
2~3 ton 200 65 25 130 32
5 ton 230 70 30 150 36
7~10 ton 300 90 38 200 45
15~20 ton 330 110 42 205 60
30 ton 350 126 50 216 60
50~70 ton 500 180 60 320 72

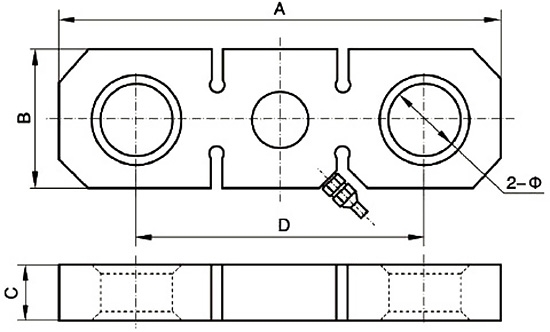

Tension load cell for crane dimension

Wiring Diagram

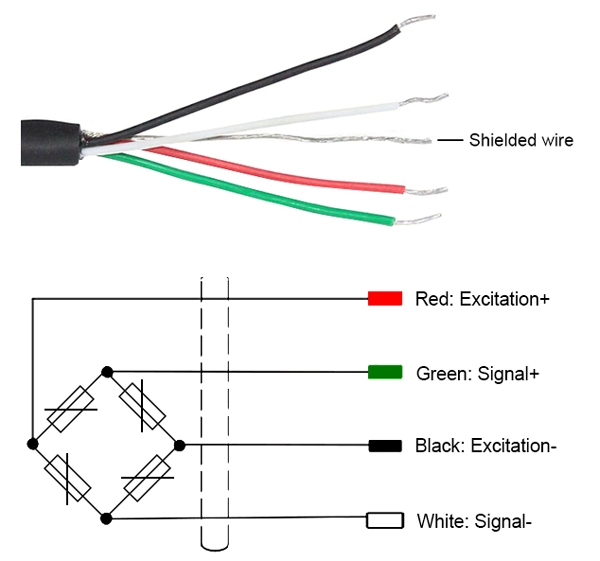

Tension load cell wiring method

Installation Case

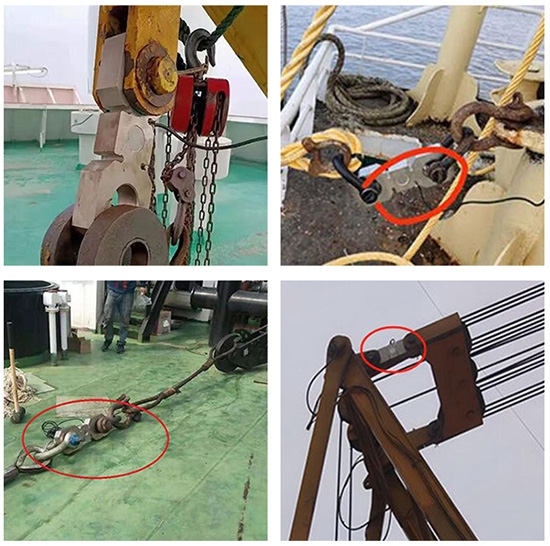

Tension load cell for crane case

Specs
Shipping Weight 1.5~50kg
Capacity Range * 2 ton~100 ton
Matched Display Controller SUCH-LCDC-TY5DA3 (Click it to the controller page)
Matched Transmitter SUCH-LCTR-NTB3K (Click it to the transmitter page)
Accuracy 0.03~0.05%F.S (linearity + hysteresis + repeatability)
Sensitivity 2.0±0.1mV/V
Creep ±0.02%F.S/30min
Zero Output ±1%F.S
Temperature Effect on Zero ±0.02%F.S/10℃
Temperature Effect on Output ±0.02%F.S/10℃
Operating Temperature -20℃~+65℃
Input Impedance 380±10Ω
Output Impedance 350±3Ω
Insulation Resistance ≥5000MΩ
Safety Overload 150%F.S
Bridge Voltage (excitation voltage) DC 10V
Material Alloy steel
Protection Class IP67
Cable Length 3m (<5ton), 6m (≥5ton)
Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White
Certification CE
Application

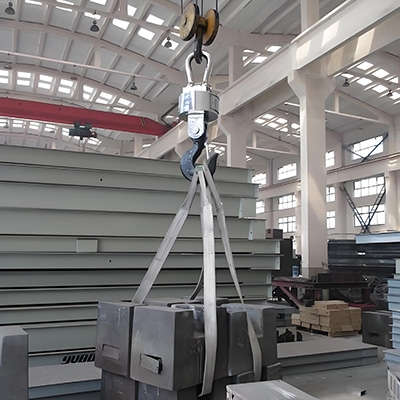

Hook scale

Hook Scale

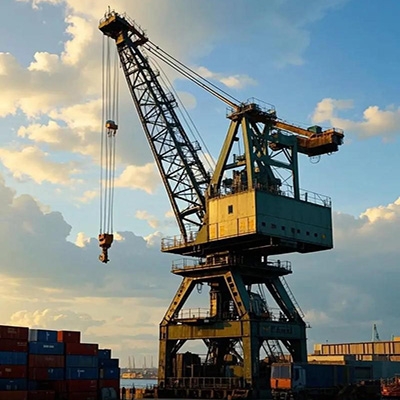

Port crane

Port Crane

Dock crane

Dock Crane

FAQ

This sensor operates based on the principle of strain gauge measurement. When an external force acts on the elastic element of the plate-ring structure, the internal strain gauge deforms and changes its resistance. A Wheatstone bridge circuit converts this resistance change into an electrical signal, outputting a voltage signal proportional to the applied force, enabling accurate measurement of tension or compression.

It is widely used in hook scales, cranes, port and terminal lifting equipment, tension testing systems, industrial weighing and process control, and stress monitoring of ship and bridge structures.

The plate-ring structure is compact and sturdy, capable of simultaneously withstanding tension and compression, with high rigidity and excellent linearity. The double-plate-hole design facilitates installation, allows for direct wire rope tying, and provides a stable and reliable structure.
