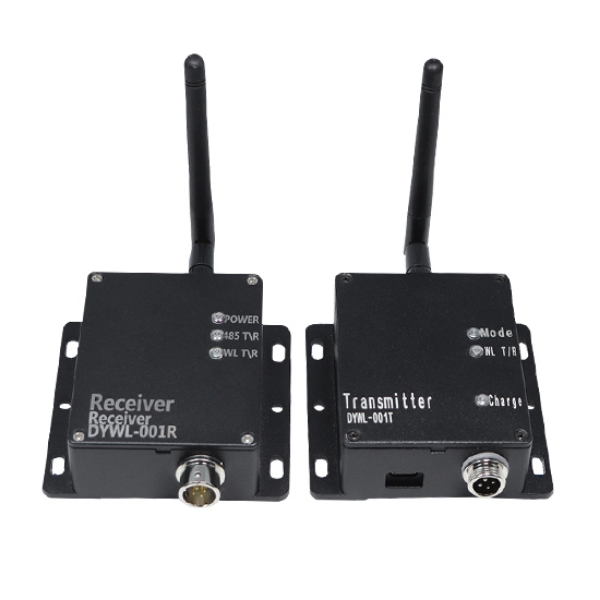

Wireless Load Cell Transmitter and Receiver, 100m

High quality wireless load cell transmitter and receiver for sale that can transmit wirelessly up to 100 meters. The wireless weighing module consists of a receiver and a transmitter powered by a 3200mAh battery that can be used for up to 30 hours. With a sampling rate of 80Hz, an overall protection rating of IP65 and an operating temperature of -25°C to 50°C. The SUCH wireless load cell transmitter and receiver automatically capture the peaks and valleys of the device in real time and analyze the status of the sensors, making it suitable for industrial weighing and logistics.

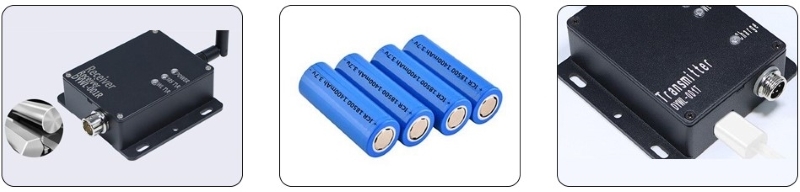

Feature

• High Quality Materials: The transmitter and receiver of the wireless load cell are made of high quality aluminum alloy shell, which is sturdy and durable.
• Battery Powered: Lithium battery power supply provides efficient energy for long-time operation of the wireless weighing module while ensuring safety.
• Long Range Transmission: The wireless load cell transmitter and receiver can transmit up to 100 meters in an open area.
• Long Battery Life: 10 to 30 hours of continuous operation on a single charge, suitable for a wide range of industrial and field applications.
• Efficient Data Collection: Real-time capture of peaks and valleys to accurately analyze the load cell status.
• IP65 Protection: The weighing module is protected against dust and water to ensure reliability in outdoor and industrial environments.

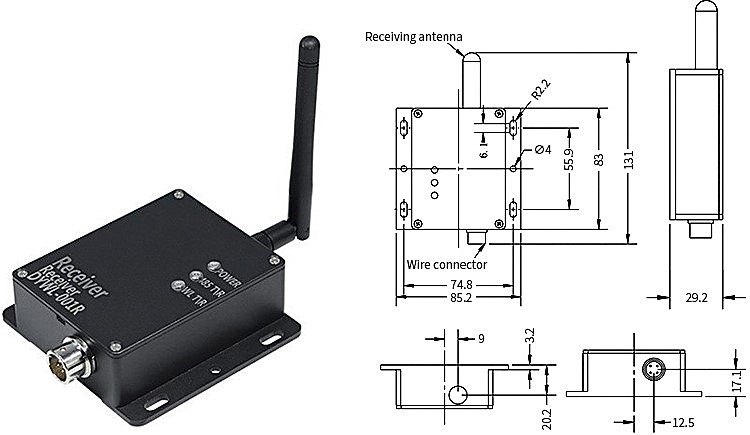

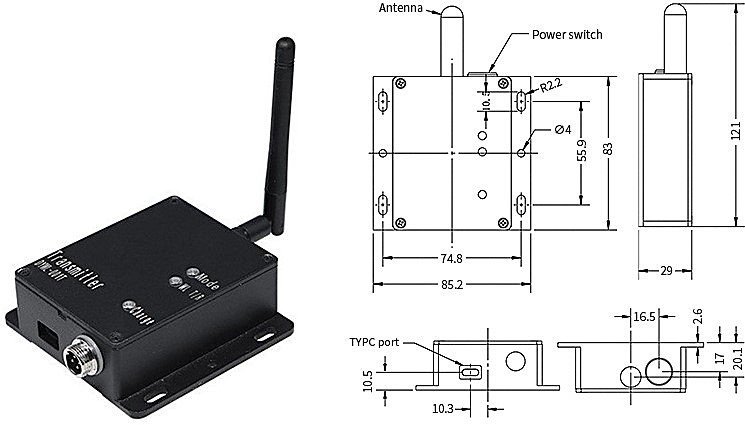

Dimension (Unit:mm)

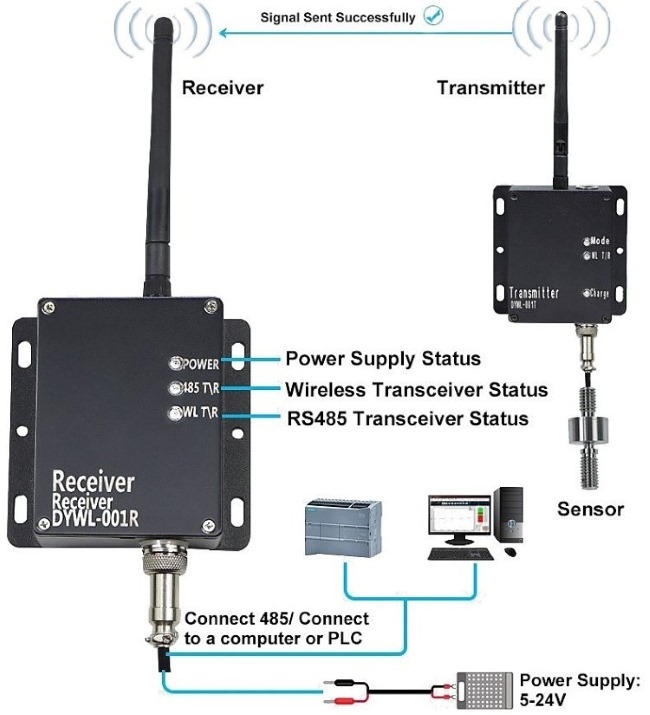

Display Instructions and Connections
