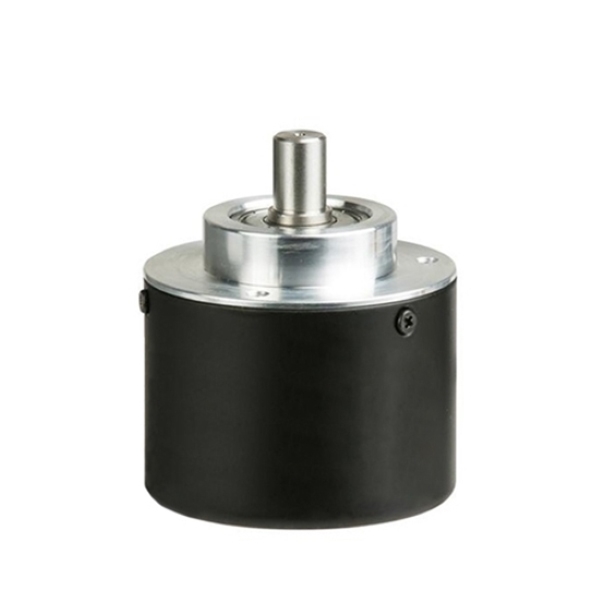

Shaft Type Optical Incremental Rotary Encoder, 5000 ppr

0 review(s) | Add your review

SKU: SUCH-IRE-5000PS

$299.95

● Resolution 5000 ppr ● Maximum shaft speed 5000 r/min ● Operating temperature -30~+85℃ ● Storage temperature -35~+95℃

Cable Length *
Output Mode *
Voltage *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The low cost incremental encoder uses an 8mm diameter stainless steel shaft and a 58mm diameter housing. The SUCH shaft-type optical incremental rotary encoder operates in a temperature range of -30~+85℃ (-22~+185℉), offers multiple output modes, and features high reliability, high resolution, and high quality. The 5000 ppr incremental rotary encoder is shock and vibration-resistant, ensuring stable operation in complex industrial environments.

Feature

Wide Temperature Range Adaptability: Operating temperature -30～+85℃, storage temperature -35～+95℃, strong adaptability to high and low temperature environments.
Stable Shaft Load Capacity: Can withstand radial 50 N and axial 20 N shaft loads, reliable mechanical structure, suitable for various installation conditions.
Robust and Durable: The incremental rotary encoder adopts a metal housing and stainless steel shaft, ensuring a long service life and meeting the needs of long-term high-speed industrial applications.

Dimension (Unit:mm)

Incremental rotary shaft encoder dimension

Wiring

Color	Signal
Red	Vcc
Black	GND
Green	A
White	B
Yellow	Z
Brown	A-
Gray	B-
Orange	Z-

Specs

Maximum Shaft Speed	5000 r/min
Starting Torque	<0.03Nm (25℃)
Maximum Shaft Load	Radial load: 50N, axial load: 20N
Shock Resistance	50G/11ms
Anti-vibration	10G (10~2000Hz)
Rotational Inertia	4*10^-8kgm²
Operating Temperature	-30~+85℃ (-22~+185℉)
Storage Temperature	-35~+95℃ (-31~+203℉)
Protection Level	IP51
Weight	100g

Electrical Parameters

Output Circuit	Open-collector		Voltage
Supply Voltage Vcc	DC 5V±0.2	DC 5~24V	DC 5V±0.2/DC 5~24V
Current Consumption	≤60mA		≤60mA
Output High Level	≥3.5V	≥Vcc-2.5V	-
Output Low Level	≤0.5V	≤0.5V	-
Rise Time Tr	≤500ns	≤1500ns	-
Fall Time Tf	≤100ns	≤300ns	-
Maximum Frequency Response	0 ~ 100kHz

Output Circuit	Push-pull	Line Driver
Supply Voltage Vcc	DC 5V±0.2/DC 5~24V	DC 5V±0.2	DC 5~24V
Current Consumption	≤60mA	≤100mA
Output High Level	-	≥2.5V	≥Vcc-2.5V
Output Low Level	-	≤0.5V	≤1.0V
Rise Time Tr	-	≤200ns	≤500ns
Fall Time Tf	-	≤200ns	≤200ns
Maximum Frequency Response	0 ~ 100kHz

Model Selection

Shaft Type	S: Shaft
Diameter of Shell	58: 58mm
Diameter of Shaft	08: 8mm
Connection Type	G: Cable edge output
Cable Length*	1: 1m 2: 2m 3: 3m 4: 4m
Resolution	5000: 5000 ppr
Production Identifier	B
Z Signal	M: Output 1 if receiving Z signal
Z Signal Wavelength	Default: 1T
Output Mode *	C: Open-collector NPN CP: Open-collector PNP T: Voltage output NPN+R P: Push-pull output NPN+PNP L: Line driver 26LS31 K: Line driver 7272
Voltage *	5: +5VDC 830: +8~30VDC

Note: * indicates optional parameters. You can select parameters from the drop-down list. Some custom parameters cannot be selected directly from the list. Please contact us for assistance.

Application

CNC Machine Tool

Robot

Printing Machine

FAQ

Q1: What are the installation precautions for rotary encoders?❯

When installing a rotary encoder, ensure shaft concentricity and avoid radial and axial forces. Do not strike the shaft end; use a flexible coupling to reduce mechanical stress. Securely fix the encoder to prevent vibration; ensure proper shielding and grounding during wiring to avoid electromagnetic interference.

Q2: How to zero an incremental encoder without a Z-phase signal?❯

Without a Z-phase (Index), the system typically uses a mechanical limit switch or an external origin sensor for zeroing. Alternatively, the encoder can be moved to a set reference position after power-on as the zero point.

Q3: How to select the pulses per revolution (PPR) for an incremental encoder?❯

Select the rotary encoder based on the required positioning accuracy and system speed. Higher PPR results in higher resolution but also requires greater controller processing power. A general calculation method is: Required minimum angle or linear resolution = 360° ÷ (PPR × decoding multiple).
