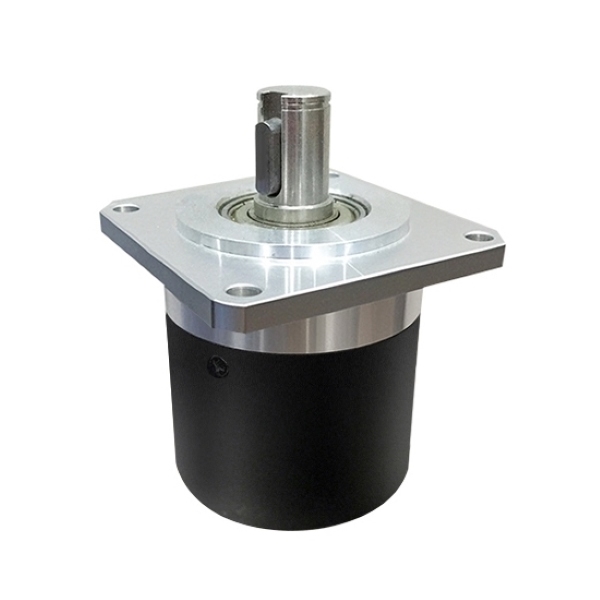

Square Flange Optical Incremental Encoder, 600 ppr

0 review(s) | Add your review

SKU: SUCH-IRE-600PS

$181.59

● Resolution 600 ppr ● Diameter of shell 58mm ● Diameter of shaft 15mm ● Maximum shaft speed 5000 r/min

Cable Length *
Output Mode *
Voltage *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

SUCH high-quality optical incremental encoder with square flange is available for sale. This square flange incremental encoder features a 58mm diameter metal housing and a 15mm diameter stainless steel shaft, a resolution of 600ppr, and a starting torque of <0.03Nm. This 600ppr incremental rotary encoder can operate in temperatures ranging from -30°C to +85°C, has an IP51 protection rating, and is suitable for industrial applications such as robots, workbenches, injection molding machines, electronic equipment, and printing and packaging machinery.

Feature

The encoder uses a dedicated ASIC chip, ensuring precise and stable signal processing and guaranteeing pulse output.
It is robust and reliable, resistant to wear and tear even after prolonged use, and can meet the requirements of long-term high-frequency operation in industrial settings.
The incremental encoder exhibits outstanding anti-interference capabilities, maintaining stable output even under complex electromagnetic conditions.
The square flange encoder is compact and has a simplified structure, making it suitable for various space-constrained automation devices.

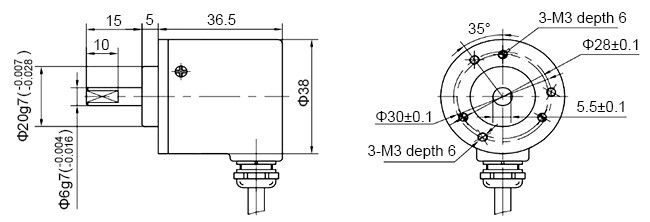

Dimension (Unit:mm)

Optical incremental encoder size

Wiring

Signal	Color	5 pin plug	7 pin plug	9/10 pin plug	19 pin plug
Vcc	Red	3	1	1	8
GND	Black	5	4	4	10, 12
A	Green	1	3	5	1
B	White	2	5	3	3
Z	Yellow	4	2	2	2
A-	Brown	-	-	7	13
B-	Gray	-	-	6	15
Z-	Orange	-	-	8	14
Shielded wire	Copper	-	6	9	17

Specs

Maximum Shaft Speed	5000 r/min
Starting Torque	<0.03Nm (25℃)
Maximum Shaft Load	Radial load: 50N, axial load: 20N
Shock Resistance	50G/11ms
Anti-vibration	10G (10~2000Hz)
Rotational Inertia	4*10^-8kgm²
Operating Temperature	-30~+85℃ (-22~+185℉)
Storage Temperature	-35~+95℃ (-31~+203℉)
Protection Level	IP51
Weight	100g

Electrical Parameters

Output Circuit	Open-collector		Voltage
Supply Voltage Vcc	DC 5V±0.2	DC 5~24V	DC 5V±0.2/DC 5~24V
Current Consumption	≤60mA		≤60mA
Output High Level	≥3.5V	≥Vcc-2.5V	-
Output Low Level	≤0.5V	≤0.5V	-
Rise Time Tr	≤500ns	≤1500ns	-
Fall Time Tf	≤100ns	≤300ns	-
Maximum Frequency Response	0 ~ 100kHz

Output Circuit	Push-pull	Line Driver
Supply Voltage Vcc	DC 5V±0.2/DC 5~24V	DC 5V±0.2	DC 5~24V
Current Consumption	≤60mA	≤100mA
Output High Level	-	≥2.5V	≥Vcc-2.5V
Output Low Level	-	≤0.5V	≤1.0V
Rise Time Tr	-	≤200ns	≤500ns
Fall Time Tf	-	≤200ns	≤200ns
Maximum Frequency Response	0 ~ 100kHz

Model Selection

Shaft Type	S: Shaft+Flange
Diameter of Shell	58: 58mm
Diameter of Shaft	15: 15mm
Connection Type	G: Cable edge output
Cable Length*	1: 1m 2: 2m 3: 3m 4: 4m
Resolution	600: 600 ppr
Production Identifier	B
Z Signal	M: Output 1 if receiving Z signal
Z Signal Wavelength	Default: 1T
Output Mode *	C: Open-collector NPN CP: Open-collector PNP T: Voltage output NPN+R P: Push-pull output NPN+PNP L: Line driver 26LS31 K: Line driver 7272
Voltage *	5: +5VDC 830: +8~30VDC

Note: * indicates optional parameters. You can select parameters from the drop-down list. Some custom parameters cannot be selected directly from the list. Please contact us for assistance.

Application

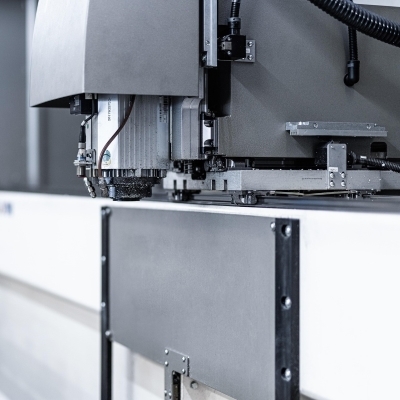

CNC Machine

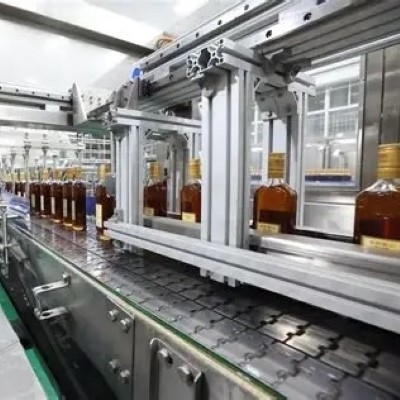

Conveying System

Lifting System

FAQ

Q1: What is a square flange optical incremental encoder?❯

A square flange optical incremental encoder is a compact position sensor that uses an optical sensing system and a square flange mounting interface. When the shaft rotates, it generates electrical pulses, providing feedback on relative position, speed, and direction.

Q2: Why does the encoder use a square flange design?❯

The square flange provides a standardized mounting interface, facilitating encoder installation and fixation, especially suitable for applications with limited space or compact structures.

Q3: What are the advantages of a square flange optical incremental encoder?❯

Easy and secure installation: The square flange design provides standardized mounting holes, ensuring a secure fixation, suitable for applications with limited space or requiring rapid installation.
Reliable relative position measurement: The incremental output pulses of the incremental encoder provide real-time feedback on the relative rotation of the shaft, suitable for closed-loop control systems.
Small size and wide applicability: The miniaturized design is suitable for compact applications such as robots, servo motors, CNC equipment, and automation systems.
