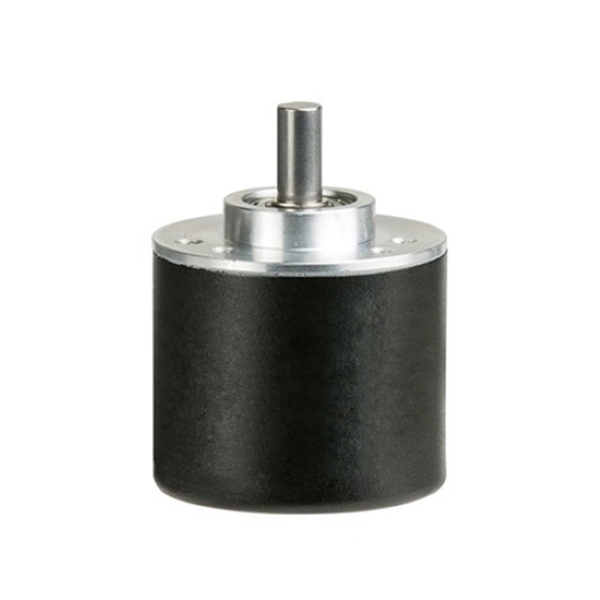

Incremental Shaft Rotational Encoder, 1200~3000 ppr

0 review(s) | Add your review

SKU: SUCH-IRE-BM

$152.96

● Resolution 1200~3000 ppr ● Maximum shaft speed 5000 r/min ● Voltage 5VDC/+8~30VDC ● Starting torque<0.03Nm

Resolution *
Cable Length *
Output Mode *
Voltage *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Cheap incremental shaft rotational encoder for sale online. SUCH incremental rotational encoder offers optional resolutions of 1200 ppr/1600 ppr/2500 ppr/3000 ppr, optional voltages of +5VDC/+8~30VDC, and 6 output modes to meet different usage needs. The shaft rotary encoder has an IP51 protection rating, uses cable edge output, has a maximum shaft speed of 5000 r/min, a starting torque of <0.03Nm, and an operating temperature of -30~+85℃ (-22~+185℉).

Feature

Compact and Practical: IP51 protection rating, lightweight, compact structure, and lightweight design facilitate integration and installation.
Stable and Reliable: Excellent anti-interference capability, stable operation in complex electromagnetic environments, and stable signal output.
Portable to Use: The incremental rotary encoder uses an internal ASIC chip, making assembly simple and the debugging process efficient and convenient.

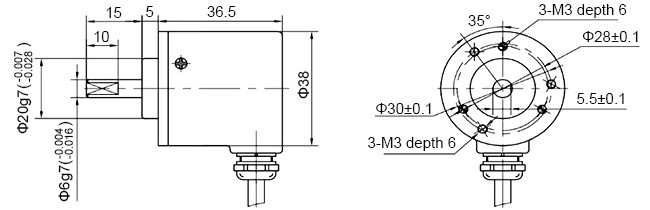

Dimension (Unit:mm)

Incremental rotary shaft encoder dimension

Wiring

Color	Signal
Red	Vcc
Black	GND
Green	A
White	B
Yellow	Z
Brown	A-
Gray	B-
Orange	Z-

Specs

Maximum Shaft Speed	5000 r/min
Starting Torque	<0.03Nm (25℃)
Maximum Shaft Load	Radial load: 50N, axial load: 20N
Shock Resistance	50G/11ms
Anti-vibration	10G (10~2000Hz)
Rotational Inertia	4*10^-8kgm²
Operating Temperature	-30~+85℃ (-22~+185℉)
Storage Temperature	-35~+95℃ (-31~+203℉)
Protection Level	IP51
Weight	100g

Electrical Parameters

Output Circuit	Open-collector		Voltage
Supply Voltage Vcc	DC 5V±0.2	DC 5~24V	DC 5V±0.2/DC 5~24V
Current Consumption	≤60mA		≤60mA
Output High Level	≥3.5V	≥Vcc-2.5V	-
Output Low Level	≤0.5V	≤0.5V	-
Rise Time Tr	≤500ns	≤1500ns	-
Fall Time Tf	≤100ns	≤300ns	-
Maximum Frequency Response	0 ~ 100kHz

Output Circuit	Push-pull	Line Driver
Supply Voltage Vcc	DC 5V±0.2/DC 5~24V	DC 5V±0.2	DC 5~24V
Current Consumption	≤60mA	≤100mA
Output High Level	-	≥2.5V	≥Vcc-2.5V
Output Low Level	-	≤0.5V	≤1.0V
Rise Time Tr	-	≤200ns	≤500ns
Fall Time Tf	-	≤200ns	≤200ns
Maximum Frequency Response	0 ~ 100kHz

Model Selection

Shaft Type	S: Shaft
Diameter of Shell	52: 52mm 58: 58mm
Diameter of Shaft	08: 8mm 10: 10mm
Connection Type	G: Cable edge output
Cable Length*	1: 1m 2: 2m 3: 3m 4: 4m
Resolution	1200: 1200 ppr 1600: 1600 ppr 2500: 2500 ppr 3000: 3000 ppr
Production Identifier	B
Z Signal	M: Output 1 if receiving Z signal
Z Signal Wavelength	Default: 1T
Output Mode *	C: Open-collector NPN CP: Open-collector PNP T: Voltage output NPN+R P: Push-pull output NPN+PNP L: Line driver 26LS31 K: Line driver 7272
Voltage *	5: +5VDC 830: +8~30VDC

Note: * indicates optional parameters. You can select parameters from the drop-down list. Some custom parameters cannot be selected directly from the list. Please contact us for assistance.

Application

Displacement Measurement

Position Measurement

Speed Control

FAQ

Q1: What factors affect encoder reproducibility?❯

Encoder reproducibility (repeatability) is mainly affected by mechanical installation accuracy (coaxiality, radial runout), bearing quality, code disk machining accuracy, signal electrical noise, temperature changes, and vibration and shock. Eccentric installation or axial movement will directly reduce repeatability.

Q2: How to use a rotary encoder to detect linear displacement?❯

Rotary encoders can be used in conjunction with ball screws, synchronous pulleys, or measuring wheels to convert rotary motion into linear motion. Linear displacement = distance moved per revolution × number of revolutions. For example, if the lead screw is 5 mm, then each revolution corresponds to a 5 mm displacement; the actual distance moved can be calculated using the number of pulses.

Q3: What is push-pull output of an incremental encoder?❯

Push-pull output is a drive method that can output both high and low levels, offering strong driving capability and good anti-interference performance. It is suitable for short to medium distance signal transmission and is more stable than open collector output.
