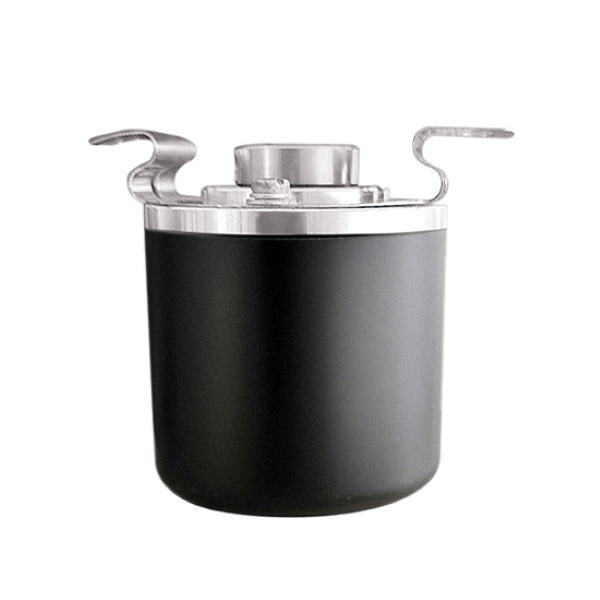

Miniature Incremental Rotary Encoder, 1000 ppr

Name: Miniature Incremental Rotary Encoder, 1000 ppr
Brand: Such.com
SKU: SUCH-IRE-1000BM
Price: 187.96 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1 review(s) | Add your review

SKU: SUCH-IRE-1000BM

$187.96

● Resolution 1000 ppr ● Operating voltage 5V/8-30V DC ● Operating temperature -30~+85℃ ● NPN/PNP/Push-pull/Line driver output

Cable Length *
Output Mode *
Voltage *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The high-quality SUCH miniature incremental rotary encoder features a 38mm housing diameter and an 8mm shaft diameter, with an IP51 waterproof rating. It can be used in industrial automation control and measurement applications such as robots, workbenches, injection molding machines, and printing and packaging machinery. The 1000 ppr incremental rotary encoder offers six output modes, optional operating voltages of 5V/8-30V, and an operating temperature range of -30~+85℃, making it flexible and suitable for various conditions.

Feature

Fast response, multiple output options, and some waterproof protection make it suitable for various needs.
The incremental rotary encoder uses ASIC devices internally, ensuring high stability and strong shock resistance.
The encoder features a robust metal housing and stainless steel shaft, with metal connectors at the cable exits for high reliability.

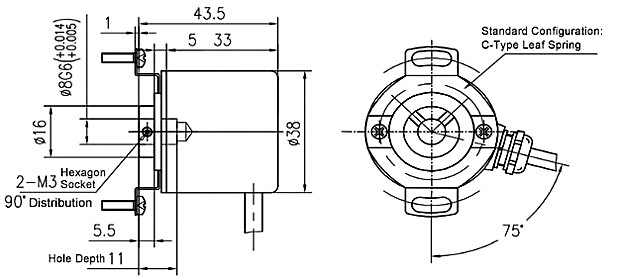

Dimension (Unit:mm)

Rotary encoder 1000 ppr dimension

Wiring

Color	Signal
Red	Vcc
Black	GND
Green	A
White	B
Yellow	Z
Brown	A-
Gray	B-
Orange	Z-

Specs

Maximum Shaft Speed	5000 r/min
Starting Torque	<0.03Nm (25℃)
Maximum Shaft Load	Radial load: 35N, axial load: 15N
Shock Resistance	50G/11ms
Anti-vibration	10G (10~2000Hz)
Rotational Inertia	4*10^-8kgm²
Operating Temperature	-30~+85℃ (-22~+185℉)
Storage Temperature	-35~+95℃ (-31~+203℉)
Protection Level	IP51
Weight	100g

Electrical Parameters

Output Circuit	Open-collector		Voltage
Supply Voltage Vcc	DC 5V±0.2	DC 5~24V	DC 5V±0.2/DC 5~24V
Current Consumption	≤60mA		≤60mA
Output High Level	≥3.5V	≥Vcc-2.5V	-
Output Low Level	≤0.5V	≤0.5V	-
Rise Time Tr	≤500ns	≤1500ns	-
Fall Time Tf	≤100ns	≤300ns	-
Maximum Frequency Response	0 ~ 100kHz

Output Circuit	Push-pull	Line Driver
Supply Voltage Vcc	DC 5V±0.2/DC 5~24V	DC 5V±0.2	DC 5~24V
Current Consumption	≤60mA	≤100mA
Output High Level	-	≥2.5V	≥Vcc-2.5V
Output Low Level	-	≤0.5V	≤1.0V
Rise Time Tr	-	≤200ns	≤500ns
Fall Time Tf	-	≤200ns	≤200ns
Maximum Frequency Response	0 ~ 100kHz

Model Selection

Shaft Type	KP: Blind shaft
Diameter of Shell	38: 38mm
Diameter of Shaft	08: 8mm
Connection Type	G: Cable edge output
Cable Length*	1: 1m 2: 2m 3: 3m 4: 4m
Resolution	1000: 1000 ppr
Production Identifier	B
Z Signal	M: Output 1 if receiving Z signal
Z Signal Wavelength	Default: 1T
Output Mode *	C: Open-collector NPN CP: Open-collector PNP T: Voltage output NPN+R P: Push-pull output NPN+PNP L: Line driver 26LS31 K: Line driver 7272
Voltage *	5: +5VDC 830: +8~30VDC

Note: * indicates optional parameters. You can select parameters from the drop-down list. Some custom parameters cannot be selected directly from the list. Please contact us for assistance.

Application

Conveyor Belt

Packaging Machine

Textile Machine

FAQ

Q1: What is the purpose of an incremental encoder?❯

The purpose of an incremental encoder is to measure rotational speed, direction, and relative position of a rotating shaft. It generates pulses as the shaft turns, which can be counted to determine movement. Incremental encoders are commonly used in motor control, automation systems, and motion control applications where precise feedback is needed.

Q2: When to use an incremental encoder?❯

A miniature incremental encoder is suitable when you need to measure speed, direction, or relative position and do not require position retention after power loss. It is commonly used in motor control and cost-sensitive applications.

Q3: How to test an incremental rotary encoder?❯

To test an incremental encoder, connect it to a power supply and measure the output signals (A and B channels) using a multimeter or oscilloscope while rotating the shaft. You should observe pulse signals that change with rotation speed and direction.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Caleb Winslow | Date: 10/16/2026 9:18 AM

Can the 1000 PPR rotary encoder work with my existing controller?

Hello! I need to replace the encoder on a small conveyor, but I’d prefer not to change the controller or wiring if I can avoid it. The old encoder uses A and B pulse signals. How do I know which output type to select for the 1000 PPR version?

SUCH responded to this review

The encoder provides A and B signals, with an optional Z signal depending on the configuration. The output type and supply voltage need to match your controller. Please send us the specifications or wiring diagram of your existing encoder, along with your controller’s input requirements, and we can help check which configuration is suitable.
