Incremental Rotational Encoder for Robot, 2000 ppr

0 review(s) | Add your review

SKU: SUCH-IRE-2000PS

$155.24

● Resolution 2000 ppr ● Cable edge output ● Voltage 5VDC/+8~30VDC ● Protection level IP51

Cable Length *
Output Mode *
Voltage *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

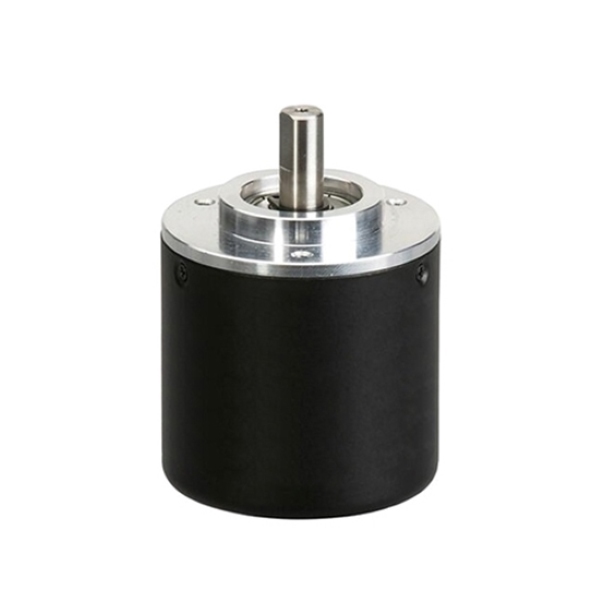

Buy a high-quality incremental rotational encoder for robot. SUCH incremental rotary encoders feature a stainless steel shaft and offer multiple output modes. These encoders have a resolution of 1600 ppr, a shaft diameter of 8 mm, a housing diameter of 58 mm, and a maximum shaft speed of 5000 rpm. They are suitable for injection molding machines, robots, and CNC machining centers.

Feature

Compact Structure: Small in size and lightweight, suitable for various automated devices in space-constrained environments.
Excellent Speed Performance: Maximum speed up to 5000 r/min, starting torque <0.03 N·m, rapid response, and smooth operation.
Strong Vibration and Shock Resistance: Incremental rotational encoders possess shock and vibration resistance capabilities, ensuring stable operation in complex industrial environments.

Dimension (Unit:mm)

Incremental rotary shaft encoder dimension

Wiring

Color	Signal
Red	Vcc
Black	GND
Green	A
White	B
Yellow	Z
Brown	A-
Gray	B-
Orange	Z-

Specs

Maximum Shaft Speed	5000 r/min
Starting Torque	<0.03Nm (25℃)
Maximum Shaft Load	Radial load: 50N, axial load: 20N
Shock Resistance	50G/11ms
Anti-vibration	10G (10~2000Hz)
Rotational Inertia	4*10^-8kgm²
Operating Temperature	-30~+85℃ (-22~+185℉)
Storage Temperature	-35~+95℃ (-31~+203℉)
Protection Level	IP51
Weight	100g

Electrical Parameters

Output Circuit	Open-collector		Voltage
Supply Voltage Vcc	DC 5V±0.2	DC 5~24V	DC 5V±0.2/DC 5~24V
Current Consumption	≤60mA		≤60mA
Output High Level	≥3.5V	≥Vcc-2.5V	-
Output Low Level	≤0.5V	≤0.5V	-
Rise Time Tr	≤500ns	≤1500ns	-
Fall Time Tf	≤100ns	≤300ns	-
Maximum Frequency Response	0 ~ 100kHz

Output Circuit	Push-pull	Line Driver
Supply Voltage Vcc	DC 5V±0.2/DC 5~24V	DC 5V±0.2	DC 5~24V
Current Consumption	≤60mA	≤100mA
Output High Level	-	≥2.5V	≥Vcc-2.5V
Output Low Level	-	≤0.5V	≤1.0V
Rise Time Tr	-	≤200ns	≤500ns
Fall Time Tf	-	≤200ns	≤200ns
Maximum Frequency Response	0 ~ 100kHz

Model Selection

Shaft Type	S: Shaft
Diameter of Shell	38: 38mm
Diameter of Shaft	06: 6mm
Connection Type	G: Cable edge output
Cable Length*	1: 1m 2: 2m 3: 3m 4: 4m
Resolution	2000: 2000 ppr
Production Identifier	B
Z Signal	M: Output 1 if receiving Z signal
Z Signal Wavelength	Default: 1T
Output Mode *	C: Open-collector NPN CP: Open-collector PNP T: Voltage output NPN+R P: Push-pull output NPN+PNP L: Line driver 26LS31 K: Line driver 7272
Voltage *	5: +5VDC 830: +8~30VDC

Note: * indicates optional parameters. You can select parameters from the drop-down list. Some custom parameters cannot be selected directly from the list. Please contact us for assistance.

Application

CNC Machine

Conveying System

Lifting System
