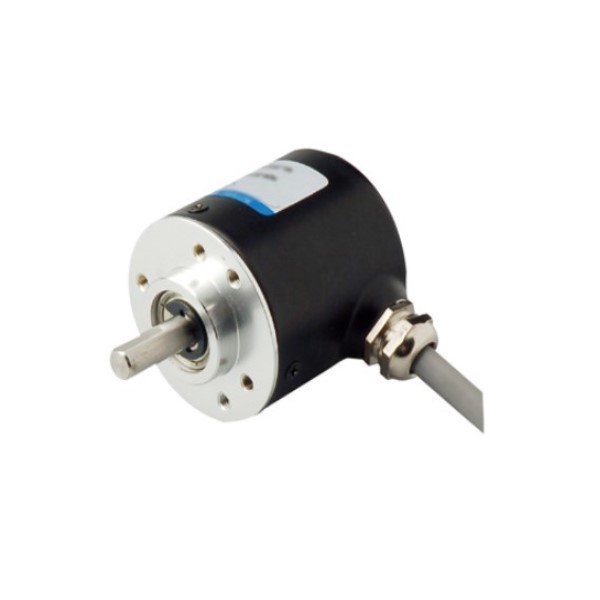

    Picture of Miniature Optical Incremental Encoder, 400 ppr Picture of Miniature Optical Incremental Encoder, 400 ppr Picture of Miniature Optical Incremental Encoder, 400 ppr

    Miniature Optical Incremental Encoder, 400 ppr

    0 review(s) | Add your review
    SKU: SUCH-IRE-400PS
    $142.22
    ● Resolution 400 ppr ● Six optional output methods ● Diameter of shell 38mm ● Diameter of shaft 6mm
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Factory direct sales SUCH miniature optical incremental encoders. These encoders feature a stainless steel shaft and metal housing, are compact with a housing diameter of 38mm and a shaft diameter of 8mm, and are easy to install. The 400ppr compact rotary incremental encoder has selectable voltages of +5VDC/+8~30VDC, side cable output, selectable cable lengths of 1m/2m/3m/4m, and 6 output modes.

    Feature

    • Modular design for easy installation and accurate output pulses.
    • The compact structure of the miniature optical incremental encoder makes it suitable for automated equipment with limited installation space.
    • The incremental rotary encoder uses a dedicated ASIC chip for stable and reliable signal processing.
    • The robust and durable overall structure, along with the stainless steel shaft, is suitable for long-term, high-frequency operation in industrial settings.

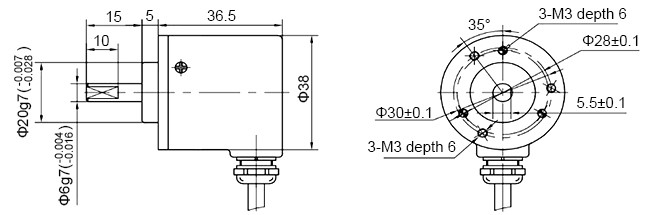

    Dimension (Unit:mm)

    Miniature optical encoder dimension

    Wiring

    Color Signal
    Red Vcc
    Black GND
    Green A
    White B
    Yellow Z
    Brown A-
    Gray B-
    Orange Z-
    Specs
    Maximum Shaft Speed 5000 r/min
    Starting Torque <0.03Nm (25℃)
    Maximum Shaft Load Radial load: 50N, axial load: 20N
    Shock Resistance 50G/11ms
    Anti-vibration 10G (10~2000Hz)
    Rotational Inertia 4*10-8kgm2
    Operating Temperature -30~+85℃ (-22~+185℉)
    Storage Temperature -35~+95℃ (-31~+203℉)
    Protection Level IP51
    Weight 100g


    Electrical Parameters

    Output Circuit Open-collector Voltage
    Supply Voltage Vcc DC 5V±0.2 DC 5~24V DC 5V±0.2/DC 5~24V
    Current Consumption ≤60mA ≤60mA
    Output High Level ≥3.5V ≥Vcc-2.5V -
    Output Low Level ≤0.5V ≤0.5V -
    Rise Time Tr ≤500ns ≤1500ns -
    Fall Time Tf ≤100ns ≤300ns -
    Maximum Frequency Response 0 ~ 100kHz



    Output Circuit Push-pull Line Driver
    Supply Voltage Vcc DC 5V±0.2/DC 5~24V DC 5V±0.2 DC 5~24V
    Current Consumption ≤60mA ≤100mA
    Output High Level - ≥2.5V ≥Vcc-2.5V
    Output Low Level - ≤0.5V ≤1.0V
    Rise Time Tr - ≤200ns ≤500ns
    Fall Time Tf - ≤200ns ≤200ns
    Maximum Frequency Response 0 ~ 100kHz


    Model Selection

    Shaft Type S: Shaft
    Diameter of Shell 38: 38mm
    Diameter of Shaft 06: 6mm
    Connection Type G: Cable edge output
    Cable Length* 1: 1m
    2: 2m
    3: 3m
    4: 4m
    Resolution 400: 400 ppr
    Production Identifier B
    Z Signal M: Output 1 if receiving Z signal
    Z Signal Wavelength Default: 1T
    Output Mode * C: Open-collector NPN
    CP: Open-collector PNP
    T: Voltage output NPN+R
    P: Push-pull output NPN+PNP
    L: Line driver 26LS31
    K: Line driver 7272
    Voltage * 5: +5VDC
    830: +8~30VDC

    Note: * indicates optional parameters. You can select parameters from the drop-down list. Some custom parameters cannot be selected directly from the list. Please contact us for assistance.

    Application

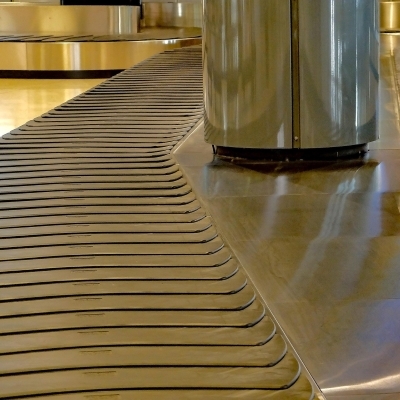

    Incremental encoder for conveyor belt



    Conveyor Belt

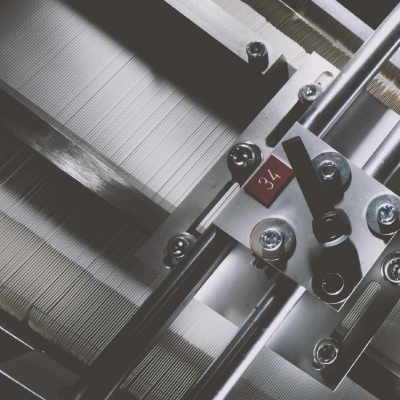

    Incremental encoder for packaging machine



    Packaging Machine

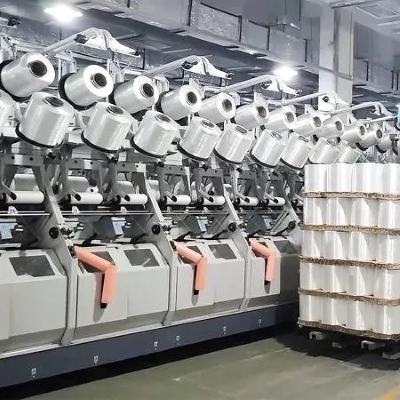

    Incremental encoder for textile machine



    Textile Machine

    FAQ
    ❯

    A miniature optical incremental encoder is a compact position sensor that uses light and an encoder disk to generate pulses as the shaft rotates. It can provide relative position and speed feedback.

    ❯

    400 PPR (pulses per revolution) means that the encoder outputs 400 electrical pulses per 360° of shaft rotation. Higher PPR values ​​provide finer motion resolution.

    ❯

    Each pulse represents a rotation angle of 360° / 400 = 0.9°. Using quadrature decoding (x4 mode), the effective step size can reach 1600 counts per revolution.
