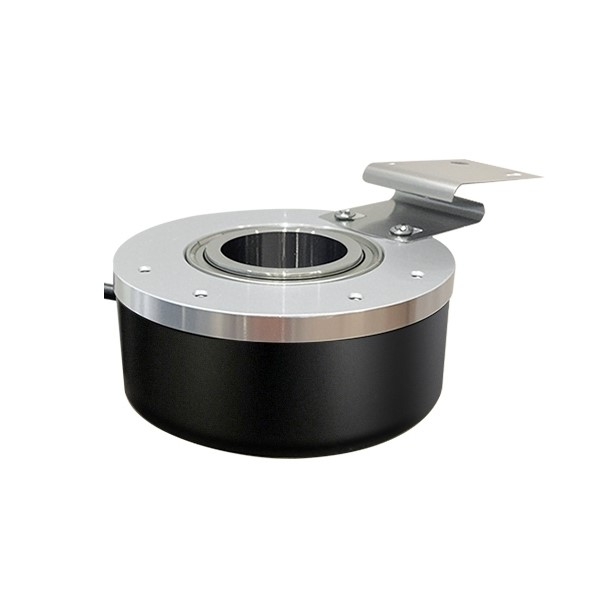

Hollow Shaft Optical Incremental Encoder, 200~5400 ppr

0 review(s) | Add your review

SKU: SUCH-IRE-PH

$237.46

● Diameter of shell 80mm ● Voltage +5VDC/+8~30VDC ● Protection level IP51 ● Resolution 200/1800/2048/4000/4096/5400 ppr

Resolution *
Cable Length *
Output Mode *
Voltage *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

High-quality hollow shaft optical incremental encoders are available for sale. SUCH incremental rotary encoders utilize a hollow shaft, allowing for connection to the motor output shaft. They are available with optional voltages of 5V DC/8-30V DC, six output modes, and resolutions ranging from 200 to 5400 ppr. These hollow shaft incremental rotary encoders can be used in industrial automation control and measurement applications such as robotics, workbenches, electronic equipment, printing and packaging machinery, and non-standard equipment.

Feature

ASIC Devices: High reliability, long service life, and strong anti-interference performance.
Rugged and Durable: The stainless steel shaft and metal housing are robust and impact-resistant, offering high stability and strong protection.
Easy Installation: The hollow shaft incremental encoder uses a keyless locking ring fixing method, making installation simple.

Dimension (Unit:mm)

Hollow shaft encoder dimension

Wiring

Color	Signal
Red	Vcc
Black	GND
Green	A
White	B
Yellow	Z
Brown	A-
Gray	B-
Orange	Z-

Specs

Maximum Shaft Speed	5000 r/min
Starting Torque	<0.03Nm (25℃)
Maximum Shaft Load	Radial load: 35N, axial load: 15N
Shock Resistance	50G/11ms
Anti-vibration	10G (10~2000Hz)
Rotational Inertia	4*10^-8kgm²
Operating Temperature	-30~+85℃ (-22~+185℉)
Storage Temperature	-35~+95℃ (-31~+203℉)
Protection Level	IP51
Weight	100g

Electrical Parameters

Output Circuit	Open-collector		Voltage
Supply Voltage Vcc	DC 5V±0.2	DC 5~24V	DC 5V±0.2/DC 5~24V
Current Consumption	≤60mA		≤60mA
Output High Level	≥3.5V	≥Vcc-2.5V	-
Output Low Level	≤0.5V	≤0.5V	-
Rise Time Tr	≤500ns	≤1500ns	-
Fall Time Tf	≤100ns	≤300ns	-
Maximum Frequency Response	0 ~ 100kHz

Output Circuit	Push-pull	Line Driver
Supply Voltage Vcc	DC 5V±0.2/DC 5~24V	DC 5V±0.2	DC 5~24V
Current Consumption	≤60mA	≤100mA
Output High Level	-	≥2.5V	≥Vcc-2.5V
Output Low Level	-	≤0.5V	≤1.0V
Rise Time Tr	-	≤200ns	≤500ns
Fall Time Tf	-	≤200ns	≤200ns
Maximum Frequency Response	0 ~ 100kHz

Model Selection

Shaft Type	K: Hollow shaft
Diameter of Shell	80: 80mm 100: 100mm
Diameter of Shaft	20: 20mm 25: 25mm 30: 30mm
Connection Type	G: Cable edge output
Cable Length*	1: 1m 2: 2m 3: 3m 4: 4m
Resolution	200: 200 ppr 1800: 1800 ppr 2048: 2048 ppr 4000: 4000 ppr 4096: 4096 ppr 5400: 5400 ppr
Production Identifier	B
Z Signal	M: Output 1 if receiving Z signal
Z Signal Wavelength	Default: 1T
Output Mode *	C: Open-collector NPN CP: Open-collector PNP T: Voltage output NPN+R P: Push-pull output NPN+PNP L: Line driver 26LS31 K: Line driver 7272
Voltage *	5: +5VDC 830: +8~30VDC

Note: * indicates optional parameters. You can select parameters from the drop-down list. Some custom parameters cannot be selected directly from the list. Please contact us for assistance.

Application

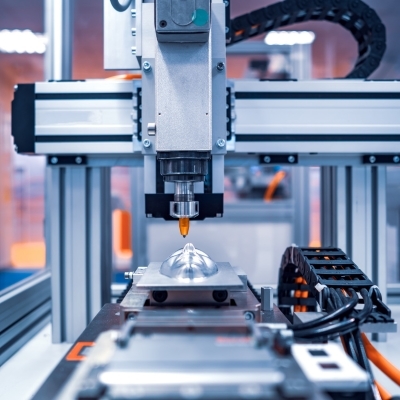

CNC Machine Tool

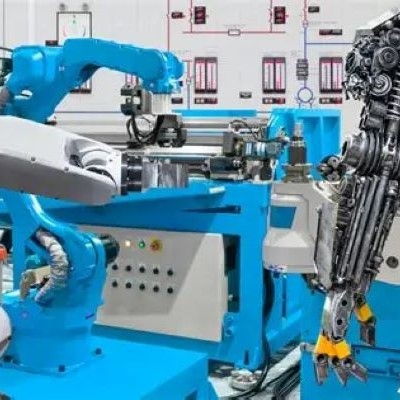

Robot

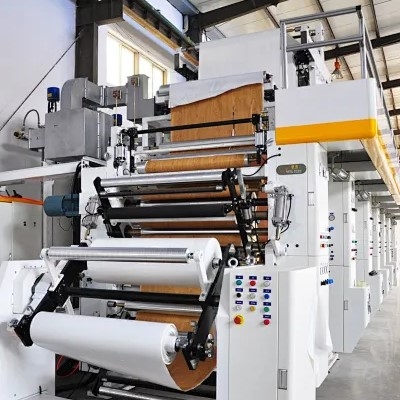

Printing Machine

FAQ

Q1: How to calculate speed from incremental encoder?❯

Rotational speed (RPM) is calculated by counting pulses over a known time interval: Rotational speed (RPM) = (Number of pulses / Pulses per revolution) * (60 / Time, in seconds). The number of pulses is the measured number of pulses, the number of pulses per revolution is the number of pulses per revolution, and the time is the measurement interval. A higher pulse frequency results in a higher rotational speed.

Q2: What are incremental encoders used for?❯

Incremental encoders are used for measuring speed, direction, and relative position. They are widely applied in motor control, conveyors, CNC machines, robotics, packaging equipment, and industrial automation systems.

Q3: What is zero position in incremental encoder?❯

The zero position in an incremental encoder is a reference point on the shaft that produces a special signal, usually from the Z channel, once per revolution. It allows the control system to establish a known starting or home position, enabling accurate position tracking relative to this reference.Since incremental encoders only provide relative movement, the zero position is essential for resetting or calibrating the system after power loss or at startup.
