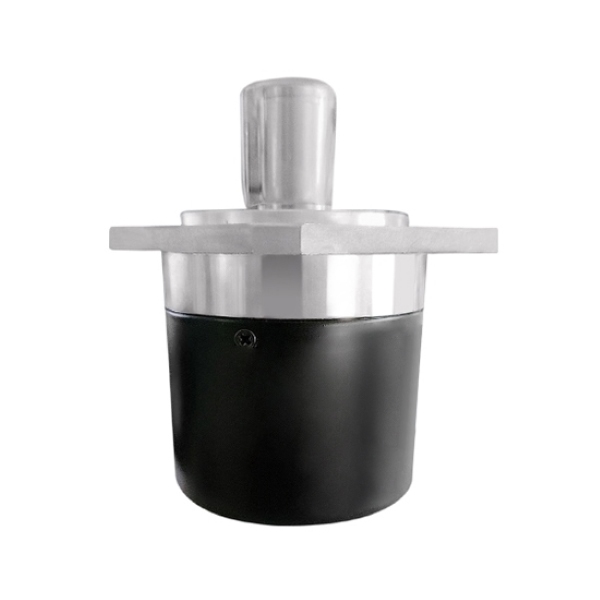

Incremental Optical Rotary Encoder with Square Flange, 1024 ppr

0 review(s) | Add your review

SKU: SUCH-IRE-1024PS

$189.63

● Resolution 1024 ppr ● Plug edge output ● Voltage +5VDC/+8~30VDC ● Maximum shaft speed 5000 r/min

Cable Length *
Output Mode *
Voltage *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
Reviews

Overview

Incremental optical rotary encoders are used in robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine tools, various office automation systems, and industrial automation control and measurement fields. The SUCH 1024 ppr incremental encoder features a square flange, starting torque <0.03 Nm, and vibration resistance of 50 G/11 ms. Its compact design ensures easy installation, long service life, and reliable performance in complex industrial environments.

Feature

Compact Design: Small and lightweight, the square flange structure facilitates installation and is suitable for automated equipment with limited installation space.
Interference Resistance: Incremental encoders have excellent interference resistance and can operate stably in complex electromagnetic environments.
Rugged and Durable: Modular design, robust and durable overall structure, good shock resistance, suitable for complex industrial environments.

Dimension (Unit:mm)

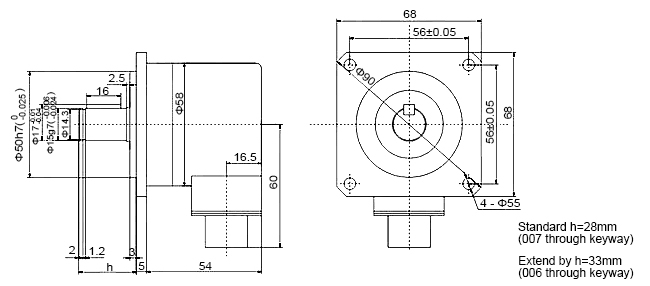

Incremental optical rotary encoder dimension

Wiring

Signal	Color	5 pin plug	7 pin plug	9/10 pin plug	19 pin plug
Vcc	Red	3	1	1	8
GND	Black	5	4	4	10, 12
A	Green	1	3	5	1
B	White	2	5	3	3
Z	Yellow	4	2	2	2
A-	Brown	-	-	7	13
B-	Gray	-	-	6	15
Z-	Orange	-	-	8	14
Shielded wire	Copper	-	6	9	17

Specs

Maximum Shaft Speed	5000 r/min
Starting Torque	<0.03Nm (25℃)
Maximum Shaft Load	Radial load: 50N, axial load: 20N
Shock Resistance	50G/11ms
Anti-vibration	10G (10~2000Hz)
Rotational Inertia	4*10^-8kgm²
Operating Temperature	-30~+85℃ (-22~+185℉)
Storage Temperature	-35~+95℃ (-31~+203℉)
Protection Level	IP51
Weight	100g

Electrical Parameters

Output Circuit	Open-collector		Voltage
Supply Voltage Vcc	DC 5V±0.2	DC 5~24V	DC 5V±0.2/DC 5~24V
Current Consumption	≤60mA		≤60mA
Output High Level	≥3.5V	≥Vcc-2.5V	-
Output Low Level	≤0.5V	≤0.5V	-
Rise Time Tr	≤500ns	≤1500ns	-
Fall Time Tf	≤100ns	≤300ns	-
Maximum Frequency Response	0 ~ 100kHz

Output Circuit	Push-pull	Line Driver
Supply Voltage Vcc	DC 5V±0.2/DC 5~24V	DC 5V±0.2	DC 5~24V
Current Consumption	≤60mA	≤100mA
Output High Level	-	≥2.5V	≥Vcc-2.5V
Output Low Level	-	≤0.5V	≤1.0V
Rise Time Tr	-	≤200ns	≤500ns
Fall Time Tf	-	≤200ns	≤200ns
Maximum Frequency Response	0 ~ 100kHz

Model Selection

Shaft Type	S: Shaft+Flange
Diameter of Shell	58: 58mm
Diameter of Shaft	15: 15mm
Connection Type	C: Plug edge output
Cable Length*	1: 1m 2: 2m 3: 3m 4: 4m
Resolution	1024: 1024 ppr
Production Identifier	B
Z Signal	M: Output 1 if receiving Z signal
Z Signal Wavelength	Default: 1T
Output Mode *	C: Open-collector NPN CP: Open-collector PNP T: Voltage output NPN+R P: Push-pull output NPN+PNP L: Line driver 26LS31 K: Line driver 7272
Voltage *	5: +5VDC 830: +8~30VDC

Note: * indicates optional parameters. You can select parameters from the drop-down list. Some custom parameters cannot be selected directly from the list. Please contact us for assistance.

Application

Incremental encoder for drum washing machine

Scanner

Packaging Machine

Smart Curtain
