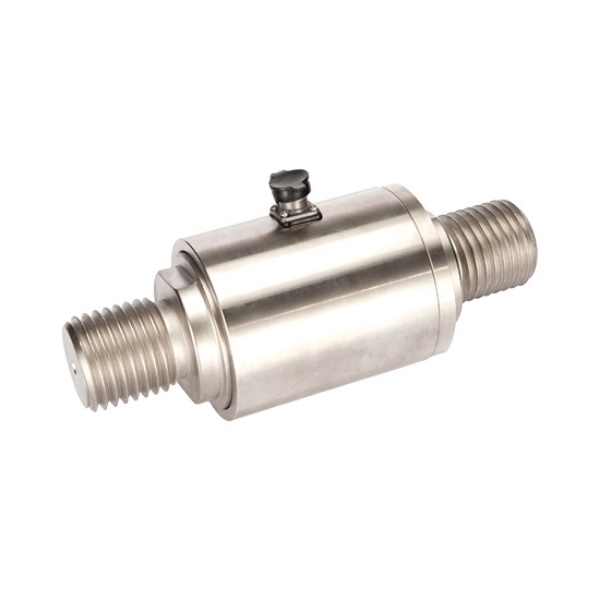

    Column Tension Load Cell, 10 ton/20 ton/50 ton to 200 ton

    0 review(s) | Add your review
    SKU: SUCH-LC-T02
    $292.87
    ● Capacity range 10 ton~200 ton ● Operating temperature -20℃~+65℃ ● Accuracy 0.05~0.1%F.S, alloy steel ● Sensitivity 1.5±0.1mV/V
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Column-type load cell is designed to accurately measure tension and compression with a range of 10 to 200 tons. The tension and compression load cell feature an external thread and a column-type construction, offering excellent resistance to off-center loading. Made of high-strength alloy steel, the SUCH load cell can be used in electronic weighing instruments, lifting equipment, and tension measurement and control. It has an operating temperature range of -20℃ to +65℃, a sensitivity of 1.5±0.1mV/V, and load capacities can be customized to meet customer requirements.

    After purchasing one SUCH load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0~5V, 0~10V, 0~±10V, or 4-20mA.

    Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

    Feature

    • Made of 42CrMo alloy steel with external thread connection, it offers strong fatigue resistance, high load capacity, and reliable performance.
    • It ensures high measurement accuracy with stable output, reliable signal transmission, and excellent anti-interference capability.
    • Featuring fine workmanship and advanced grinding technology, its flat dual-threaded design allows easy and convenient installation.

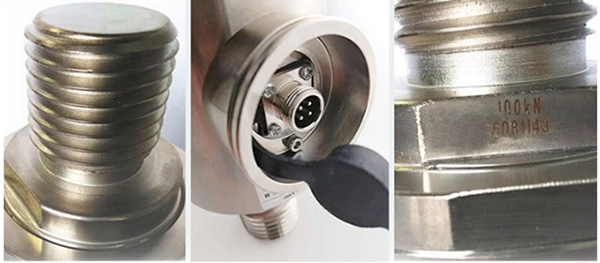

    Column tension load cell feature

    Dimension (Unit: mm)

    Capacity Dimension (mm)
    A ΦB C M
    10~20 ton 214 82~86 124 M42*4.5
    30~50 ton 276 106 157 M56*5.5
    70~100 ton 380 142 180 M76*4
    150~200 ton 500 175 220 M130*6

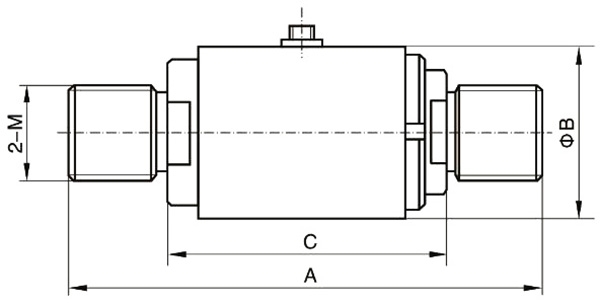

    Column tension load cell dimension

    Wiring Diagram

    Tension load cell wiring method

    Installation Case

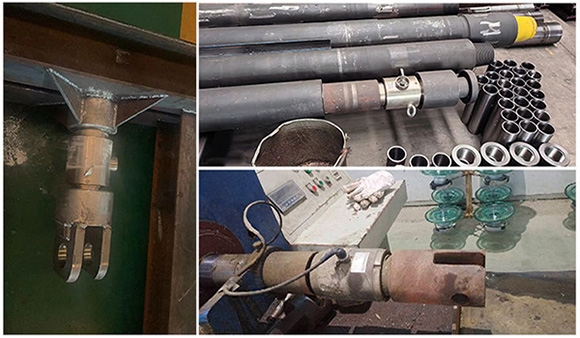

    Column tension load cell case

    Specs
    Shipping Weight 1.5~4kg
    Capacity Range * 10 ton~200 ton
    Matched Display Controller SUCH-LCDC-TY5DA3 (Click it to the controller page)
    Matched Transmitter SUCH-LCTR-NTB3K (Click it to the transmitter page)
    Accuracy 0.05~0.1%F.S (linearity + hysteresis + repeatability)
    Sensitivity 1.5±0.1mV/V
    Output Signal 0-20mV
    Creep ±0.05%F.S/30min
    Zero Output ±1%F.S
    Temperature Effect on Zero ±0.05%F.S/10℃
    Temperature Effect on Output ±0.05%F.S/10℃
    Operating Temperature -20℃~+65℃
    Input Impedance 380±10Ω or 750±15Ω
    Output Impedance 350±3Ω or 700±5Ω
    Insulation Resistance ≥5000MΩ
    Safety Overload 150%F.S
    Bridge Voltage (excitation voltage) DC 10V
    Material Alloy steel
    Protection Class IP67
    Cable Length 6m
    Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White
    Application

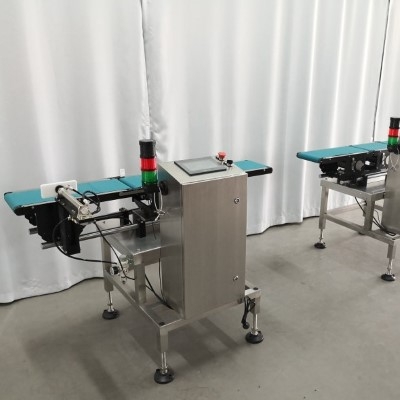

    Weighing machine

    Weighing Machine

    Lifting equipment

    Lifting Equipment

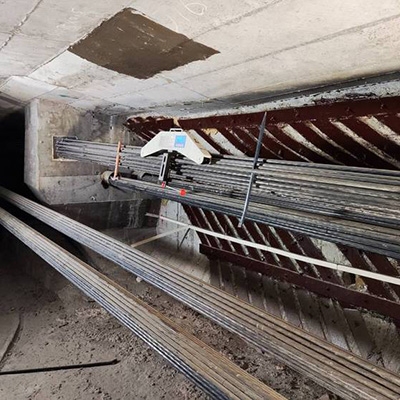

    Tension measurement

    Tension Measurement

    FAQ
    ❯

    It is made of 42CrMo alloy steel, which provides high strength, excellent fatigue resistance, and long service life.

    ❯

    It is widely used in electronic weighing instruments, hoisting equipment, tension monitoring, and industrial force control systems.

    ❯

    A tension load cell measures pulling (tensile) forces, while a compression load cell measures pushing (compressive) forces. Both work on the same principle but are designed for opposite load directions.
