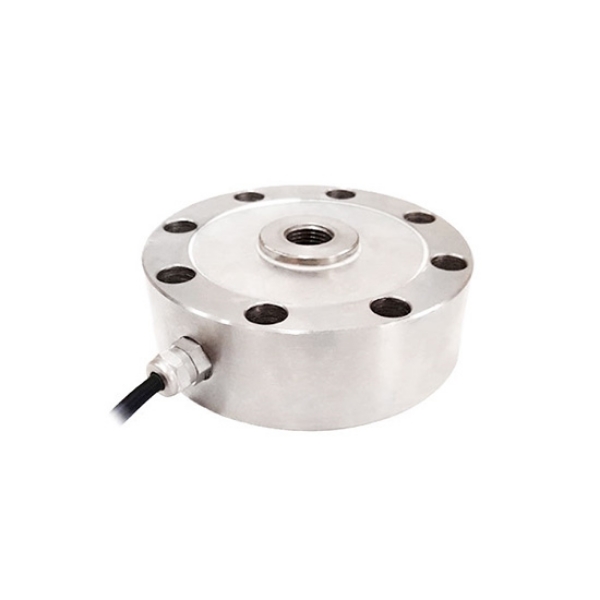

Tension and Compression Load Cell, Spoke Type

Name: Tension and Compression Load Cell, Spoke Type
Brand: Such.com
SKU: SUCH-LC-P02
Price: 146.37 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1 review(s) | Add your review

SKU: SUCH-LC-P02

$146.37

● Capacity range 500 kg~200 ton ● Accuracy 0.05%F.S ● Sensitivity 2.0±0.1mV/V, IP67 protection ● Operating temperature -20℃~+65℃

Capacity *
Module *
Accessories *
With Display Controller *
With Transmitter *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Spoke-type tension/compression load cell features a flat, symmetrical design, offering excellent eccentric load resistance and stability. With an IP67 rating, SUCH tension load cell is suitable for platform scales, truck scales, railroad scales, and warehouse level measurement and control. With a capacity range of 500 kg to 100 tons, an overall accuracy of 0.05% F.S., a sensitivity of 2.0 ± 0.1 mV/V, and an operating temperature range of -20℃ to +65℃, it is a compact, high-performance tension-compression dual-purpose load cell.

After purchasing one SUCH load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Feature

High-quality alloy steel ensures durability, high strength, and long-lasting performance.
High measurement accuracy provides precise and stable force detection.
Waterproof connector reduces mechanical shock and ensures reliable signal transmission.
Easy installation allows convenient mounting and quick setup.
Wide range of applications makes it suitable for industrial force measurement, weighing, and testing systems.

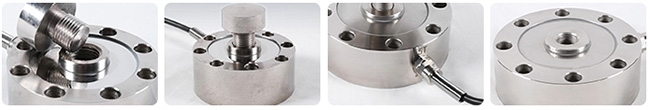

Tension compression load cell spoke type feature

Dimension (Unit: mm)

Capacity	Dimension (mm)
Capacity	ΦA	ΦB	ΦC	ΦF	M	H	E
500kg~7 ton	105	88.9	6.5	32	M16*1.5	37	34
10~25 ton	125	101.6	8.5	39	M32*1.5	52	48
30~50 ton	145	116.8	10.5	50	M40*1.5	58	54
60~100 ton	205	162	12.5	80	M60*2	85	78
200 ton	296	245	22	136	M90*3	105	100

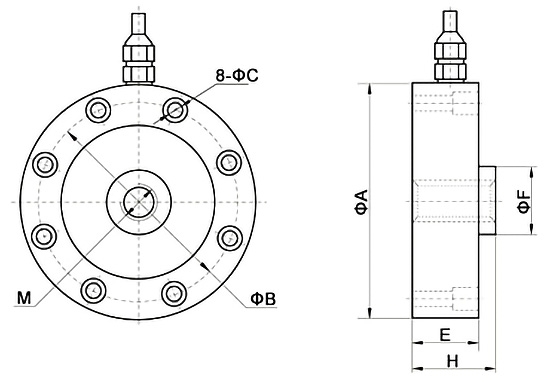

Tension compression load cell spoke type dimension

Accessories Dimension (accessories can be purchased in drop-down lists)

Capacity	Compression head dimension (mm)
Capacity	Φ	L1	L	M	SR
500kg~7 ton	31	13	28	M16*1.5	80
10~25 ton	38	24	51	M32*1.5	120
30~50 ton	50	32	62	M40*1.5	200
60~100 ton	80	42	80	M60*2	280

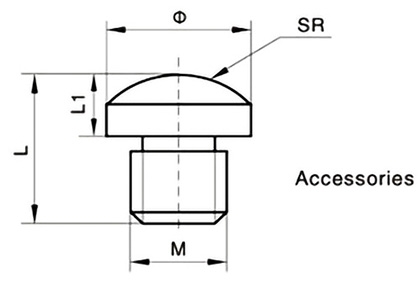

Tension compression load cell spoke type accessories dimensions

Load Cell Module Dimension (*module needs to be purchased separately)

Capacity	Dimension (mm)
Capacity	L	L1	A	A1	H	H1	Φ
500kg~7 ton	160	135	115	90	100	20	11
10~25 ton	200	160	160	125	145	25	13
30~50 ton	240	200	180	135	175	30	17
60~100 ton	300	260	240	200	240	35	17

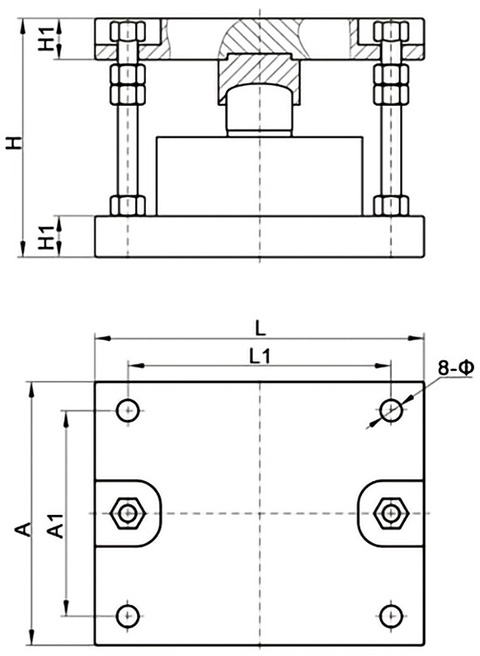

Tension compression load cell spoke type module dimensions

Wiring Method

Tension load cell wiring method

Specs

Shipping Weight	1.5~60kg
Capacity Range *	500 kg~200 ton
Matched Display Controller	SUCH-LCDC-TY5DA3 (Click it to the controller page)
Matched Transmitter	SUCH-LCTR-NTB3K (Click it to the transmitter page)
Accuracy	0.05%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.1mV/V
Creep	±0.05%F.S/30min
Zero Output	±1%F.S
Temperature Effect on Zero	±0.05%F.S/10℃
Temperature Effect on Output	±0.05%F.S/10℃
Operating Temperature	-20℃~+65℃
Input Impedance	380±10Ω or 750±15Ω
Output Impedance	350±3Ω or 700±5Ω
Insulation Resistance	≥5000MΩ
Safety Overload	150%F.S
Bridge Voltage (excitation voltage)	DC 5~10V
Response Time	3-4ms
Material	Alloy steel (Default) or stainless steel
Protection Class	IP67
Cable Length	3m (＜5 ton), 6m (≥5 ton)
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

Application

Industrial Automation

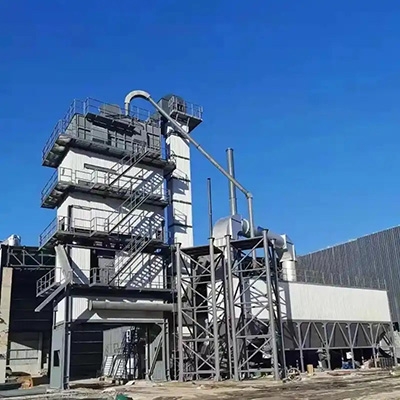

Asphalt Station

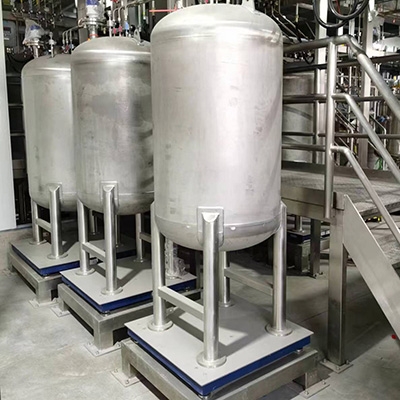

Tank Weighing

FAQ

Q1: What kind of maintenance does the tension/compression load cell require? ❯

Regularly inspect the load cell for mechanical wear, corrosion, or damage, and check connectors, wiring, and mounting for secure installation. Periodically recalibrate the sensor to maintain measurement accuracy, especially after heavy use or exposure to harsh conditions.

Q2: Where can the tension/compression load cell be used? ❯

The tension load cell is widely used in industrial applications such as platform scales, truck and rail weighbridges, material level measurement systems, and force monitoring in manufacturing or testing equipment. Its robust design and high accuracy make it suitable for both indoor and outdoor environments.

Q3: How do I install this load cell? ❯

The sensor features a low profile and standard mounting holes for easy installation. It can be directly fixed to the weighing platform or equipment structure.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Robert | Date: 6/8/2026 2:31 AM

Tension and compression load cell works well for our press calibration

Picked up this tension and compression load cell to recalibrate a custom 5-ton hydraulic press we use in the shop. The bolt pattern on the outer ring lined up perfectly with our upper die plate. Did a few cyclic lift and crush tests to verify the accuracy. Signals are coming through clean without any noticeable hysteresis during directional shifts.
