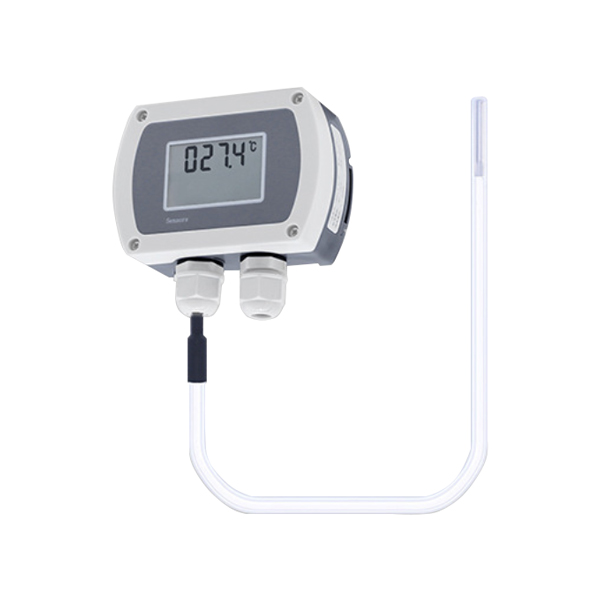

Wall Temperature Sensor with Display, -50-200°C/-200-100°C

The wall temperature sensor with display is designed for accurate temperature measurement in a range of -50°C to 200°C or -200°C to 100°C. It features a high-precision PT100 platinum resistance thermometer. The sensor is built with a corrosion-resistant probe and cable, ensuring durability in harsh environments. This SUCH sensor also offers an easy-to-read LCD display with low power consumption, providing essential temperature data. With optional output signals (4-20mA, RS485, PT100), it is suitable for a wide range of industrial and commercial applications. The compact design with rail structure and elastic clips makes installation and maintenance straightforward.

Feature

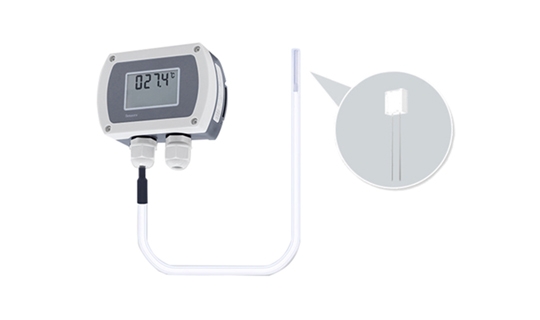

• The probe and cable are equipped with anti-corrosion protective tubes, making them more resistant to corrosion.
• The sensor features a compact design, with a rail structure and elastic fixing clips, making it easy to install and maintain on-site.
• It uses imported PT100 platinum resistance thermometers, providing high measurement accuracy with a 1/3 B-class tolerance.
• The sensor incorporates metal inserts, which are more wear-resistant and durable.
• It has an LCD display that consumes less power and provides a wide range of display information.

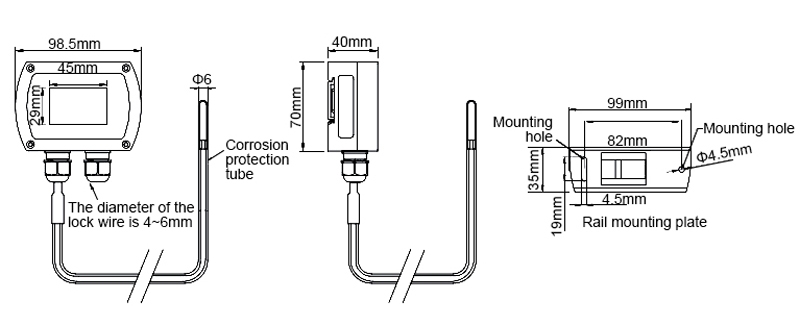

Dimension (Unit:mm)

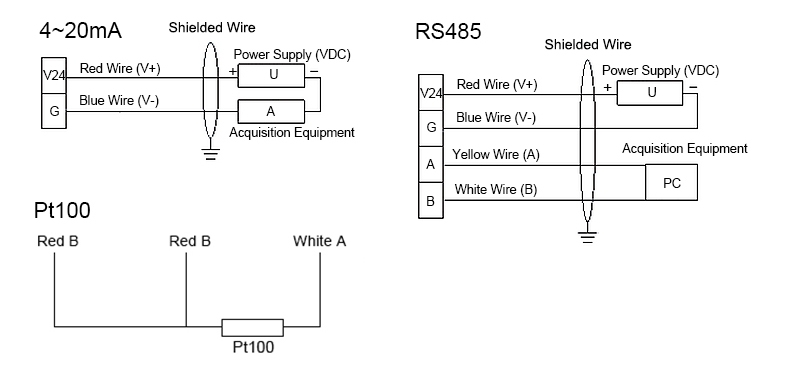

Wiring Diagram

Note: Oval symbol indicates the shield (shielded wire). All grounding points indicated must be properly connected to ground. It is recommended to use shielded twisted-pair signal cables. To prevent ground loops, the shield should be grounded at only one end — insulated and left floating at the transmitter side, and grounded at the control cabinet side.
