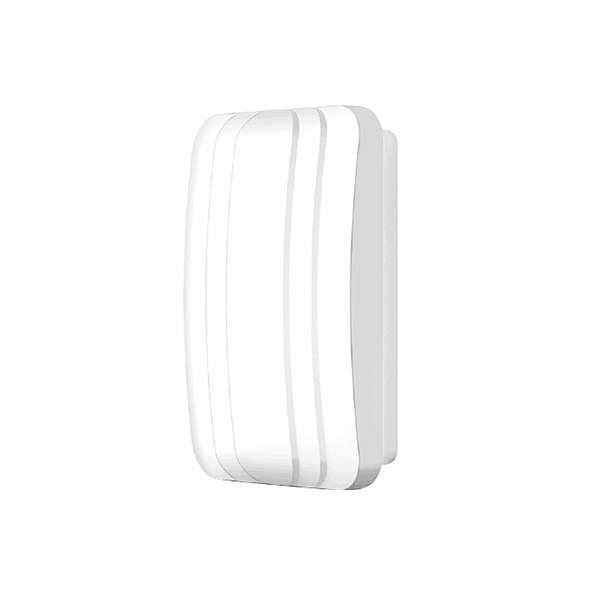

CO Detection Sensor, 0-300ppm, RS485/0-10V

0 review(s) | Add your review

SKU: SUCH-COS-CODS

$315.29

● 0-300ppm ● Electrochemical detection ● Relay output, RS485, 0-10VDC ● 24V DC/AC power input

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

This high-sensitivity electrochemical CO concentration sensor is available for sale, with a measurement range of 0~300ppm, rapid response (<30s), accuracy up to ±5%FS, and resolution of 1ppm. The CO sensor supports RS485, 0~10VDC, and relay outputs for easy integration with various control systems.

Feature

CO detection sensor feature

The complete carbon monoxide sensing and control system employs a multi-level control approach: Local control (at the unit), distribution panel control, individual unit control, and central control. A selector switch is provided at each control level to choose the desired control mode.
A unique digital switching function enables intelligent interlocking between the CO sensor and exhaust systems. Should CO concentrations exceed safe limits, the system automatically activates exhaust equipment to maintain indoor air quality at safe levels.
The SUCH CO controller features simple and reliable installation requiring minimal additional complexity.
As a controller device, the CO concentration sensor enables intelligent interlocking functionality, maximizing energy savings while ensuring CO levels remain within safe operating ranges.

Dimension (unit: mm)

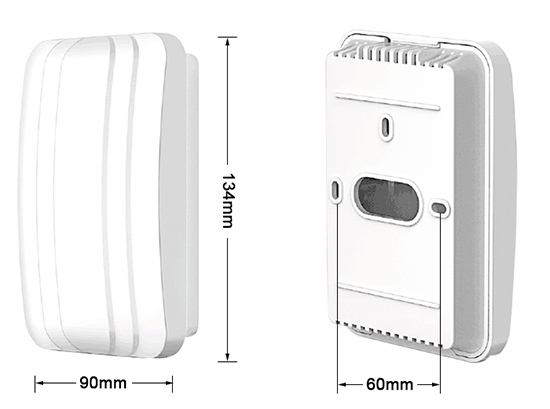

CO detection sensor dimension

Installation and Wiring

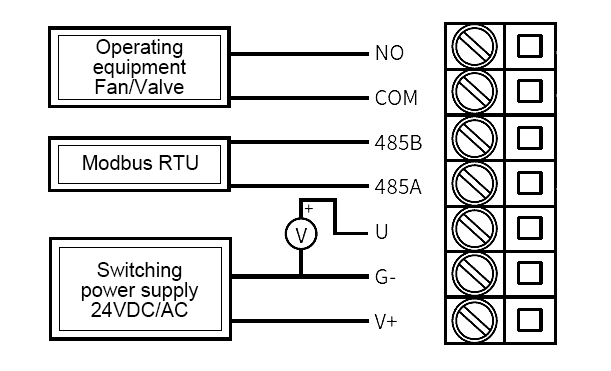

CO detection sensor installation and wiring

Specs

Measurement Range	0~300ppm
Test Method	Electrochemical detection
Power Input	24V DC/AC
Power Consumption	2.5W (average)
Signal Output	Relay output, RS485, 0~10VDC
Accuracy	≤±5%FS
Resolution	1ppm
Zero Drift	<5ppm (over lifetime)
Response Time	<30s (90%)
Operating Temperature	0~50°C
Operating Humidity	0~95%RH non-condensing
Storage Temperature	-20~60°C
Dimensions	134* 90* 37mm
Weight	100g

Application

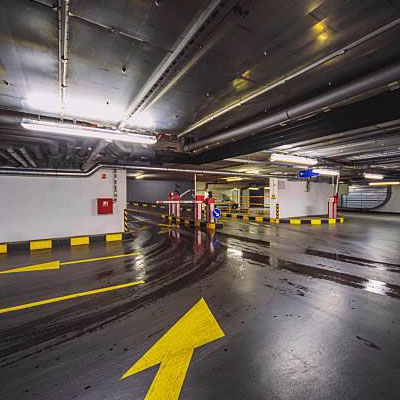

Underground Parking Garage

Commercial Building

Office Space

FAQ

Q1: How does a carbon monoxide detection sensor work? ❯

Carbon monoxide detection sensors typically utilize electrochemical principles or infrared absorption principles to measure CO concentration in the air. Electrochemical sensors generate a weak current through chemical reactions between the gas and an electrolyte solution, with the current intensity being proportional to the CO concentration.

Q2: What is the detection range of a carbon monoxide sensor? ❯

A typical detection range for CO sensors is 0–1000 ppm. This specific CO sensor has a detection range of 0–300 ppm. Sensors with higher detection ranges are also available, typically featuring high sensitivity and a low detection threshold (as low as 1 ppm). These enable early warning for trace amounts of CO in the air, allowing users to take ventilation or evacuation measures before concentrations rise, ensuring safety.

Q3: How often should a CO detection sensor be calibrated? ❯

To ensure long-term stability and accuracy, it is recommended to calibrate carbon monoxide sensors every 6 to 12 months. Calibration typically involves comparison with standard concentration gases (e.g., 100 ppm CO calibration gas). Some high-end sensors feature automatic calibration capabilities, effectively reducing maintenance frequency.
