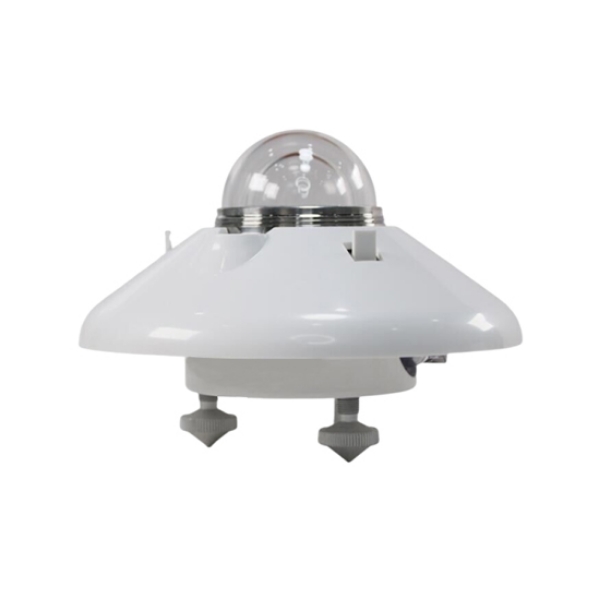

Pyranometer Solar Radiation Sensor, RS485/4-20mA

This pyranometer measures total solar irradiance across 280-3000 nm with a range of 0-2000 W/m², delivering stable and accurate performance. It uses a thermoelectric multi-junction thermopile with a high-absorption coating for high sensitivity and reliable data. The dual-layer glass dome provides up to 95% light transmittance, while the protective housing ensures durability in harsh outdoor environments. Built to WMO standards, pyranometer solar radiation sensor offers fast response, high accuracy, and long-term stability. It supports 0-20 mV, 4-20 mA, and RS485 outputs for easy integration with monitoring systems, making it suitable for meteorology, solar power, agriculture, and environmental applications.

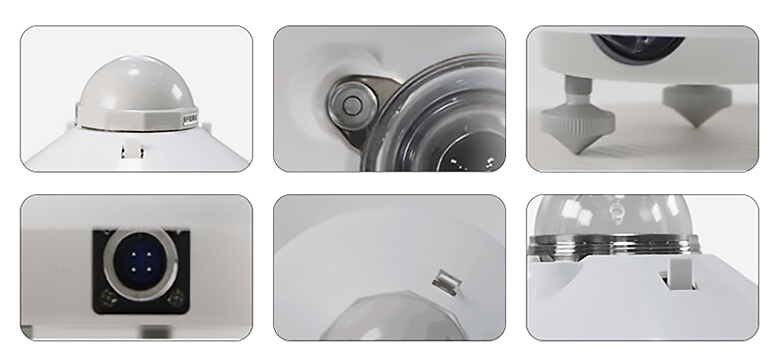

Feature

• Thermoelectric Sensing Principle: Pyranometer solar radiation sensor utilizes a multi-junction thermopile with a high-absorption black coating to generate accurate and highly sensitive radiation measurements.
• WMO-Compliant Design: Built to meet World Meteorological Organization standards for reliable global solar radiation monitoring.
• Excellent Environmental Adaptability: Engineered to maintain stable performance even in harsh outdoor conditions.
• Dual-Layer Transmissive Glass: Features high-transmittance glass with up to 95% light transmission for improved measurement accuracy.
• Protective Housing Design: Shields the glass dome from dust, impact, and weather exposure; twist-open design for easy operation.
• Leveling Nut Adjustment: Built-in level bubble and adjustable nuts allow quick horizontal alignment during installation.
• Calibration Screws: Side-threaded calibration screws enable convenient on-site adjustment and fine-tuning.
• Multiple Output Options: Supports 0–20 mV, 4–20 mA, and RS485 outputs for flexible integration with monitoring systems.
• Anti-Radiation Shield Plate: Reduces the influence of strong radiation on the sensor body, enhancing measurement stability.
• Short Response Time: Fast reaction speed ensures timely and reliable acquisition of solar irradiance data.
• High Measurement Accuracy: Provides precise and consistent radiation readings suitable for scientific and industrial applications.

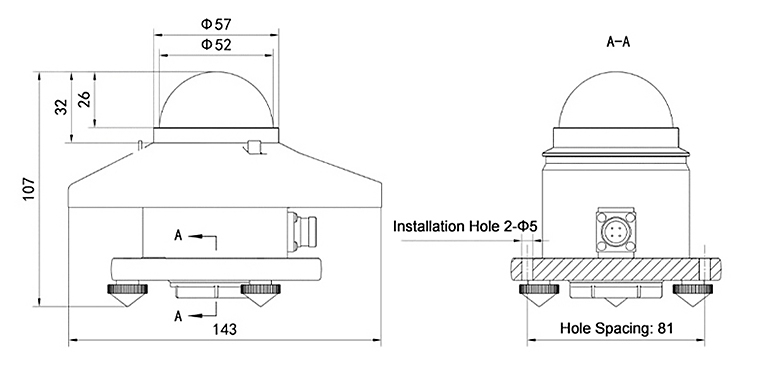

Dimension (Unit: mm)

Installation Method

• Horizontal Installation: Used for measuring total solar irradiance.
• Tilted Installation: Used for measuring solar irradiance on inclined surfaces.
• Inverted Installation: Used for measuring reflected irradiance.
• Diffuse Irradiance: When used with a solar shading device, it can measure diffuse solar radiation.
