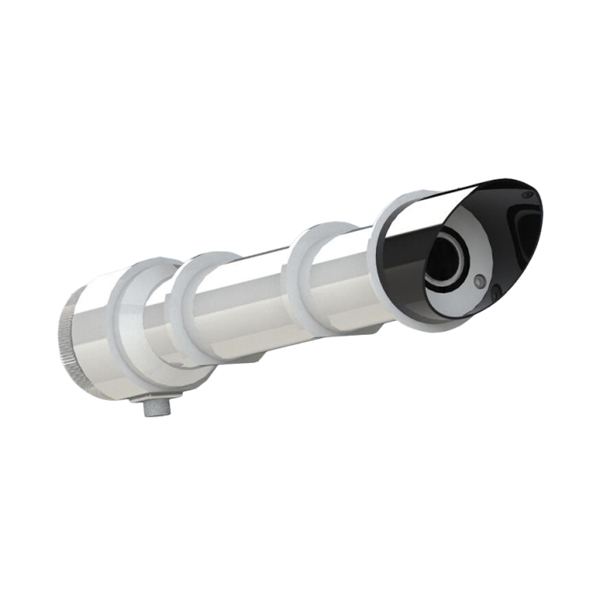

Pyranometer Sensor, 280-3000nm

SKU: SUCH-RS-PYR

$774.99

● Output signal 0-2V/4-20mA/RS485 ● 280-3000 nm spectral response ● 1 W/m² resolution ● 7-14 μV/W·m⁻² Sensitivity ● IP67 protection grade

Output Signal *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Pyranometer sensor provides accurate total solar radiation measurement with fast response and stable optical performance. Its durable, corrosion-resistant housing ensures long outdoor service life, while precise light tracking supports reliable monitoring in changing environments. Compatible with AC/DC power and offering 0-2V, 4-20mA, and RS485 outputs, the radiation sensor delivers 1 W/m² resolution and 7-14 μV/W·m⁻² sensitivity for easy integration into solar, meteorological, and environmental monitoring systems.

Feature

Pyranometer sensor feature

Streamlined Design: SUCH radiation sensor delivers high-precision optical sensing with optimized structure for stable and accurate monitoring.
Durable Housing: Built with corrosion-resistant materials and high protection levels for long service life.
Fast Response: Reacts quickly to changes in light conditions for real-time measurement.
Accurate Tracking: Maintains stable performance with reliable light-tracking capability in varying environments.
AC/DC Power Supply: Compatible with both AC and DC inputs for flexible installation.
Suitable for Harsh Environments: Designed to operate reliably under extreme weather conditions.

Detail

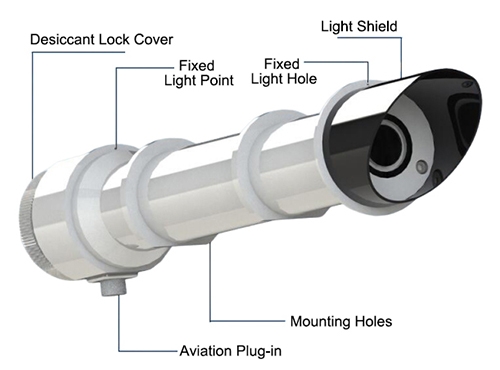

Pyranometer sensor detail

Specs

Spectral Response	280-3000 nm
Resolution	1 W/m²
Sensitivity	7-14 μV/W·m⁻²
Classification Standard	ISO 9060:1990 First Class
Response Time (95%)	≤12 s
Temperature Change Zero Drift	±3 W/m²
Non-linearity	±1.5%
Instability	±1%
Spectral Deviation	±3%
Temperature Response (-10~40°C)	±3%
Tilt Error	±1%
Field of View	4°
Internal Resistance	Approx. 100 Ω
Signal Output	Voltage: 0-20 mV; Current: 4-20 mA; Digital: RS485
Protection Grade	IP67
Product Dimensions	Φ115 × 80 mm
Product Weight	0.45 kg
Operating Temperature	-40~85°C
Operating Humidity	0~100% RH
Cable Length	Standard 1.5 m (customizable)
Product Accessories	Data cable, user manual, packaging box

Application

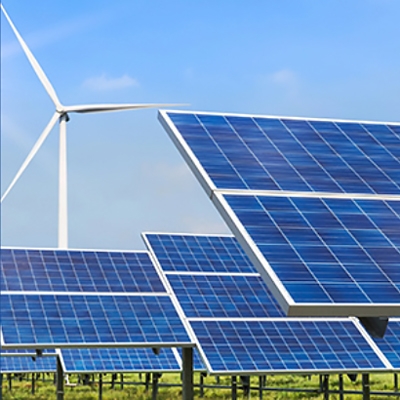

Solar Photovoltaic Power Generation

Agroforestry Ecological Research

Climate Research

FAQ

Q1: What is a pyranometer sensor? ❯

A pyranometer is a specialized instrument designed to measure global solar irradiance, capturing both direct sunlight and diffuse sky radiation over a broad spectrum.

Q2: How does a pyranometer work? ❯

It uses a thermopile sensing element that absorbs solar radiation and converts the resulting temperature difference into a small electrical signal proportional to irradiance.

Q3: What is the difference between a pyranometer and a standard light sensor? ❯

A light sensor detects mainly visible light, while a pyranometer measures total shortwave solar energy, including UV and near-infrared components, making it far more comprehensive.
