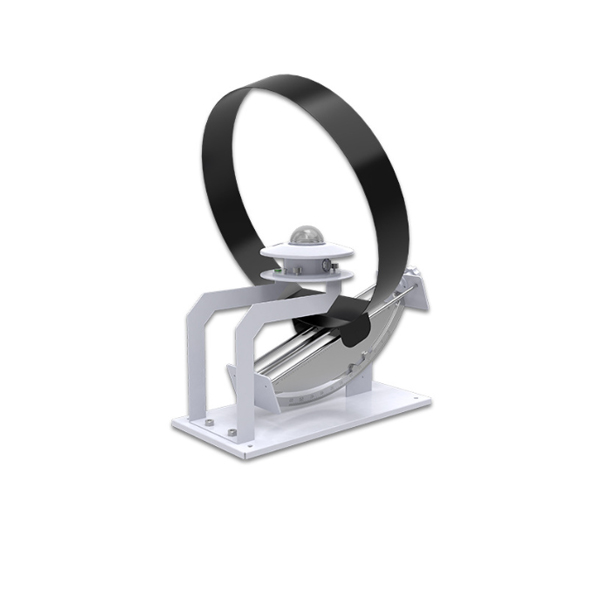

Diffuse Solar Radiation Sensor, 0-2000W/m2

Diffuse solar radiation sensor is designed for precise measurement of solar irradiance across the 0.3-3μm spectral range. Featuring a highly sensitive 7-14 μV·W⁻¹·m² thermopile element and a 95% light-transmittance quartz cover, SUCH radiation sensor delivers fast, stable, and accurate response to solar radiation. Its IP67-rated full-aluminum housing ensures durability against rain, snow, oxidation, and harsh outdoor environments, while the Φ400 ring band structure enhances diffuse radiation capture for reliable long-term performance in meteorological, photovoltaic, and environmental monitoring applications.

Feature

• 95% Light Transmittance: Radiation sensor adopts durable quartz glass with excellent optical clarity, providing up to 95% transmittance to reduce environmental interference on internal components.
• Sensitive Thermopile Element: Uses a wired thermopile sensor with a high-absorption black coating for fast response, low error, and accurate measurement with temperature compensation.
• Solar Radiation Response: Converts absorbed solar radiation into a temperature-difference voltage, enabling precise measurement of solar irradiance.
• Full Aluminum Housing (IP67 Rated): Features a corrosion-resistant aluminum enclosure with IP67 protection, offering strong resistance to rain, snow, oxidation, and harsh outdoor environments.

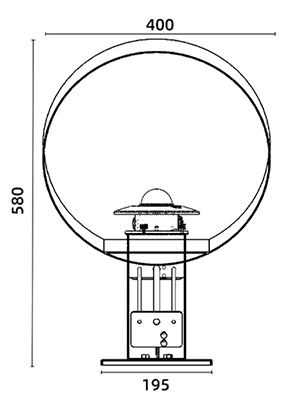

Dimension (Unit: mm)
