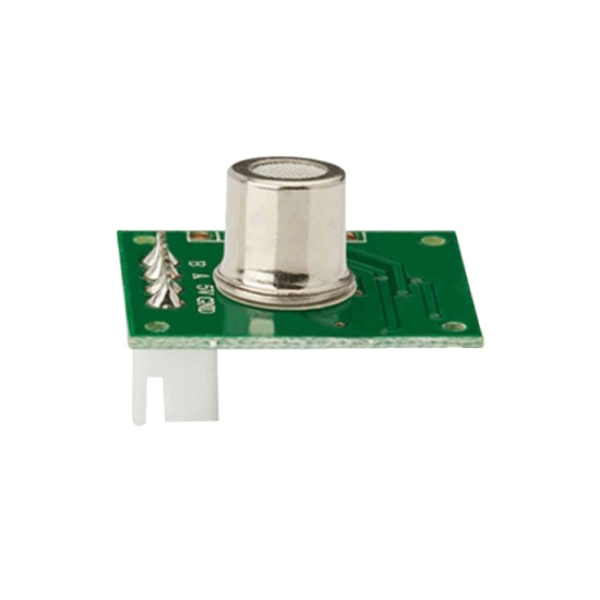

Smoke Sensor Module with TTL, Pin/Terminal

Designed for propane and smoke detection, this high-performance smoke sensor module offers a choice of terminal/pin connectors and provides a standard TTL-level signal output, making it easy and quick to integrate into various electronic projects. The sensor module is compact and lightweight, consumes low power of ≤60mA, and is powered by 5V DC. Built-in protection resistors ensure safe operation.

Feature

• The smoke sensor module utilizes advanced chip-type thick-film semiconductor gas sensors.
• The smoke sensor is highly sensitive to smoke, propane, and other gases.
• The module has undergone aging, commissioning, calibration, and other adjustments to ensure excellent consistency and high sensitivity.
• The smoke sensor module is widely suitable for home and industrial smoke alarms, as well as portable smoke detection devices.

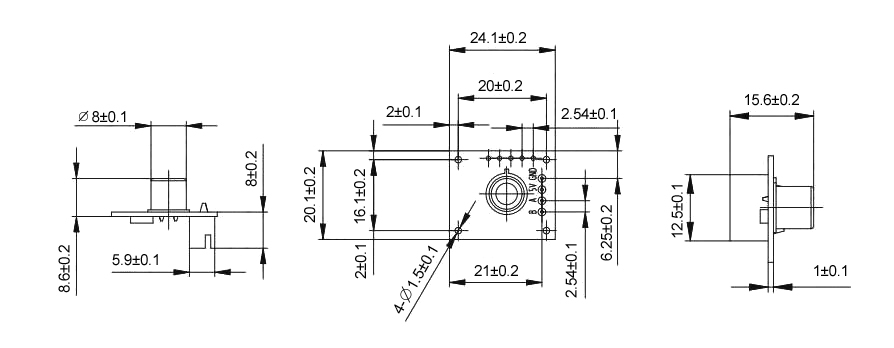

Dimension (unit: mm)

Application Diagram

Precautions

• Avoid contact of the smoke sensor module with organic solvents (including silicone and other adhesives), paints, chemicals, oils, and high-concentration gases.
• The sensor module should not be subjected to excessive impact or vibration.
• The module must be preheated for at least 5 minutes before initial power-up.
• Do not use this module in systems involving personal safety.
• Do not install the module in environments with strong airflow.
• Do not expose the gas module to high-concentration organic gases for extended periods.
• Strictly follow the specified power supply voltage when supplying power to the module. Voltages exceeding 5.5V can cause irreversible damage to the module.

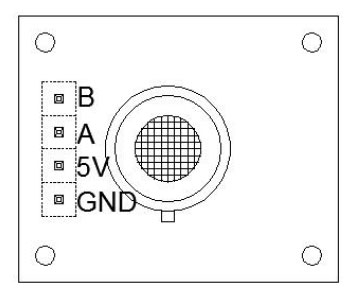

Pin Definition
