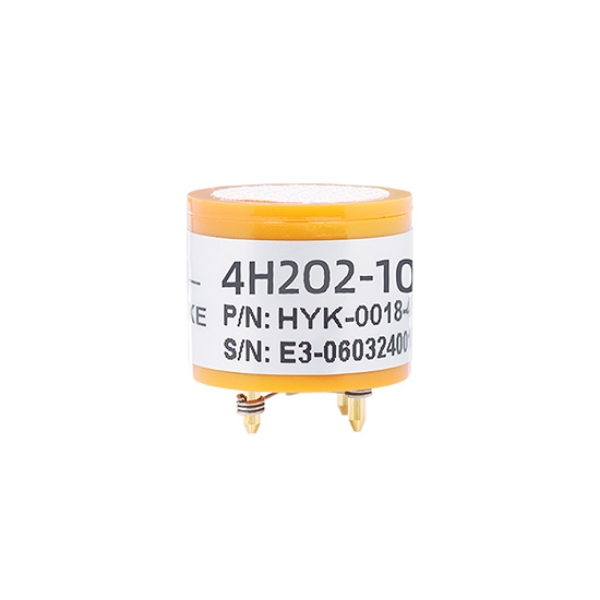

Hydrogen Peroxide (H2O2) Gas Sensor, 0-10/0-50/0-100ppm

SUCH industrial hydrogen peroxide gas sensors detect concentrations ranging from 0-10/0-20/0-50/0-100 ppm. Featuring rapid response (≤60 seconds), exceptional repeatability (<1%), and annual drift below 2%, they operate within temperatures from -20°C to +50°C. These gas sensors are suitable for hydrogen peroxide monitoring in air quality surveillance, sterilization processes, and safety control systems.

Feature

• High-quality industrial-grade hydrogen peroxide sensors deliver exceptionally fast response and recovery times during gas detection.
• The sensors demonstrate strong adaptability to harsh environments, operating reliably in extreme temperatures without impairment.
• This gas sensor delivers exceptional accuracy with a sensitivity of 0.5±0.15μA/ppm and a resolution as low as 0.1ppm.
• It ensures reliable detection across a broad range of 0-100ppm, making it an ideal choice for industrial safety and environmental monitoring.

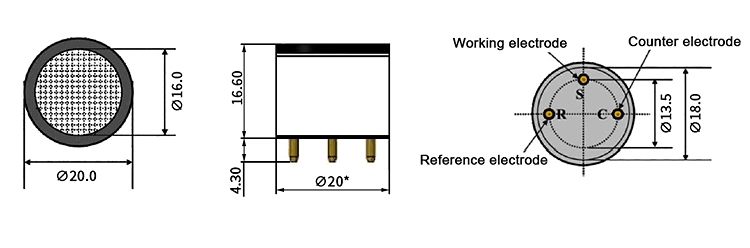

Dimension (unit: mm)

Cross Interference

Note: The cross-sensitivity listed above includes but is not limited to the gases specified. The hydrogen peroxide sensor may respond to other gases. Cross-sensitivity values may vary depending on the sensor production batch and testing environment. This datasheet is for reference only. Calibration using the target gas as the standard gas is required before use. Calibration and measurement accuracy cannot be guaranteed if cross-sensitive gases are used for calibration.

Sensor Curve

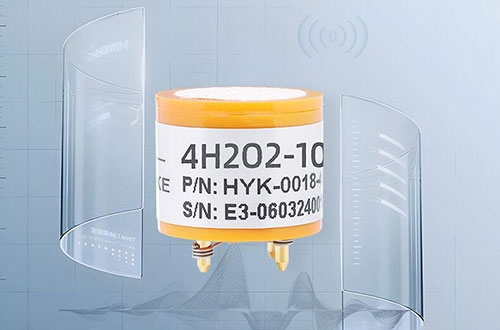

Anti Interference

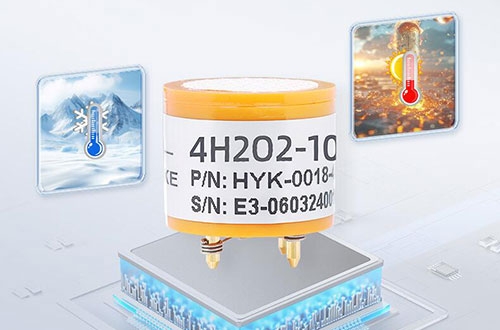

High and Low Tempe Resistance
