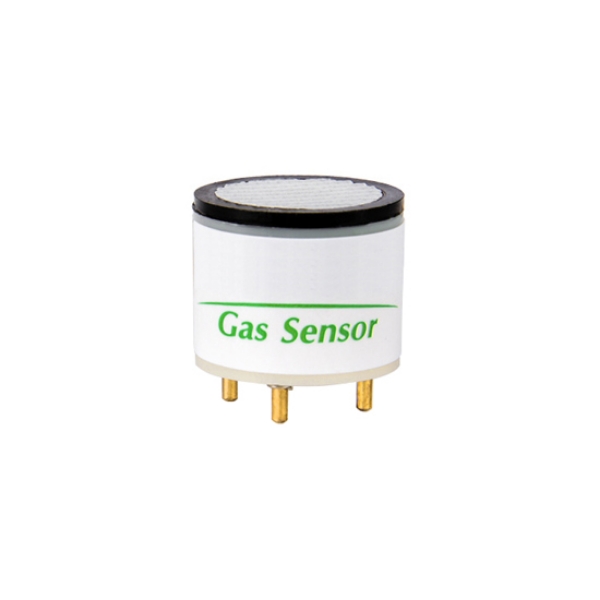

    Picture of Nitrogen Dioxide (NO2) Gas Sensor, 0-20/100/200ppm Picture of Nitrogen Dioxide (NO2) Gas Sensor, 0-20/100/200ppm Picture of Nitrogen Dioxide (NO2) Gas Sensor, 0-20/100/200ppm Picture of Nitrogen Dioxide (NO2) Gas Sensor, 0-20/100/200ppm

    Nitrogen Dioxide (NO2) Gas Sensor, 0-20/100/200ppm

    0 review(s) | Add your review
    SKU: SUCH-GAS-NO2
    $149.56
    ● Detect: Nitric Dioxide (NO2) ● Rang: 0-20/100/200ppm ● Electrochemical three-electrode ● Resolution: 0.1ppm
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Buy a reliable Nitrogen dioxide sensor featuring long-term stability and repeatability. Utilizing an electrochemical three-electrode detection principle, it offers flexible measurement ranges selectable from 0-20ppm, 0-100ppm, 0-200ppm. The module outputs TTL/RS485 signals, enabling fast and precise detection of NO₂ concentrations in the air.

    Feature

    • The nitrogen dioxide gas sensor boasts exceptional sensitivity, enabling precise detection at low concentrations.
    • Utilizing advanced electrochemical principles, the sensor delivers rapid response times, ensuring immediate signal capture during air quality changes or industrial leaks, providing reliable safeguards for environmental monitoring and personnel safety.
    • Widely deployed in environmental monitoring stations, transportation tunnels, laboratories, industrial emission sources, and other applications.
    • The NO₂ sensor supports multiple signal output formats, facilitating seamless integration with monitoring systems or IoT platforms.

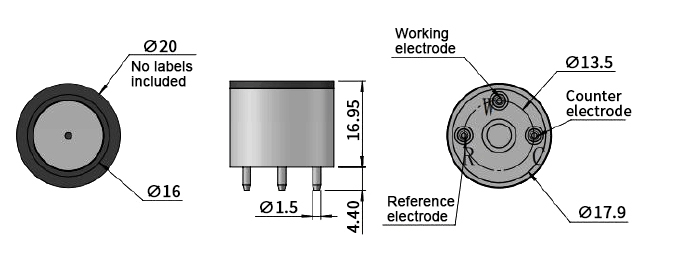

    Dimension (unit: mm)

    NO2 gas sensor dimension

    Cross Interference

    Interference Gas Gas Concentration Used (ppm) Displayed Value (ppm NO₂)
    CO 400 0
    SO₂ 20 0
    H₂S 25 0
    Cl₂ 20 -10
    NO 50 0
    C₂H₄ 20 0

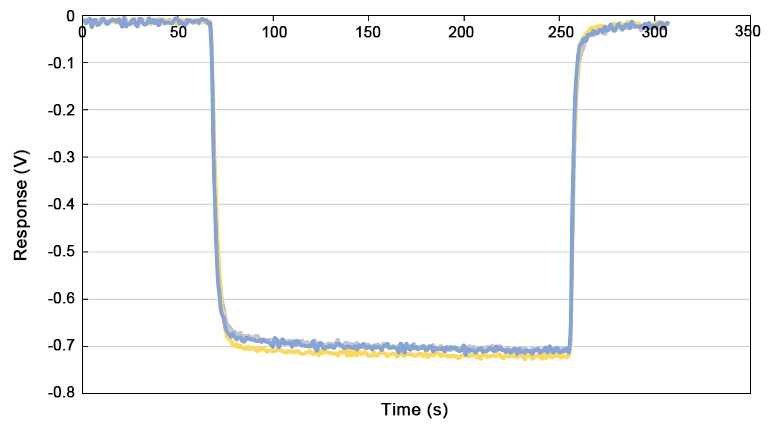

    Sensitivity Response Recovery Curve

    NO2 gas sensor sensitivity response recovery curve

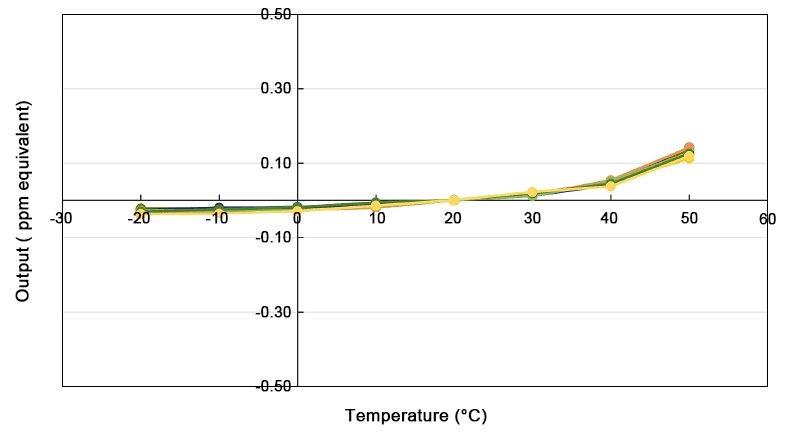

    Sensitivity Temperature Dependency Curve

    NO2 gas sensor sensitivity tempe dependence curve

    Specs

    Range Select

    Module Output TTL, RS485
    Detection Range 0-20ppm 0-100ppm 0-200ppm
    Resolution 0.1ppm 1ppm 1ppm


    Universal Specs

    Detection Principle Electrochemical three-electrode
    Detected Gas NO2 (Nitrogen Dioxide)
    Detection Range 0-20ppm, 0-100ppm, 0-200ppm
    Maximum Load Concentration 200ppm
    Sensitivity -600 ± 150 nA/ppm
    Zero Drift 0-1ppm
    Resolution 0.5ppm (non-module)
    Response Time <30s
    Bias Voltage 0 mV
    Communication Interface RS485, TTL (optional)
    Load Resistance 5~30Ω
    Temperature Range -30°C ~50°C
    Humidity Range 15%~90% RH (Non-condensing)
    Repeatability 2% output signal
    Long-term Stability <2% signal/month
    Linearity Linear
    Operating Pressure 90 to 110 kPa
    Service Life 2 years
    Application
    NO2 gas sensor of environmental monitoring

    Environmental Monitoring

    NO2 gas sensor of industrial robots

    Industrial Robots

    NO2 gas sensor of vehicle emissions

    Vehicle Emissions

    FAQ
    ❯

    Nitrogen dioxide gas sensors detect the concentration of NO₂ in the air. NO₂ is a common atmospheric pollutant primarily originating from combustion emissions and industrial production. Prolonged inhalation can harm the respiratory system, necessitating real-time monitoring.

    ❯

    Common NO₂ sensors employ either electrochemical or optical principles. Electrochemical sensors offer high sensitivity and fast response, making them suitable for portable devices. Optical detection provides excellent stability, ideal for fixed, long-term monitoring.

    ❯

    Yes. To maintain accuracy, calibration is recommended every 6-12 months based on the operating environment. For harsh conditions or critical monitoring points, calibration intervals should be shorter.
