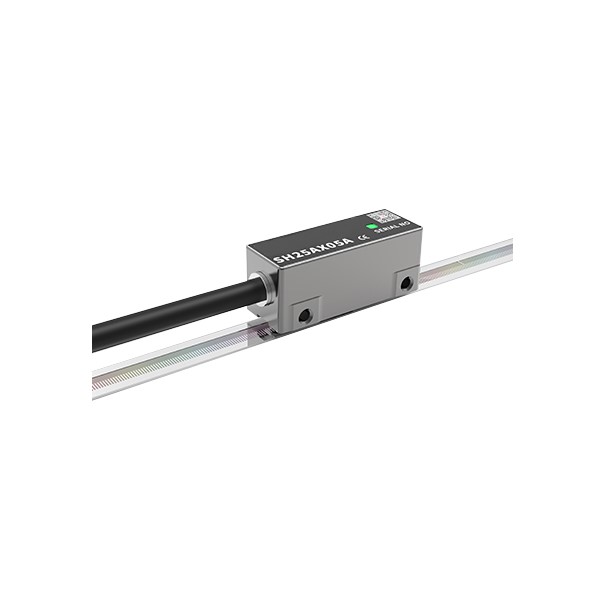

Optical Linear Encoder with 9-pin Connector, ABZ/BISS, 0.5/1μm

Cost-effective optical linear encoder with a 9-pin D-sub connector is available for sale. The SUCH optical incremental linear encoder offers optional ABZ differential output/BISS high-speed protocol communication, selectable accuracy of 0.5μm/1μm, an effective detection length of 50,000mm, and can operate at temperatures from 0℃ to +65℃, meeting high-precision position feedback requirements.

Feature

• Incremental linear encoders offer precise and efficient positioning, high resolution, fast response, stability, reliability, and strong adaptability to various operating conditions.
• Control supports ABZ differential output and BISS high-speed protocol communication, providing stable and interference-resistant signals and enabling rapid integration with various industrial control systems.
• The long effective detection length makes it suitable for large-scale measurement and detection, meeting the needs of long-stroke linear displacement detection scenarios, and adaptable to large equipment and automated production lines.

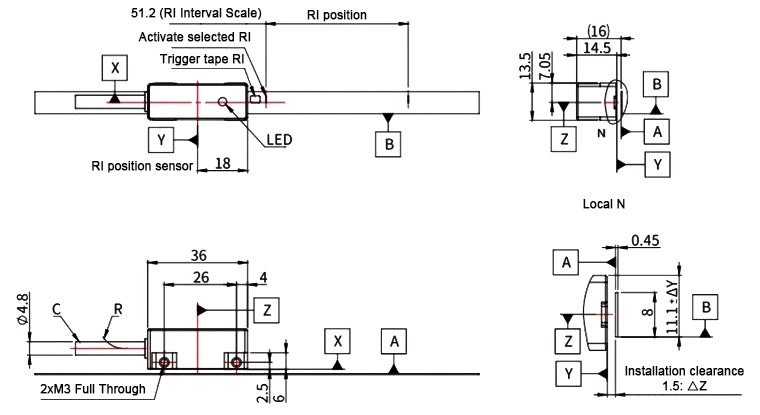

Dimension (Unit:mm)

RI=reference zero position
C=cable R=bending radius: fixed R>10mm; movable R>20mm
LED=integrated RGB-LED installation control indicator
1. The green light is on when the reading head receives 80% of the signal, otherwise the red light is on;
2. When the reading head senses the zero position, the green light flashes once.

Allowable position deviation between the reading head and the reference surface A-B of the grating scale.
ΔZ=±0.2mm (gap tolerance)
ΔY=±0.5mm (offset)
∠Z = ±1.00mrad or ±0.06° (deflection angle)
∠Y = ±3.50mrad or ±0.20° (pitch angle)
∠X = ±4.00mrad or ±0.23° (roll angle)

Wiring
