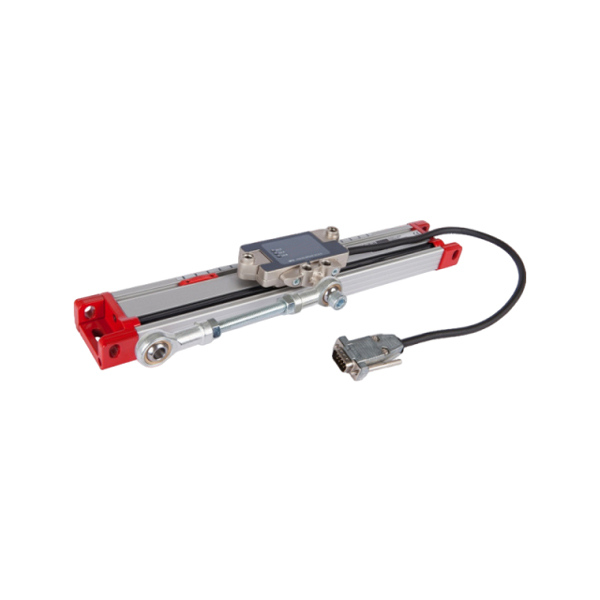

    Incremental Linear Scale Encoder for Press Brake, 5V/8~24V

    0 review(s) | Add your review
    SKU: SUCH-LE-MPS
    $450.46
    ● Resolution 5μm ● Protection rating IP65 ● Supply voltage 5V DC/9~24V DC ● TTL Linedriver/Push-pull/HLD Linedriver output optional
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Buy an incremental linear scale encoder for press brakes. The SUCH non-contact incremental linear encoder features an LCD display, an anodized aluminum housing, and can be used in temperatures ranging from -20°C to +80°C. The incremental linear scale encoder offers three output options, with a supply voltage of 5V DC/9~24V DC and an IP65 protection rating, making it suitable for use in industrial environments.

    Features

    • It adopts high-precision guide wheel bearings, ensuring smooth movement and accurate measurement.
    • The stainless steel cover strip protects the measuring magnetic strip, and it has an IP65 protection rating for waterproofing and dustproofing.
    • The incremental linear encoder features an adjustable reference point and a convenient LED display.

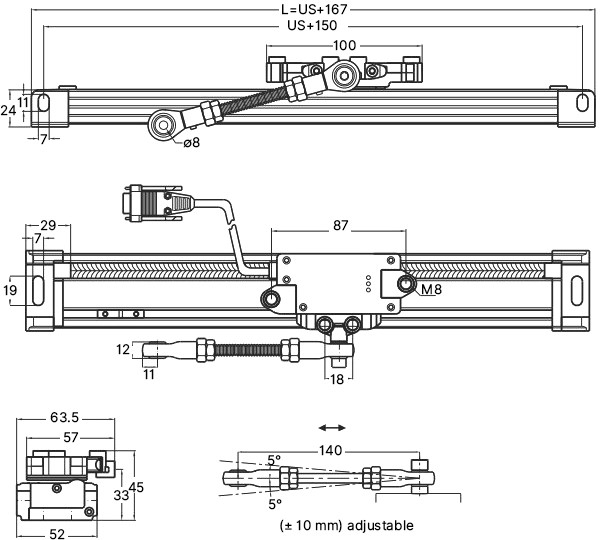

    Dimension (Unit:mm)

    Linear scale encoder size

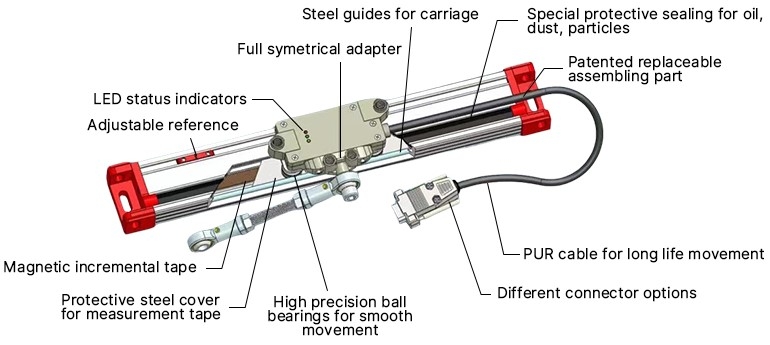

    Details

    Linear scale encoder details

    Specs
    Measurement Method Magnetic Incremental Non-Contact
    Measuring Stroke 150~2000mm (Please contact us for specific lengths)
    Resolution 5μm (Please contact us for other resolutions)
    Repeatability ±5μm
    Accuracy ±15μm
    Output Channels A, A- B, B- C, C-
    Output Method TTL Linedriver/Push-pull/HTL Linedriver
    Supply Voltage 5V DC/8~24V DC
    Power Consumption (No Load) <40mA (24V DC)
    Electrical Connection 1m cable with D89 connector
    Maximum Speed <3m/s
    Housing Material Anodized Aluminum
    Protection Rating IP65
    Operating Temperature -20℃~+80℃
    Storage Temperature -30℃~+90℃
    Application
    Linear encoder for 3d printing machine



    3D Printing Machine

    Linear encoder for cnc machine



    CNC Machine

    Linear encoder for robot



    Robot

    FAQ
    ❯

    An incremental linear scale encoder is a device that measures linear position and displacement by generating pulse signals as the sensor moves along a scale.

    ❯

    Incremental linear scale encoders provide precise, real-time position feedback, enabling accurate motion control, speed tracking, and error reduction in automated systems.

    ❯

    Maintenance involves ensuring proper alignment, cleaning the scale surface, and regularly inspecting wiring and connectors for wear or damage.
