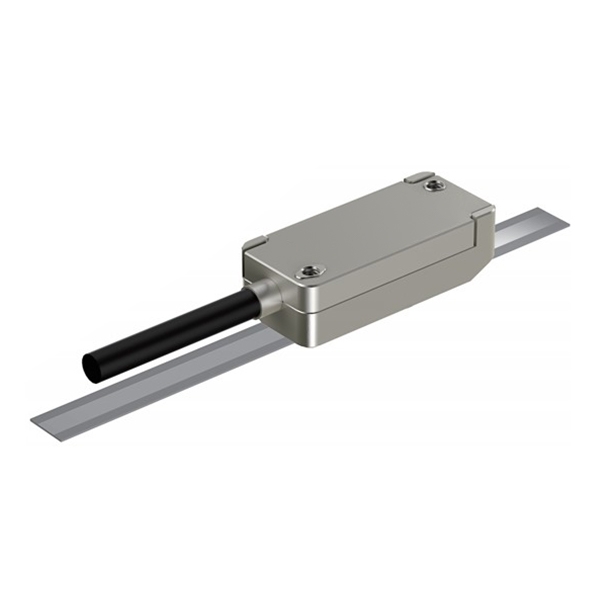

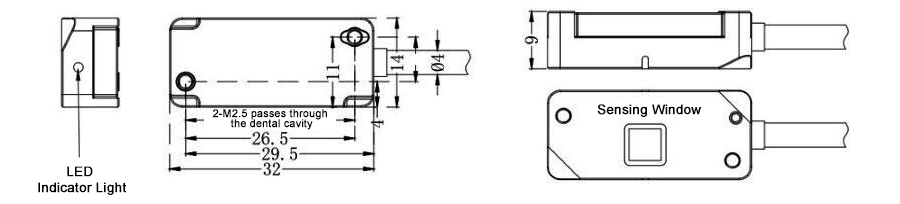

Contactless Incremental Linear Encoder, 0.1/0.5/1μm

A linear encoder works by converting the linear motion of an object into an electrical signal. It typically consists of a scale and a read head. As the read head moves along the scale, it detects changes in the pattern (optical, magnetic, or capacitive) and generates a signal. These signals are processed by a controller to determine the object's position, distance traveled, and speed.

To test a linear encoder, first check that the power supply and wiring connections are correct. Then, move the read head and observe the output signal using a multimeter, oscilloscope, or encoder tester to see if it changes normally. If the signal is stable and responds to motion, the encoder is working correctly.

The primary application of a linear encoder is to measure precise linear position and displacement. Linear encoders provide accurate feedback to control systems, enabling machines to perform precise positioning, motion control, and automated operations, which is crucial for high-precision manufacturing equipment.
