High Resolution Magnetic Incremental Linear Encoder, 1μm

Name: High Resolution Magnetic Incremental Linear Encoder, 1μm
Brand: Such.com
SKU: SUCH-LE-LTD
Price: 200.92 USD
Availability: InStock

0 review(s) | Add your review

SKU: SUCH-LE-LTD

$200.92

● Resolution 1μm ● Repetition accuracy +2μm ● Supply voltage 5V ● Speed 4m/s

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

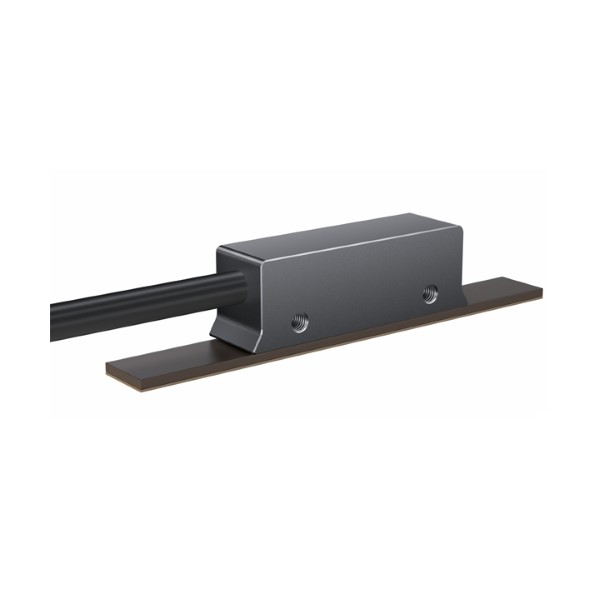

High-resolution magnetic incremental linear encoder available for sale online at a good price. This SUCH incremental magnetic linear encoder features LED status indicators and utilizes the magnetic force and reluctance of magnetic strips for measurement. With a resolution of 1μm, a magnetic stripe spacing of 2+2mm, a power supply voltage of 5V, and an output frequency of 1000kHz, the incremental linear encode can be applied to mechanical fields such as semiconductors and CNC machine tools.

Features

Linear encoders offer high system accuracy, high repeatability, and high resolution.
Magnetic incremental encoders feature intelligent error indicator lights that display the encoder's operating status.
It adopts high-quality connecting wires and non-contact measurement, and has the characteristics of dustproof, wear-resistant and impact-resistant.
High clearance tolerance, high protection level, resistant to oil, dust, lubricant and other contaminants.

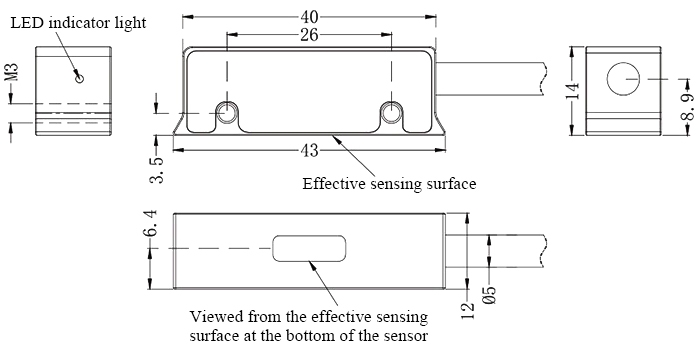

Dimension (Unit:mm)

High resolution magnetic encoder size

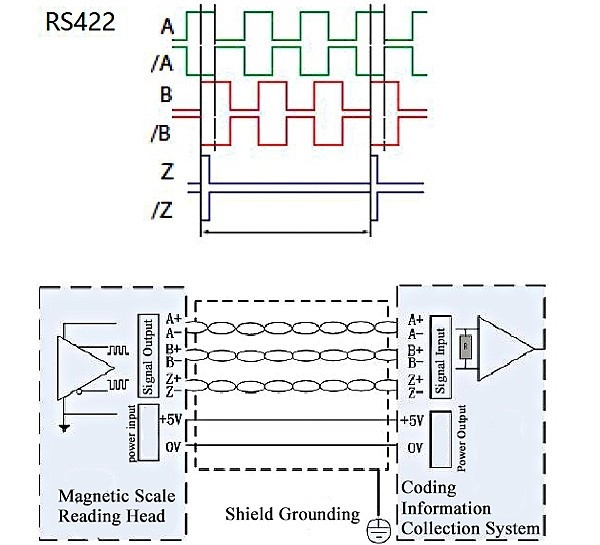

Signal Output Diagram

High resolution magnetic encoder output signal

Specs

Supply Voltage	5V +/-5%
Magnetic Spacing	2+2mm
Resolution	1μm
Repetition Accuracy	+2μm
Output Frequency	1000 KHz
Speed	4m/s
Cable	8-core shielded wire
Wiring Method	Direct lead output
Output Form	RS422
LED Status Indication	Red/Green
Electric Current	Less than 50 mA
Protection Level	IP67
Operating Temperature	-20℃~70℃
Storage Temperature	-20℃~80℃
Customizable Parameters	Resolution, output frequency, counting direction, cable length (≤ 15m)

Application

3D Printing Machine

CNC Machine

Robot
