UVA/UVC Sensor Probe for LED/Germicidal Lamps

UVA/UVC sensor probe for LED/germicidal lamps is an online smart digital sensor designed for real-time monitoring of ultraviolet power and energy in UV LED and germicidal lamp applications. SUCH ultraviolet sensor features a wide power measurement range of 0-20000 µW/cm² with a spectral response of 315-400 nm and supports stable RS485 communication via the MODBUS protocol for direct connection to PLCs, HMIs, and PCs. With configurable network addressing, multiple probes can be integrated into multi-point monitoring systems. Its compact, display-free probe design enables easy installation in space-limited environments while allowing flexible data processing through external controllers or software platforms.

Feature

• Direct Connection to PLC / HMI / PC: UVA/UVC sensor probe designed for seamless integration, the sensor probe can be directly connected to PLCs, human–machine interfaces, and computers for real-time data acquisition and control.
• Real-Time UV Power and Energy Monitoring: Enables continuous monitoring of ultraviolet power and accumulated energy, supporting precise process control and performance evaluation.
• RS485 Communication Interface: Equipped with an RS485 interface and supports the standard MODBUS protocol for stable, long-distance, and reliable industrial communication.
• Flexible Network Configuration: Probe address and communication parameters can be configured, allowing multiple probes to be networked together for multi-point monitoring systems.
• Compact and Easy Installation: Features a small, lightweight probe design that simplifies installation, especially in space-limited or integrated equipment environments.
• External Data Reading Design: The intelligent probe does not include a display module; measurement data is read and processed through external controllers or software systems, enabling flexible system customization.

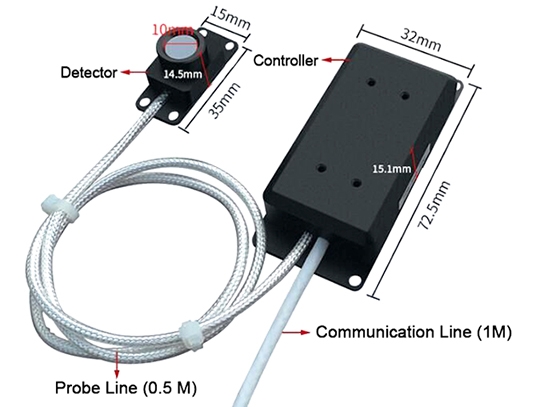

LS129-UVALED/LS129-UVA Size

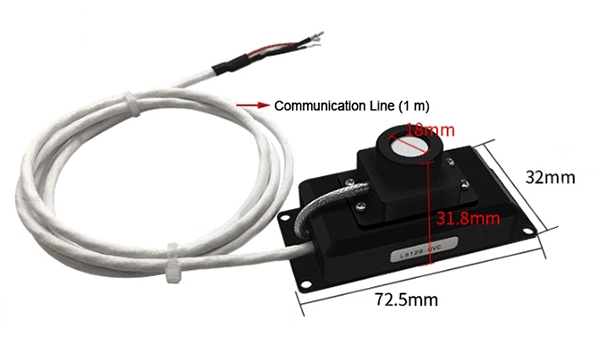

LS129-UVC Size
