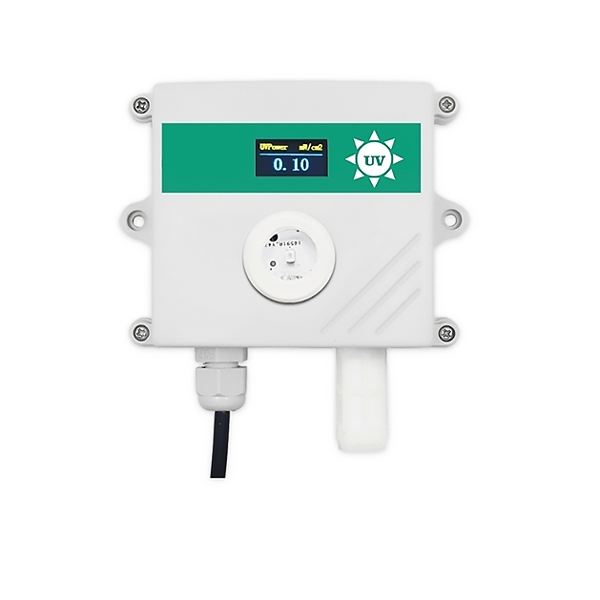

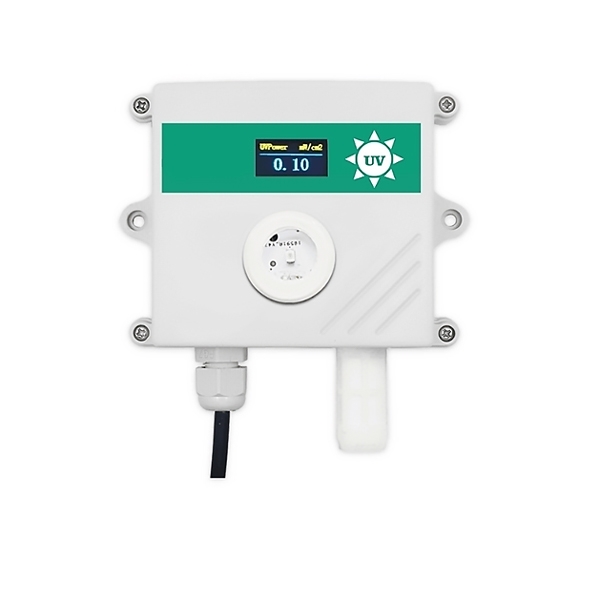

Ultraviolet Sensor, RS485/4-20mA/0-5V/0-10V

Ultraviolet sensor is a compact and reliable solution for industrial UV radiation monitoring. It measures ultraviolet intensity within the 240-370 nm wavelength range and supports multiple signal outputs for easy system integration. Powered by DC 10-30 V, the SUCH UV sensor offers selectable measurement ranges of 0-15 mW/cm² or 0-450 μW/cm², combined with high stability, strong anti-interference performance, and a durable protective enclosure for long-term use in harsh environments.

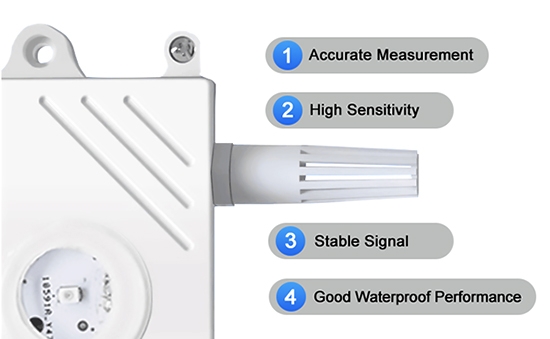

Feature

• Industrial-Grade Microprocessor & Sensor Design: Ultraviolet sensor equipped with a high-quality industrial-grade microprocessor and a high-precision ultraviolet sensor to ensure excellent reliability, stable performance, and accurate measurement results.
• High-Protection Enclosure for Harsh Environments: Features a high-protection-level housing with a dense wall-mounted waterproof structure, allowing stable operation in demanding and harsh on-site environments.
• High-Transparency Optical Material: Uses premium optical transmission materials with over 98% UV transmittance, enabling efficient light penetration and precise ultraviolet intensity measurement.
• Wide UV Detection Range: Covers a sensitive ultraviolet detection range of 240–370 nm, ensuring accurate monitoring of UV radiation intensity across critical wavelengths.
• High-Sensitivity Optical Probe: Integrates a high-sensitivity optical sensing probe with stable signal output, wide measurement range, good linearity, strong waterproof performance, and long transmission distance for easy installation and reliable operation.
• Strong Anti-Interference Performance: Designed with optimized circuitry and signal processing to effectively resist external electromagnetic interference, ensuring stable and consistent data output.

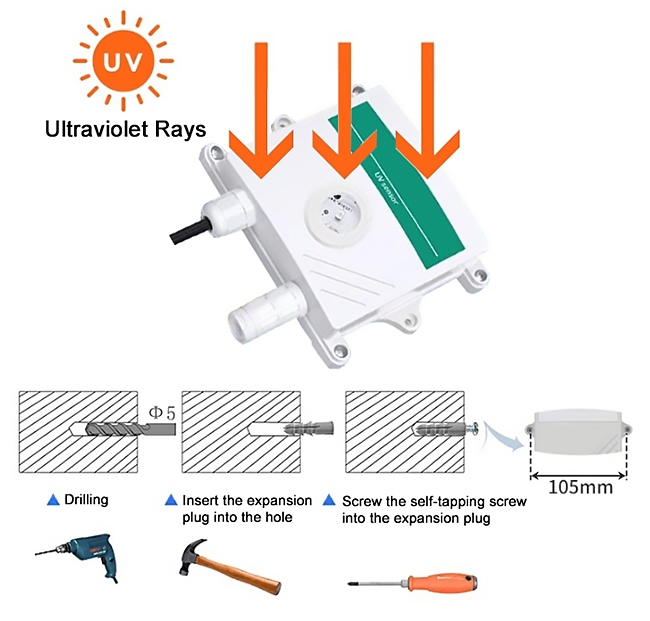

Installation Method
