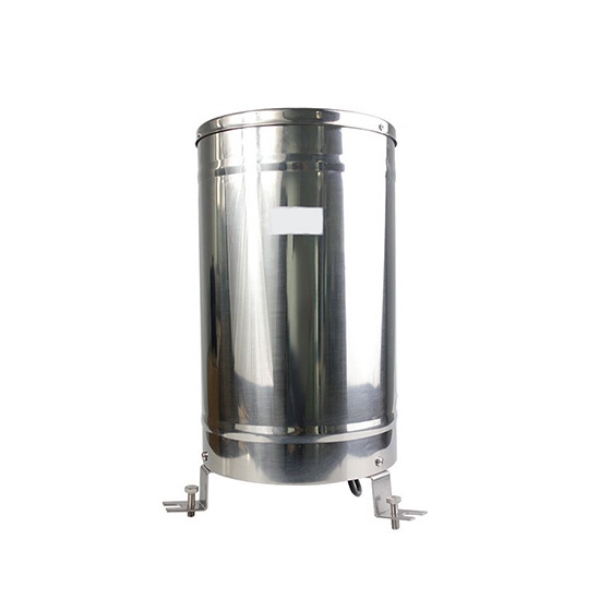

    Picture of Smart Tipping Bucket Rainfall Sensor, Stainless Steel Picture of Smart Tipping Bucket Rainfall Sensor, Stainless Steel Picture of Smart Tipping Bucket Rainfall Sensor, Stainless Steel

    Smart Tipping Bucket Rainfall Sensor, Stainless Steel

    1 review(s) | Add your review
    SKU: SUCH-RS-YXM
    $427.93
    ● Supports reed switch pulses or RS485 output ● 0.2 mm resolution for accurate rainfall recording ● Handles up to 4 mm/min rainfall intensity ● 200 mm collection port with 40°~45° funnel angle
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    SUCH smart tipping bucket rain sensor is made of high-strength stainless steel, suitable for complex outdoor environments, with good corrosion resistance and long-term stability. Its measurement resolution is 0.2mm, supports a maximum rainfall intensity of 4mm/min, and the output mode can be selected as reed switch pulses or RS485 communication interface. It is widely used in meteorology, water conservancy, agriculture and environmental monitoring. SUCH tipping bucket rain sensor can realize the accurate measurement of real-time rainfall and quickly output data through high-frequency pulses.

    Feature

    • Tipping bucket rain sensor supports pulse output and RS485 communication interface (optional).
    • Smart rain sensor adopts a polycarbonate hole base, which is sturdy in structure, easy to install.
    • The funnel adopts a mesh design to effectively prevent leaves and debris from blocking the rainwater channel.
    • The diameter of the rain receiving port is Φ200mm, with an inclination angle of 40°~45°, which meets the requirements of standard specifications.
    • The bottom is equipped with a horizontal adjustment bubble, which is convenient for users to quickly adjust the installation angle.

    Dimension (Unit: mm)

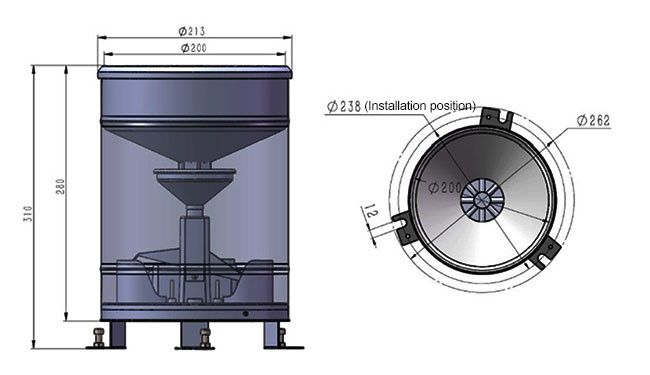

    Smart tipping bucket rainfall sensor dimension

    Appearance Details

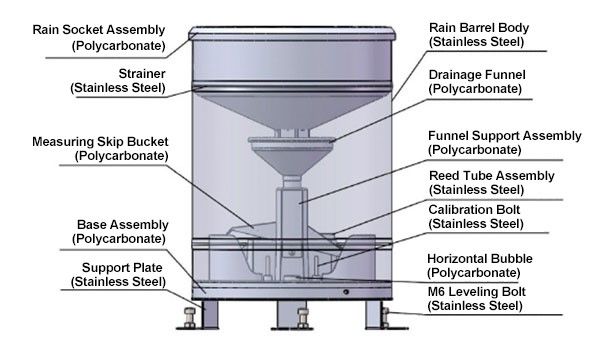

    Smart tipping bucket rainfall sensor details

    Specs
    Output Reed switch pulses, RS485 (optional)
    Measured Rainfall Intensity Max: 4mm/min
    Allow Rainfall Intensity Max: 8mm/min
    Resolution 0.2mm
    Accuracy ±4% (2mm/min)
    Maximum Load Voltage 30VDC (pulse output)
    Maximum Load Current 20mA (pulse output)
    Operating Temperature 0~+50°C (no freeze)
    Main Material Collector: 304SS; Tipping bucket: Stainless Steel
    Tipping Bucket Single
    Heating Heating power: approx. 1000W
    Net Weight 3.3kg
    Application
    Water supply system

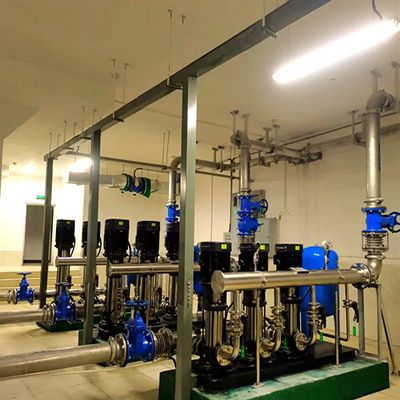

    Water Supply System

    Agrometeorological research

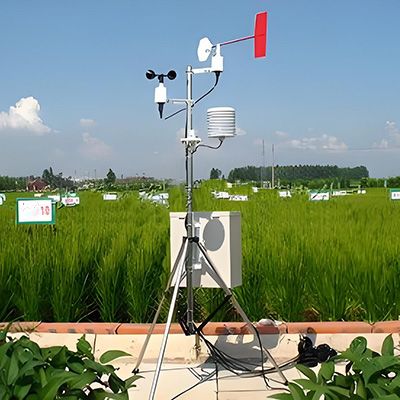

    Agrometeorological Research

    Hydrological Monitoring

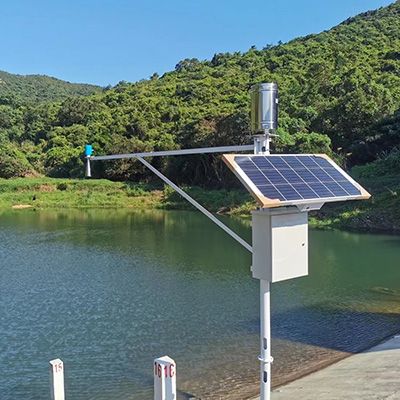

    Hydrological Monitoring

    FAQ
    ❯

    The maximum supported rainfall intensity is 4mm/min, which can cope with precipitation monitoring in most medium to heavy rain weather conditions.

    ❯

    The device adopts a mesh anti-blocking design, which can effectively prevent leaves, dust and other debris from entering the funnel to ensure smooth and accurate measurement.

    ❯

    It is recommended to clean the funnel and the tipping bucket regularly to check whether there is any debris blocking; the RS485 version can regularly verify the data accuracy through the platform. The overall maintenance workload is low and the structure is sturdy and durable.

    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Kevin Sinclair | 6/17/2026 3:08 AM
    Smart rainfall sensor works well on our roof rig
    Needed a rugged smart rainfall sensor for an urban stormwater runoff testing project on a warehouse roof. The wide 200mm funnel mouth catches water perfectly even during windy side-rain. You do have to check inside the filter mesh every couple of months to clear out dead leaves or stray bugs, but that's just normal outdoor maintenance.
