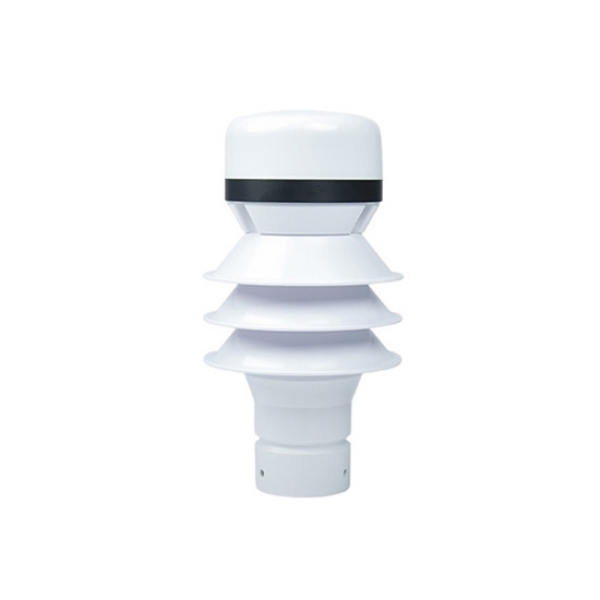

Radar Rain Gauge Sensor, Weather Instrument, 0-200mm/h

SUCH accurate radar rain sensor is a high-precision weather monitoring instrument that uses 24GHZ Doppler radar wave technology to monitor rainfall intensity, with a measurement range of 0-200mm/h and a resolution of 0.1mm. It is suitable for various meteorological, hydrological, agricultural and smart city scenarios. It supports RS485/RS232 communication interface, with a power supply voltage of 12-24VDC, easy installation, strong adaptability, maintenance-free and low energy consumption. Radar rain sensor is commonly used in applications such as rainfall detection in weather stations and smart city systems.

Feature

• Uses 24GHz Doppler radar wave technology to measure falling speed and particle size of precipitation.
• Accurately identifies different types of precipitation such as rain, snow, and hail, and determines their intensity.
• More sensitive than traditional mechanical rain gauges; quickly detects start and end of rainfall.
• Operates reliably under leaf cover or in adverse weather conditions.
• No need for a heating device; functions normally in cold environments.
• Features no moving parts, compact size, ultra-low power consumption, and minimal maintenance requirements.

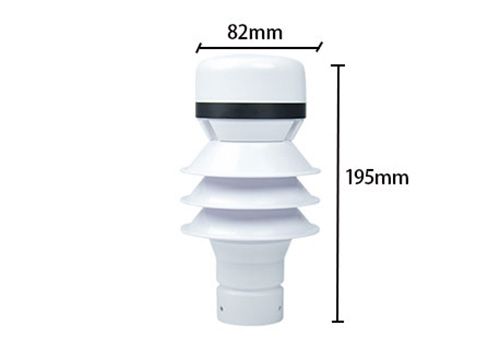

Dimension (Unit: mm)
