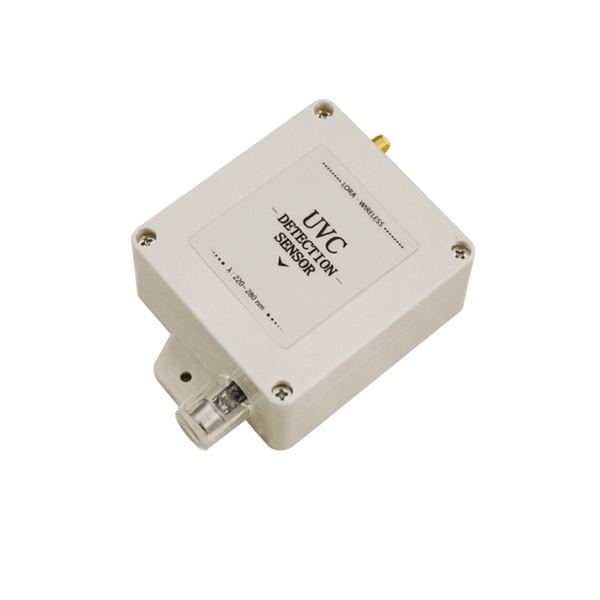

Industrial UVC Sensor for Disinfection Lamps

Industrial UVC sensor for disinfection lamps is designed for reliable ultraviolet intensity monitoring in industrial sterilization applications. It features a built-in high-capacity lithium battery and supports multi-node distributed data collection for flexible deployment and long-term operation with minimal maintenance. The SUCH UV sensor measures UVC intensity within a 0-5 mW/cm2 range, offers a configurable sampling interval from 1 to 60 minutes, operates across a wide temperature range of −40 to +80 °C, and runs on a 3.6 V power supply. Widely used in industrial wastewater treatment and other disinfection environments, it ensures stable and accurate monitoring of UVC lamp performance.

Feature

• Built-In High-Capacity Lithium Battery: UVC sensor equipped with an internal high-capacity lithium battery, ensuring long-term stable operation and reducing maintenance frequency.
• Multi-Node Distributed Data Collection: Supports multi-node distributed acquisition, enabling flexible deployment and wide-area monitoring across multiple sensing points.
• Designed for Industrial UV Disinfection: Primarily used in industrial wastewater treatment UV sterilization systems to monitor ultraviolet disinfection performance.
• Wide Application Coverage: Suitable for wastewater treatment plants, staff canteens, production workshops, river and channel monitoring, and other industrial or municipal environments.
• Optical Trigger Activation: Uses a light-responsive trigger mechanism to enable accurate and reliable UV detection.

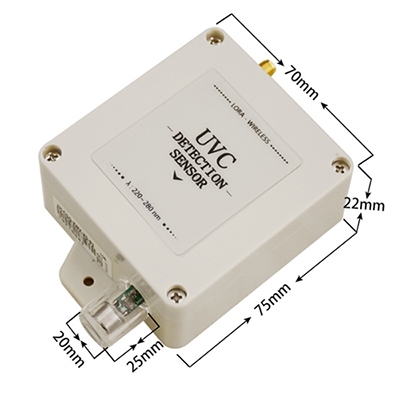

Dimension (Unit: mm)

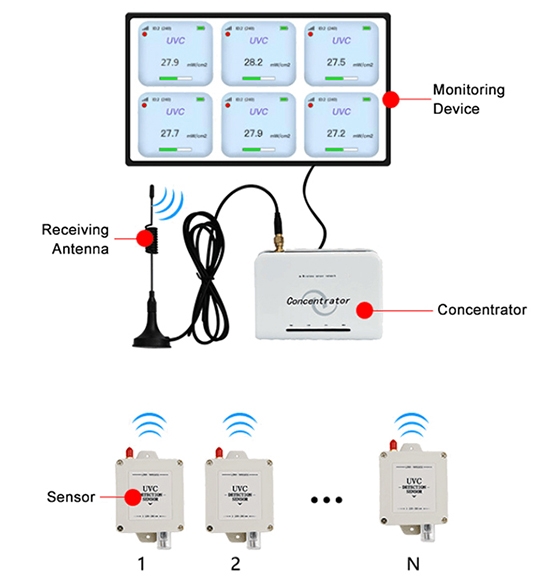

Multi-Node Distributed Data Collection
