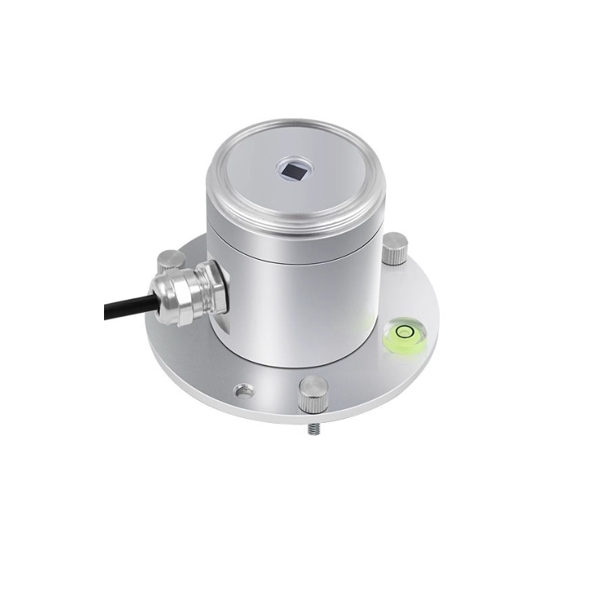

UV Sensor, 290~390nm

UV sensor is designed for reliable ultraviolet radiation monitoring in industrial and environmental applications. It features a highly sensitive integrated probe with fast response and stable signal output, supported by internal waterproof sealing and a four-core shielded cable for strong anti-interference performance and long-distance transmission. SUCH UV sensor measures UV intensity within a 290-390 nm wavelength range and a 0-15 mW/cm² intensity range, provides RS485 output for easy system integration, and operates on a wide DC 10-30 V power supply. A robust metal housing ensures waterproof, corrosion-resistant, and heat-resistant performance, making the ultraviolet sensor suitable for long-term use in harsh field environments.

Feature

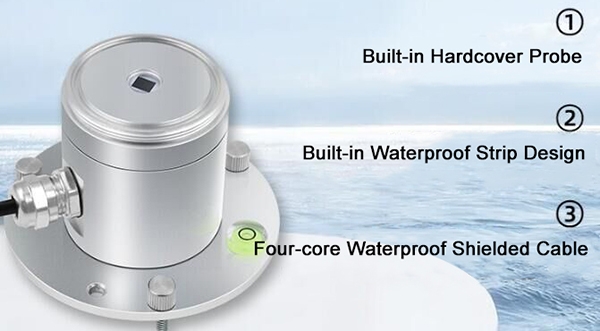

• Highly Sensitive Integrated Probe Design: UV sensor features a built-in precision sensing probe with high sensitivity, fast response, and stable signal output. The internal waterproof sealing structure and four-core waterproof shielded cable ensure reliable performance, strong anti-interference capability, and long-distance signal transmission in humid or harsh environments.
• Shielded Waterproof Cable Design: Uses a four-core waterproof shielded cable to reduce signal interference and support stable, long-distance data transmission.

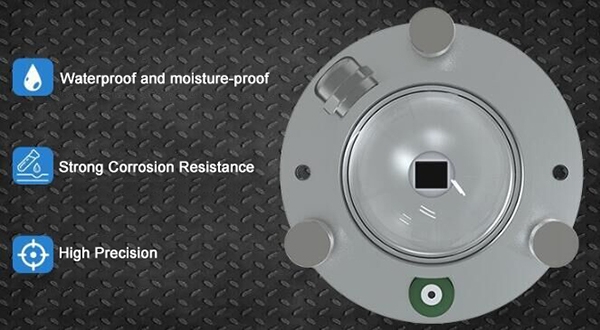

• Robust Metal Housing: Built with a durable metal enclosure that is waterproof, moisture-proof, corrosion-resistant, and heat-resistant, ensuring stable operation in harsh industrial environments.
• Flexible Data Transmission and Monitoring: Supports simplified installation with integrated sensing and communication design, wireless signal transmission, and active data reporting. Real-time measurement data can be accessed through a cloud platform at any time, enabling accurate monitoring and efficient data management.

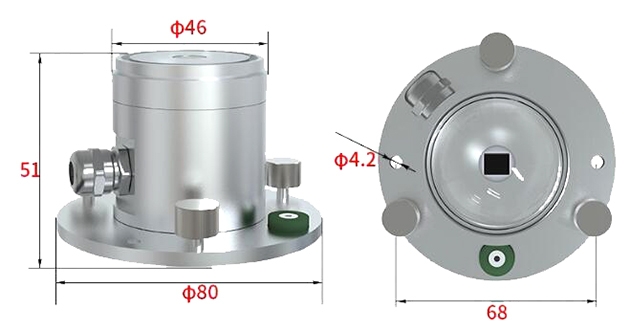

Dimension (Unit: mm)

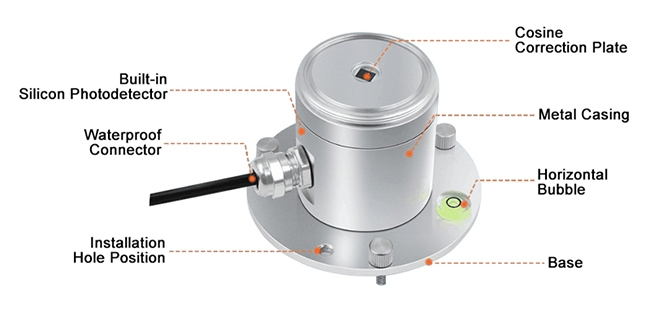

Deatil
