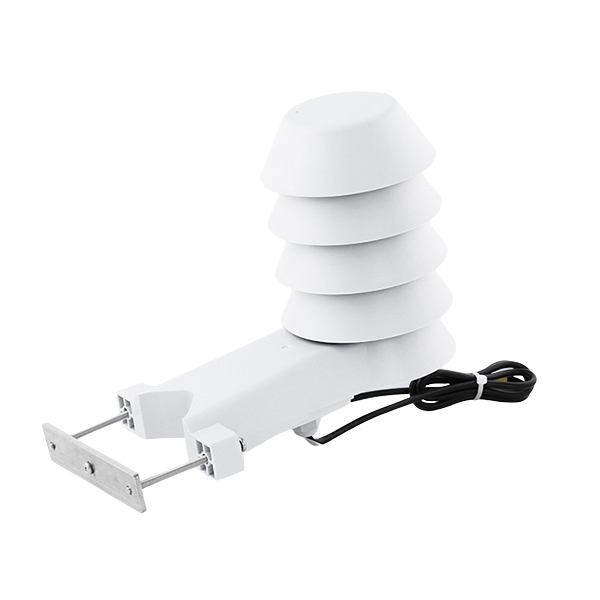

The outside ambient temperature sensor is designed for reliable outdoor temperature monitoring with a wide measurement range of -50°C to 100°C. It offers both 4-20mA and RS485 output options, allowing flexibility for various applications. With 0.25%FS or 0.5%FS accuracy, the SUCH sensor ensures precise measurements in harsh conditions. The housing is made from durable ABA material, providing excellent weather resistance, making it ideal for outdoor use. Powered by 12-36VDC, this sensor is perfect for applications such as weather monitoring and industrial temperature tracking.
Feature
- The sensor housing is made of ABA material, which offers enhanced weather resistance*.
- SUCH sensor features a compact design and excellent build quality, making it ideal for various outdoor temperature monitoring applications.
- It offers both digital and analog signal outputs, providing flexible options for different applications.
Note: *Weather resistance refers to the ability of plastic materials to withstand aging effects caused by exposure to sunlight, temperature fluctuations, wind, rain, and other external conditions, which can lead to discoloration, cracking, chalking, and loss of strength.

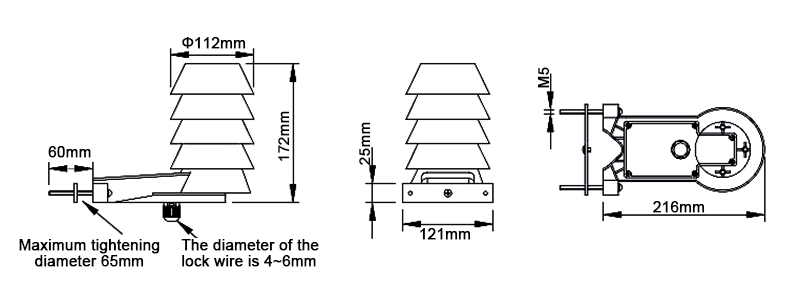

Dimension (Unit:mm)

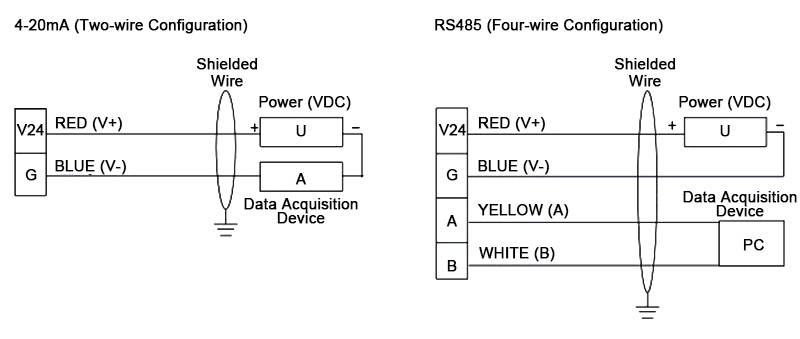

Wiring Diagram
Note: Oval symbol indicates the shield (shielded wire). All grounding points indicated must be properly connected to ground. It is recommended to use shielded twisted-pair signal cables. To prevent ground loops, the shield should be grounded at only one end — insulated and left floating at the transmitter side, and grounded at the control cabinet side.
