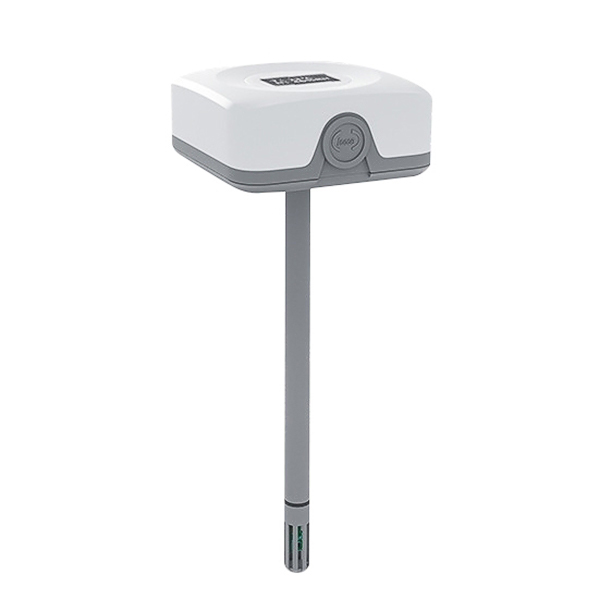

Digital Temperature Sensor, 0-50℃/-40-60℃ to -20-100℃

SKU: SUCH-TS-TH800G
$158.23
● Range: 0-50℃ / -40-60℃ / -40-100℃ / -20-100℃ ● Temperature Sensor Type: Air Duct Type ● Accuracy: ±0.5℃ ● Transmission Output: 4-20mA / 0-10V (Optional)
*
*
🚚 Free shipping
🕒 Delivery date: 6-12 days
🔁 30-day Returns
Overview

SUCH digital temperature sensor is designed for accurate and reliable temperature monitoring across a wide range of environments. This air duct type sensor features a high-precision chip with ±0.5°C accuracy and excellent anti-interference capabilities, making it ideal for use in HVAC systems and industrial applications. Its sensitive probe allows precise temperature detection deep inside ducts, while its internal sensing chip ensures rapid response and stability. Supporting RS485 communication and offering 4-20mA or 0-10V output options, the sensor is versatile and can be easily integrated into various systems, especially those with space constraints.

Feature

Digital temperature sensor detail

  • The sensor uses a high-precision chip with strong anti-interference capability.
  • SUCH sensor features a sensitive probe that can accurately detect temperature deep inside the duct.
  • Designed as an air duct type sensor, it integrates an internal sensing chip for quick response and excellent stability.
  • This temperature sensor supports the RS485 standard communication protocol for reliable data transmission.
  • It is suitable for various measurement environments with strict space requirements.

Dimension (Unit:mm)

Digital temperature sensor dimension

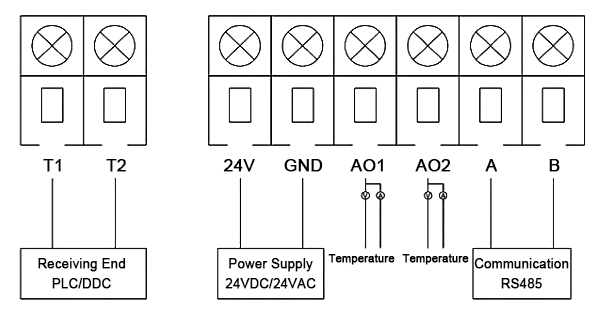

Wiring Diagram

Digital temperature sensor wiring

Specs
Temperature Range Air Duct Type: 0-50℃ / -40-60℃ / -40-100℃ / -20-100℃
Humidity Range 0~100%RH
Accuracy Temperature: ±0.5℃
Humidity: ±3%RH
(Typical Value @25℃)
Display Function LCD Digital Display
Communication Output RS485 Communication
Transmission Output 4-20mA / 0-10V (Optional)
Power Supply 24VDC/AC
Protection Level IP65
Application

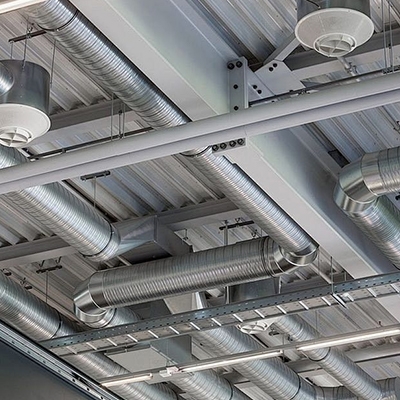

Temperature sensor for fresh air system

Fresh Air System

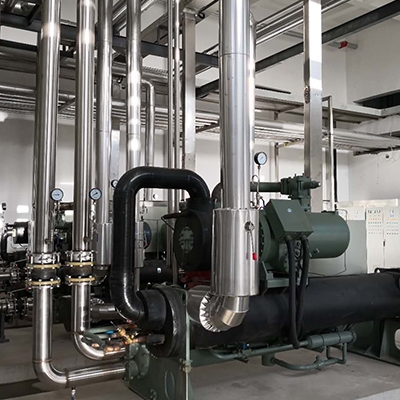

Cold source system

Cold Source System

Heat source system

Heat Source System

FAQ

Air duct type temperature sensors are specifically designed to measure air temperature in HVAC systems and air handling units. They are ideal for accurately monitoring airflow temperatures inside ducts. Their compact size and rapid response time make them perfect for environments where space is limited, and quick temperature adjustments are needed. Additionally, their robust design ensures long-term stability and minimal maintenance.

Digital temperature sensors provide higher accuracy and better reliability compared to analog sensors. They offer precise, noise-resistant readings and are less affected by environmental factors such as electrical interference. Additionally, digital sensors can easily interface with modern control systems and support protocols like RS485 for seamless integration into automated systems.

The RS485 communication protocol enables long-distance, stable data transmission with low power consumption. It supports multiple sensors on a single network, making it ideal for industrial and commercial applications where multiple sensors need to be monitored simultaneously. RS485 is widely used in environments with high electrical noise, ensuring reliable communication over long distances.
