Electronic Tilt Sensor, Explosion-proof, ±90°~180°

SKU: SUCH-TTS-MK700

$276.33

● Measuring Range: Single axis ±180°/ Dual axis ±90° (Optional) ● Measuring Axis: X, Y axis ● Output Signal: RS232 / RS485 / RS422 / TTL / CAN (Optional) ● Protection Rating: IP67

Measuring Range *
Accuracy *
Output Signal *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

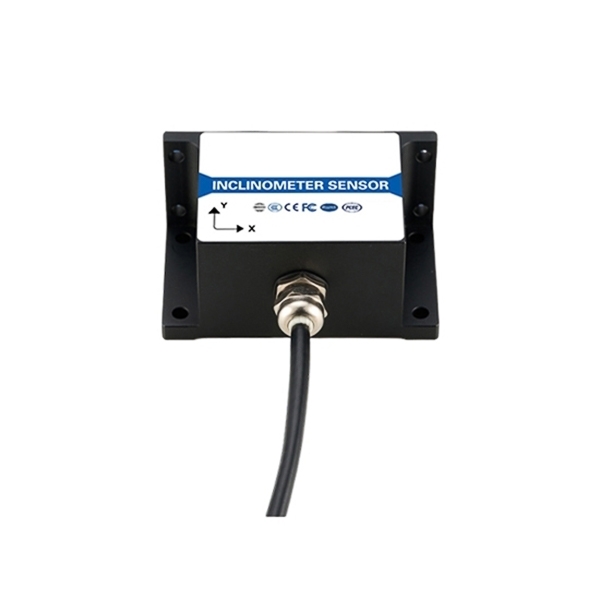

The explosion-proof electronic inclinometer sensor is designed for tilt angle measurement in hazardous and tough environments. Selectable measurement ranges of single-axis ±180° or dual-axis ±90° are provided. And it offers high accuracy options of 0.3°, 0.1°, or 0.01°, and a resolution of up to 0.05°. The SUCH sensor is reliable and accurate for industrial equipment monitoring and other precision applications.

Feature

Multiple Output Signals: Tilt sensor supports various output signal options, including RS485, RS232, TTL, RS422, and CAN, providing flexibility for integration with different systems and applications.
IP67 Protection Rating: This SUCH sensor provides excellent protection against dust and water, ensuring worry-free operation in harsh environments.

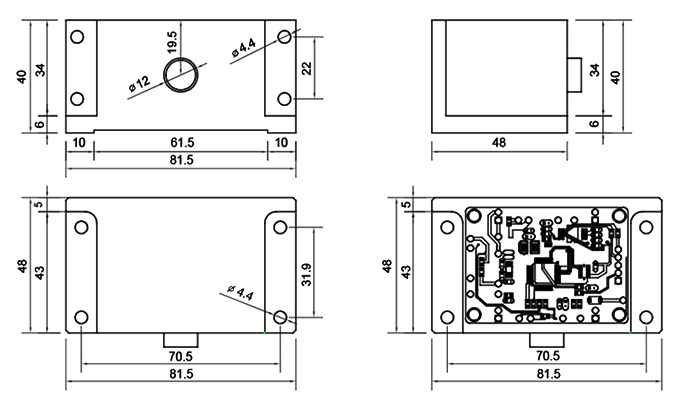

Dimension (Unit:mm)

Electronic tilt sensor dimension

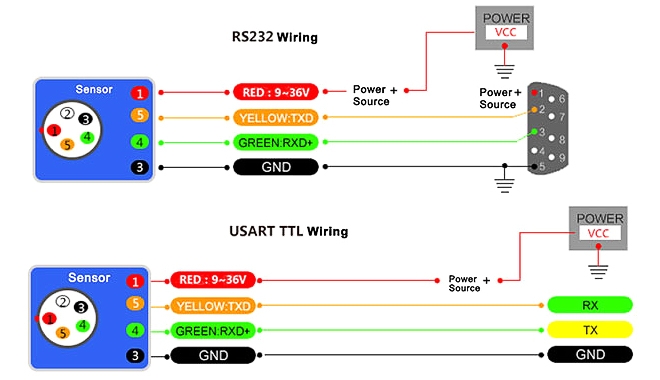

Wiring Diagram

Electronic tilt sensor wiring

RS232/RS485/TTL Line Color Function

Electrical Connection	1	2	3	4	5
Electrical Connection	Red	White	Black	Green	Yellow
RS232	VCC	NC	GND	RXD	TXD
RS485	VCC	NC	GND	(B, D-)	(A, D+)
TTL	VCC	NC	GND	RXD	TXD

RS422 Line Color Function

RS422	1	2	3	4	5	6
	Red	Black	Green	Yellow	White	Brown
	VCC	GND	RXD- (B-)	RXD+ (A+)	TXD- (A+)	TXD- (B-)

Installation

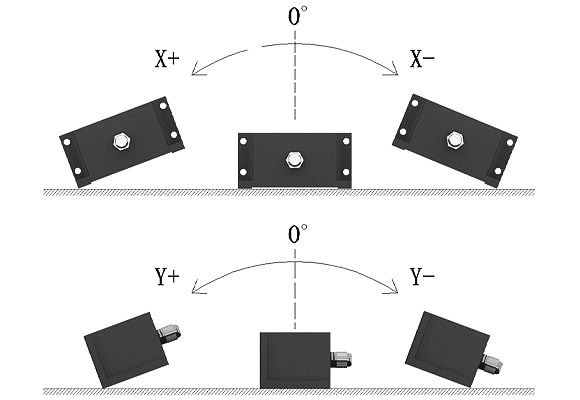

Electronic tilt sensor installation

Please ensure the inclinometer sensor is installed correctly. Improper installation may result in measurement inaccuracies, especially with regard to the "surface" and "line" alignment.
The surface where the inclinometer sensor is mounted and the surface being measured should be securely attached, flat, and stable. If the mounting surface is uneven, it can lead to angle measurement errors.
The axis of the inclinometer sensor should be parallel to the measured axis, and efforts should be made to avoid any angle between the two axes.

Specs

Measuring Range	Single axis ±180°/ 2 axis ±90° (optional)
Accuracy	0.3°	0.1°	0.01° (optional)
Resolution	0.05°	0.01°	0.002°
Output Signal	RS232 / RS485 / RS422 / TTL / CAN (optional)
Measuring Axis	X, Y axis
Frequency Response	DC response 100Hz
Long-term Stability	<0.15°
Zero Temperature Drift	±0.01°/C
Power-on Start-up Time	0.2s
Response Time	0.01s
Auto Output Rate	5Hz output, 15Hz, 35Hz, 50Hz programmable (RS485 not available)
Average Operating Time	≥55000 hours/trip
Shock Resistance	20000g, 0.5ms, 3 times/axis
Vibration Resistance	10g/ms, 10~1000Hz
Insulation Resistance	≥100MΩ
Waterproof Rating	IP67
Supply Voltage	9~36V
Working Current	No load 40mA
Operating Temperature	-40°C~+85°C
Storage Temperature	-55°C~+125°C
Housing Material	Aluminum alloy with matte oxidation
Mounting	Four M4 screws
Cable	Standard with 1.5 meter length, abrasion resistant, oil resistant, wide temperature, shielded cable 6*0.2mm2
Weight	185g (without box)

Application

Oil Drilling

Construction Vehicle

Geological Monitoring

FAQ

Q1: Why choose an explosion-proof tilt sensor? ❯

An explosion-proof tilt sensor is essential for environments where hazardous materials or gases are present. These sensors are designed with special enclosures and components that prevent sparks or electrical faults from igniting flammable substances. By using an explosion-proof tilt sensor, you ensure the safety of your equipment and personnel in high-risk industries such as oil and gas, chemicals, and mining.

Q2: What makes the electronic tilt sensor different from other similar products? ❯

The electronic tilt sensor stands out because it offers precise angle measurement and superior reliability, especially in harsh environments. Unlike mechanical or hydraulic sensors, electronic tilt sensors have no moving parts, making them more durable and maintenance-free. Additionally, some models come with a sensored design that improves control accuracy and smooth performance, which is ideal for critical applications. The electronic tilt sensor also offers faster response times and is often more compact compared to traditional models.

Q3: Can this electronic tilt sensor be used in outdoor areas? ❯

Yes, this tilt sensor is suitable for outdoor use. It is weather-resistant and can handle various outdoor conditions like rain and dust, as long as it is properly installed and protected from extreme elements.
